Reading Lamp Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

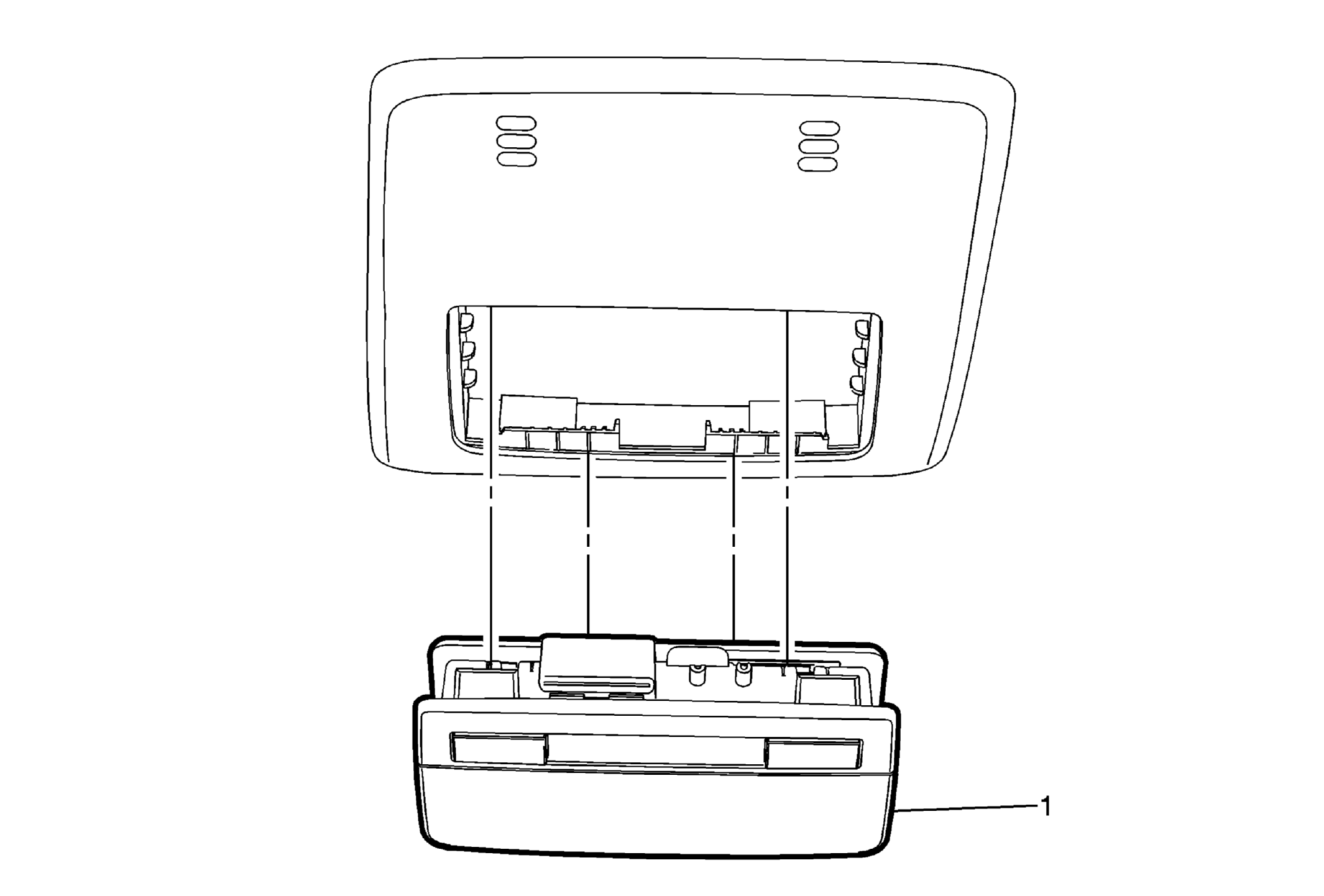

Callout	Component Name
Preliminary Procedure Remove the dome lamp bezel. Refer to Dome Lamp Bezel Replacement .
1	Reading lamp Procedures Release the clips retaining the reading lamp assembly to the bezel. Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedure
Remove the dome lamp bezel. Refer to Dome Lamp Bezel Replacement .

Reading lamp

Procedures

Release the clips retaining the reading lamp assembly to the bezel.
Disconnect the electrical connections.
