Installation Procedure
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors.
Align the steering wheel module fasteners to the steering column fastener holes.

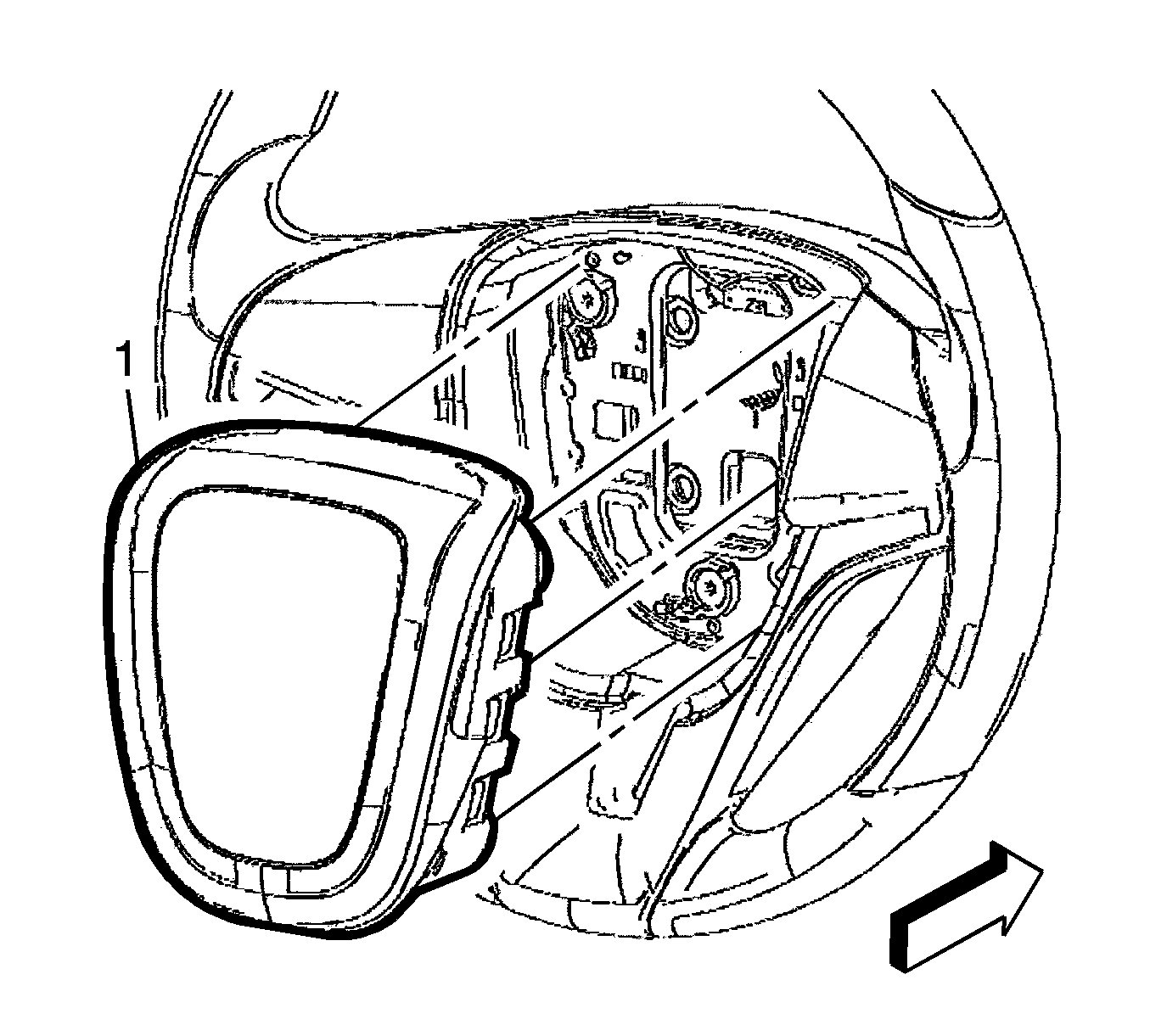

- Push the steering wheel module (1) firmly into the steering column in order to engage the fasteners.
- Enable the SIR system. Refer to SIR Disabling and Enabling .
- Refer to Inflatable Restraint Module Handling and Scrapping .
WARNING:
After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.
