Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

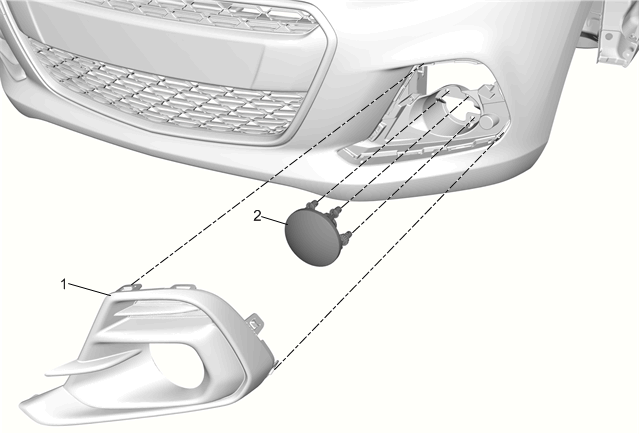

Fig 1: Front Fog Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the daytime running lamp. Refer to Daytime Running Lamp Replacement . Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement Front Fog Lamp Bezel Replacement (Activ) . Disconnect fog lamp bulb socket electrical connector.
1	Front Fog Lamp Bezel
2	Front Fog Lamp Assembly Procedure Remove the lamp assembly from the front bumper. Aim the fog lamp after installation. Refer to Fog Lamp Aiming (Except Canada) Fog Lamp Aiming (Canada) .

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Remove the daytime running lamp. Refer to Daytime Running Lamp Replacement .
Remove the fog lamp bezel. Refer to Front Fog Lamp Bezel Replacement Front Fog Lamp Bezel Replacement (Activ) .
Disconnect fog lamp bulb socket electrical connector.

Front Fog Lamp Bezel

Front Fog Lamp Assembly

Procedure

Remove the lamp assembly from the front bumper.
Aim the fog lamp after installation. Refer to Fog Lamp Aiming (Except Canada) Fog Lamp Aiming (Canada) .
