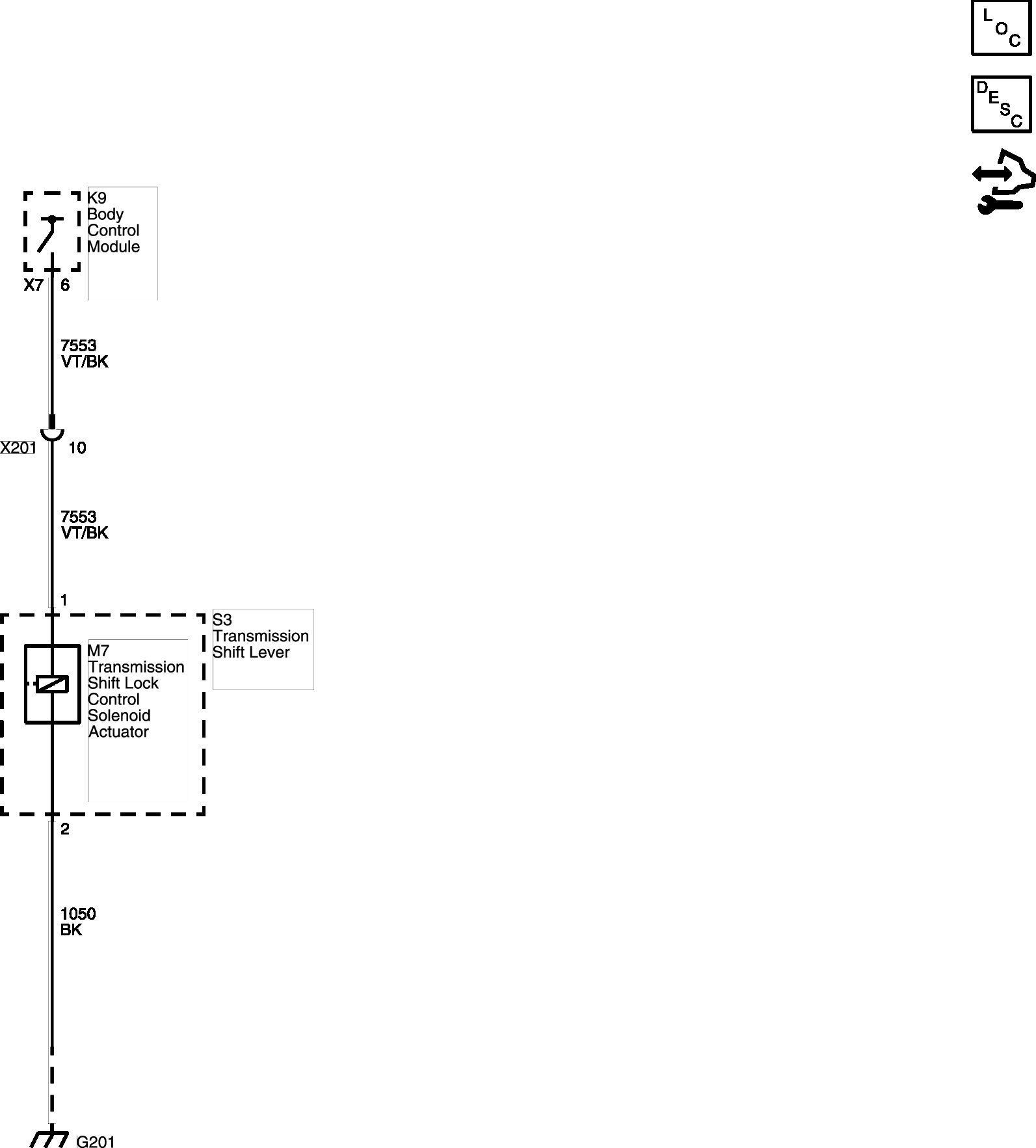

Home › Chevrolet › 2019 › Spark LS, Automatic CVT Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock (MR8)
