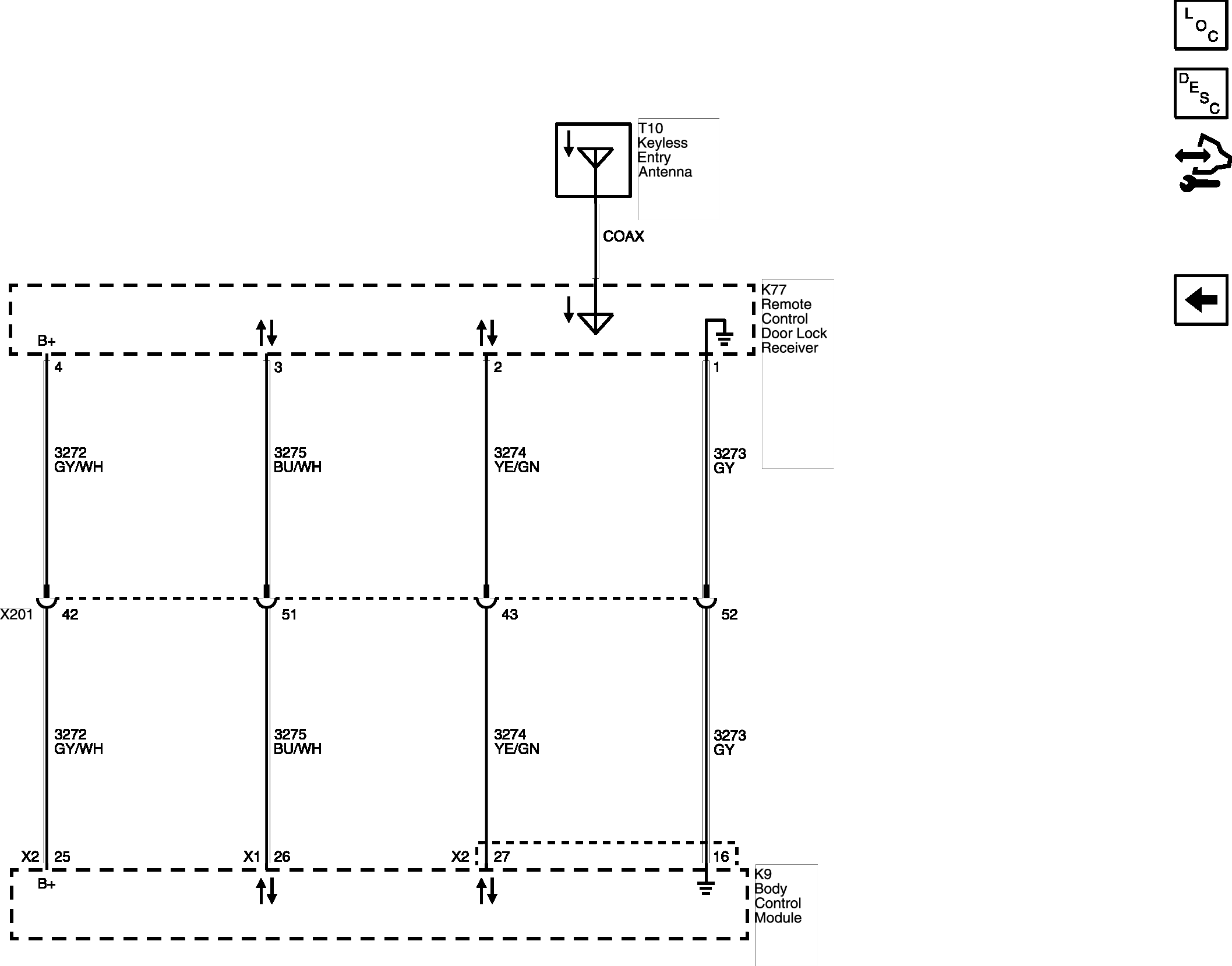

Home › Chevrolet › 2019 › Spark LS, Standard Trans › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry (XL8)
