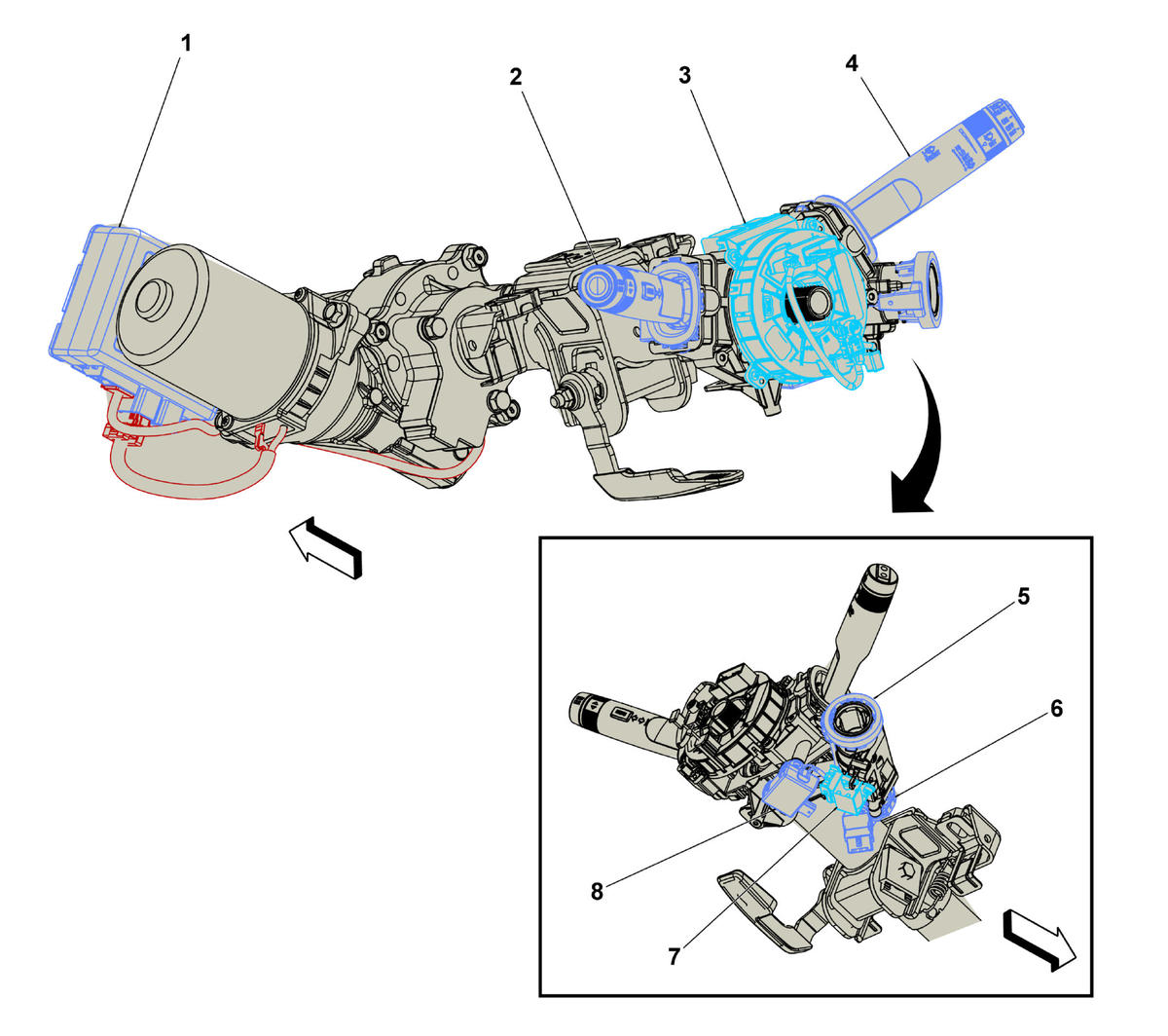

Steering Column Components (LHD)
Steering Column Components (LHD)
| Items |
|---|
| 1. K43 Power Steering Control Module K43 Power Steering Control Module X1 (LHD) , or K43 Power Steering Control Module X1 (RHD) , or K43 Power Steering Control Module X2 |
| 2. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multi-Function Switch (-C80) , or S78 Turn Signal/Multifunction Switch (RHD+C80+Holden) |
| 3. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2 , or X85 Steering Wheel Air Bag Coil X3 |
| 4. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch (-C80) |
| 5. K89 Immobilizer Control Module (-AVJ) K89 Immobilizer Control Module (-AVJ) |
| 6. S39 Ignition Switch S39 Ignition Switch (-AVJ) |
| 7. M93 Key Capture Solenoid Actuator (MR8) M93 Steering Column Lock Solenoid Actuator (-AVJ) |
| 8. K89 Immobilizer Control Module (-AVJ) K89 Immobilizer Control Module (-AVJ) |
