Front Brake Shield Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise the vehicle. Refer to Vehicle Lifting and Jacking Caution . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Without disconnecting the brake caliper hose, remove the brake caliper and bracket as an assembly and support with heavy mechanics wire or equivalent. Refer to Front Brake Caliper Bracket Replacement . Remove the front brake rotor. Refer to Front Brake Rotor Replacement .

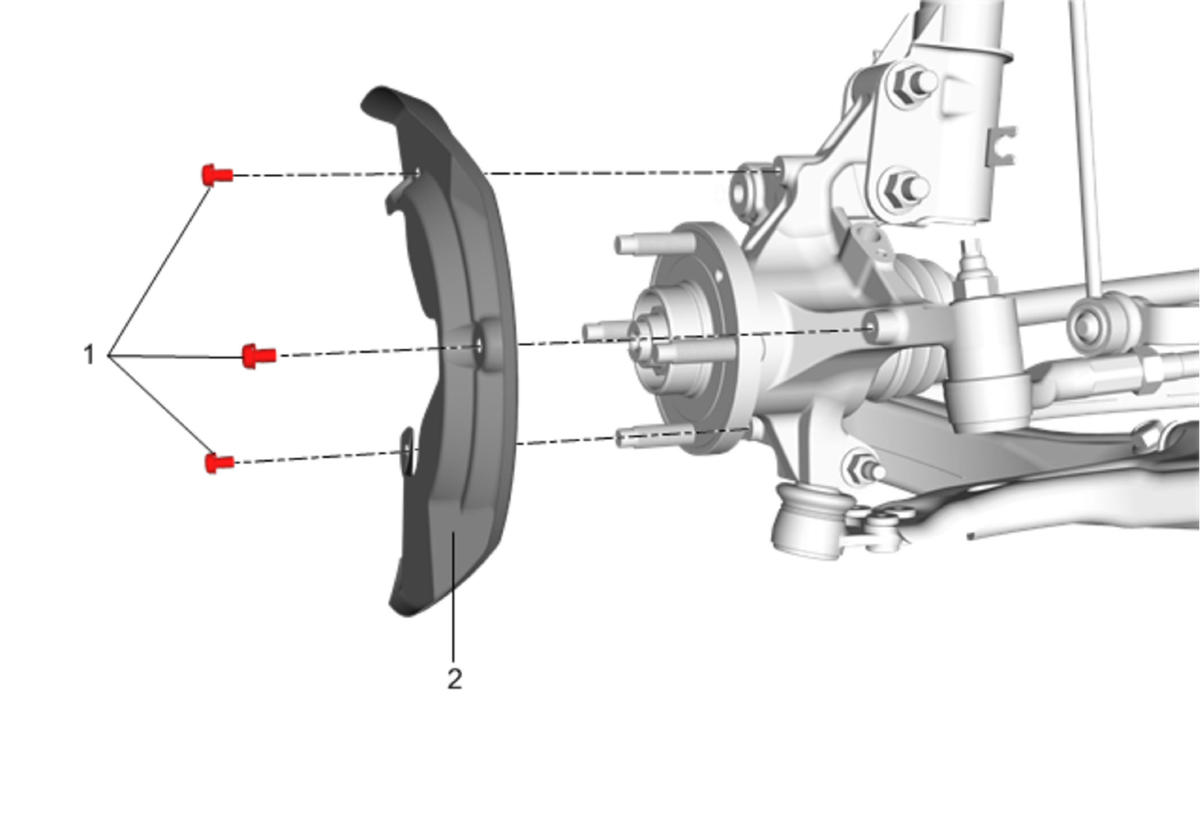

1	Disc Brake Splash Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Disc Brake Splash Shield

Callout

Component Name

WARNING:

Refer to Brake Dust Warning .

Preliminary Procedures

Raise the vehicle. Refer to Vehicle Lifting and Jacking Caution .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Without disconnecting the brake caliper hose, remove the brake caliper and bracket as an assembly and support with heavy mechanics wire or equivalent. Refer to Front Brake Caliper Bracket Replacement .
Remove the front brake rotor. Refer to Front Brake Rotor Replacement .

Disc Brake Splash Shield Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)

Disc Brake Splash Shield
