FixVault
Home
›
Chevrolet
›
2019
›
Spark LT, Automatic CVT Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Local Interconnect Network (LIN)

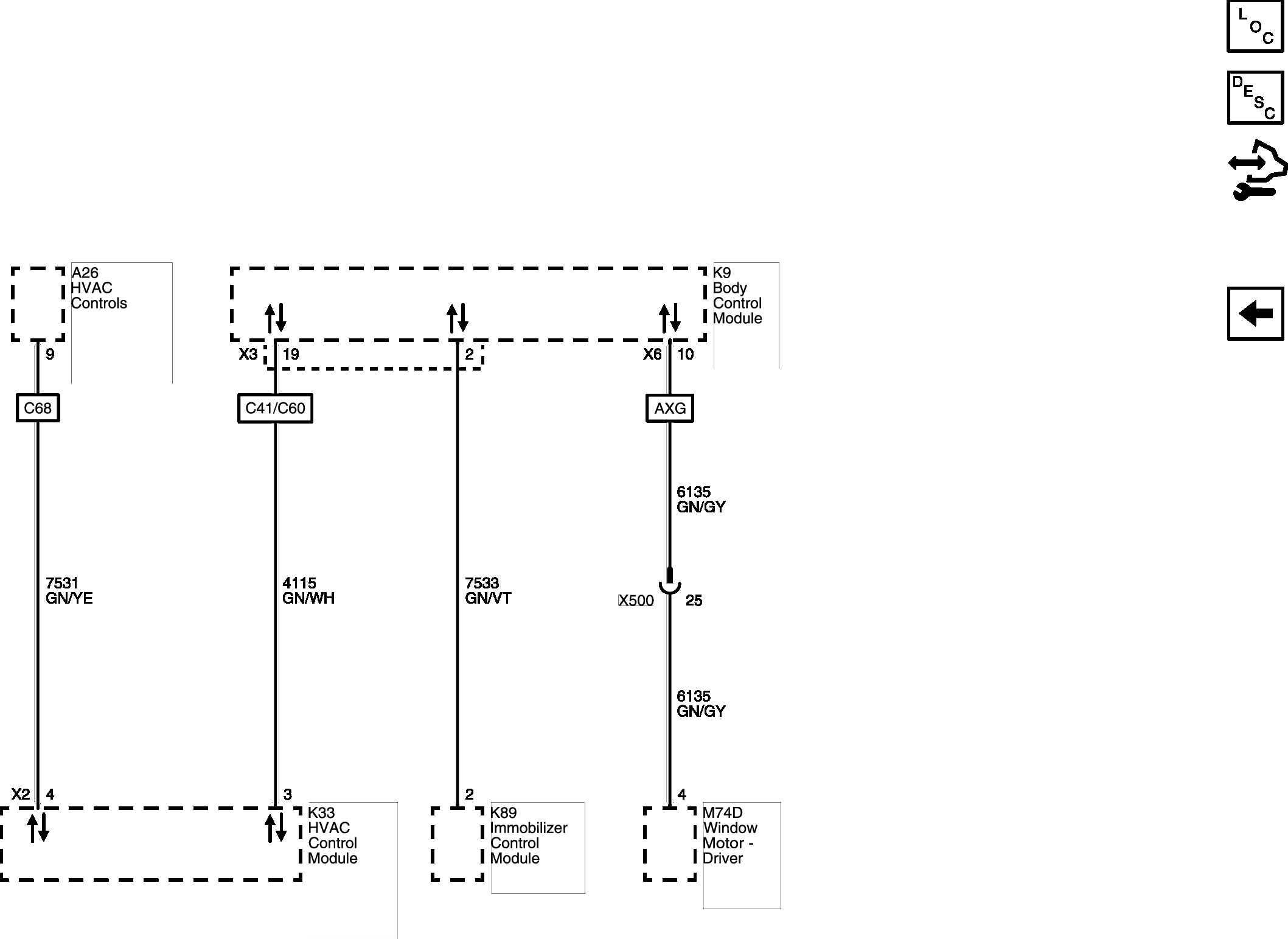

Local Interconnect Network (LIN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
