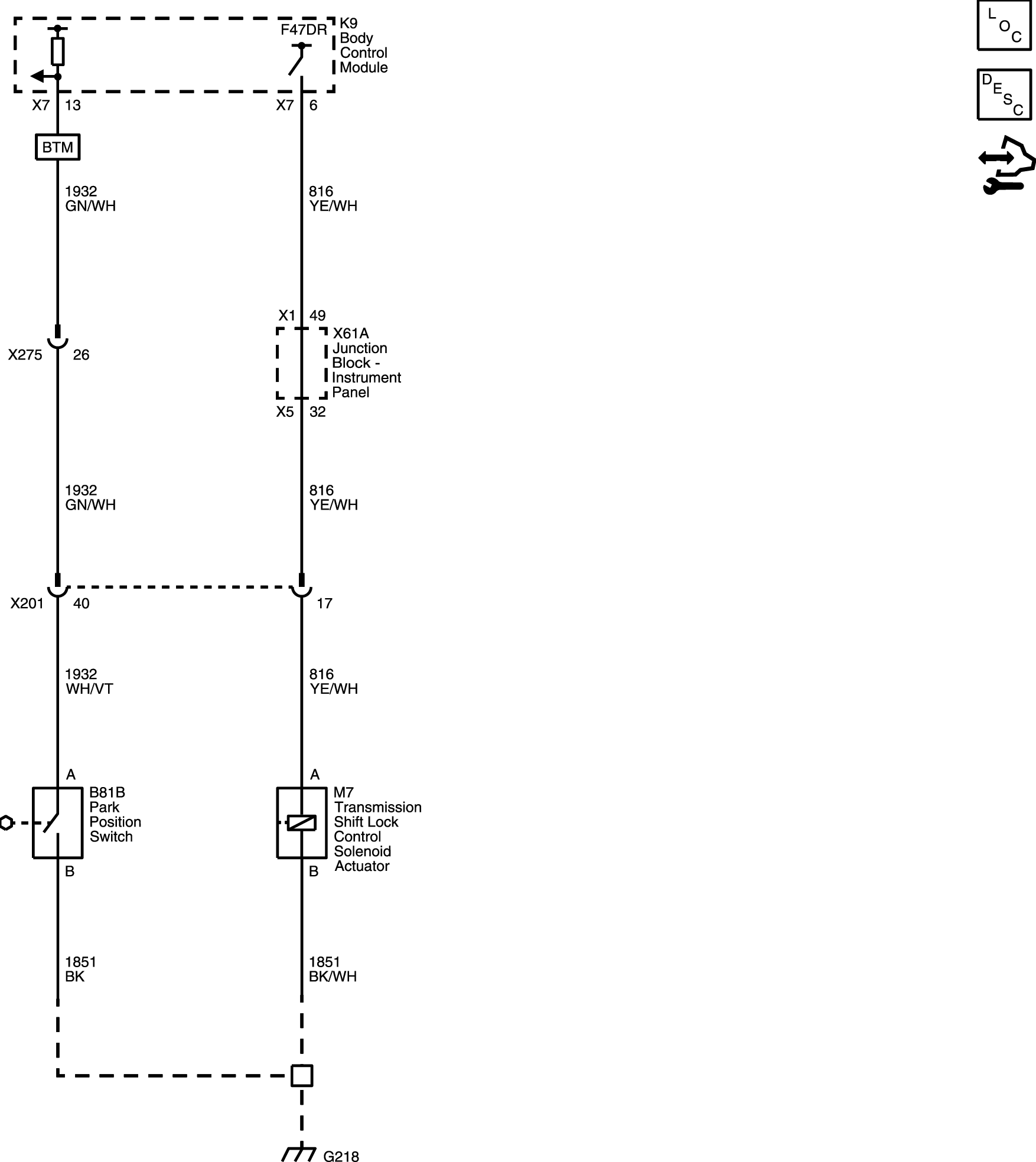

Home › Chevrolet › 2019 › Suburban 3500 HD LS › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic and Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
