Home › Chevrolet › 2019 › Traverse L › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

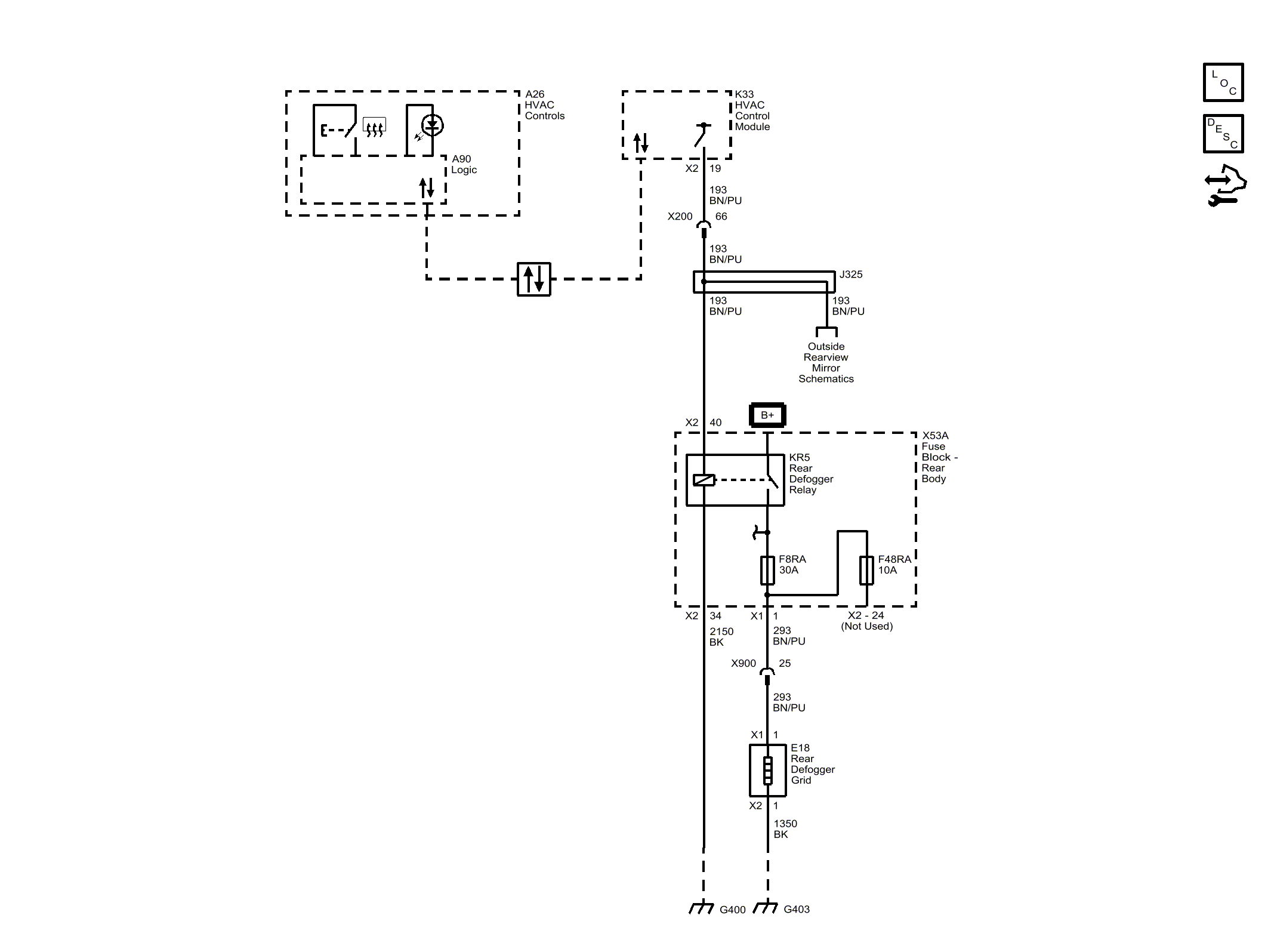

Defogger Wiring Schematics: Defogger

GM4919622Courtesy of GENERAL MOTORS COMPANY
