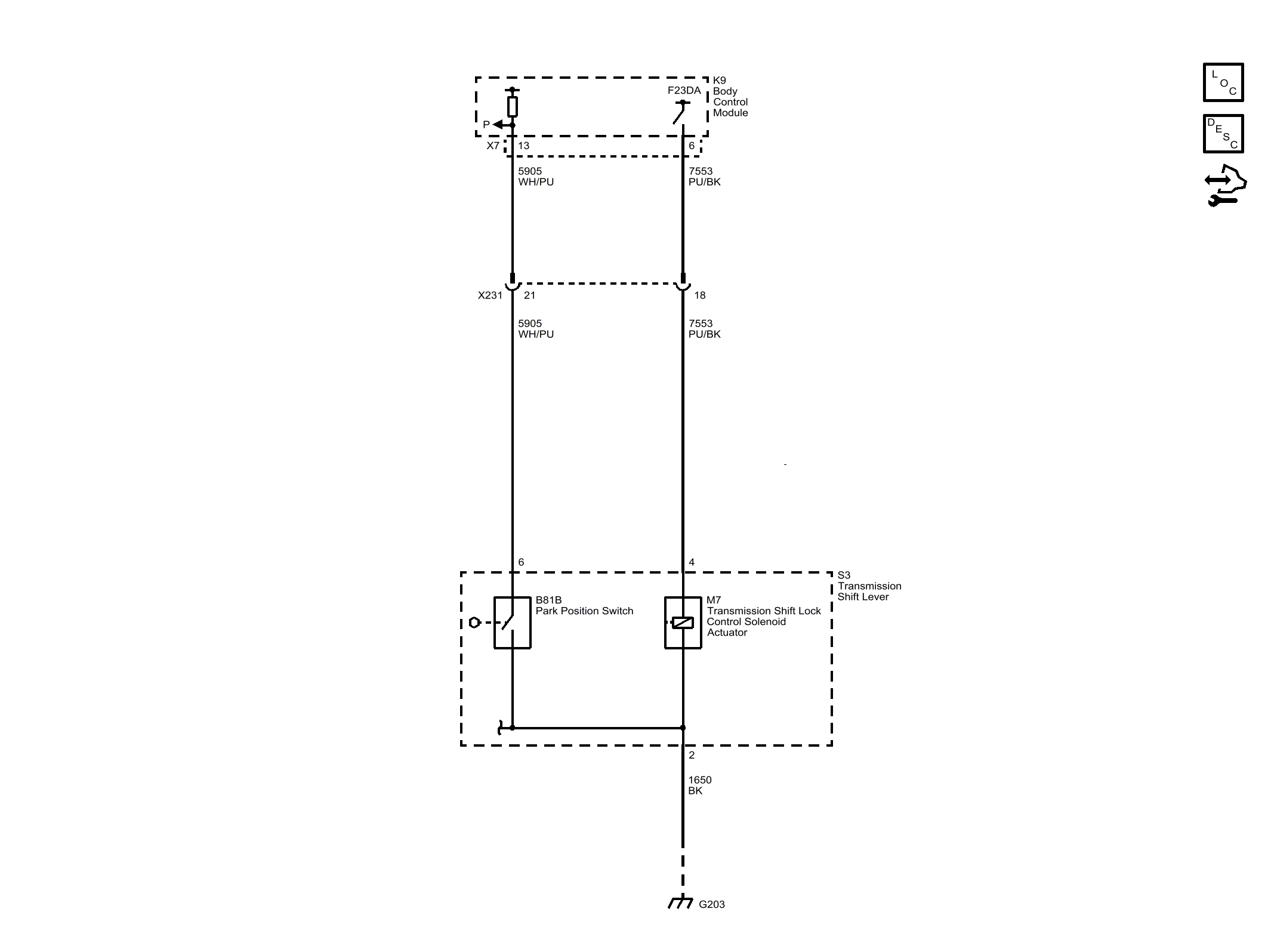

Home › Chevrolet › 2019 › Traverse LT, FWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control (X88)
