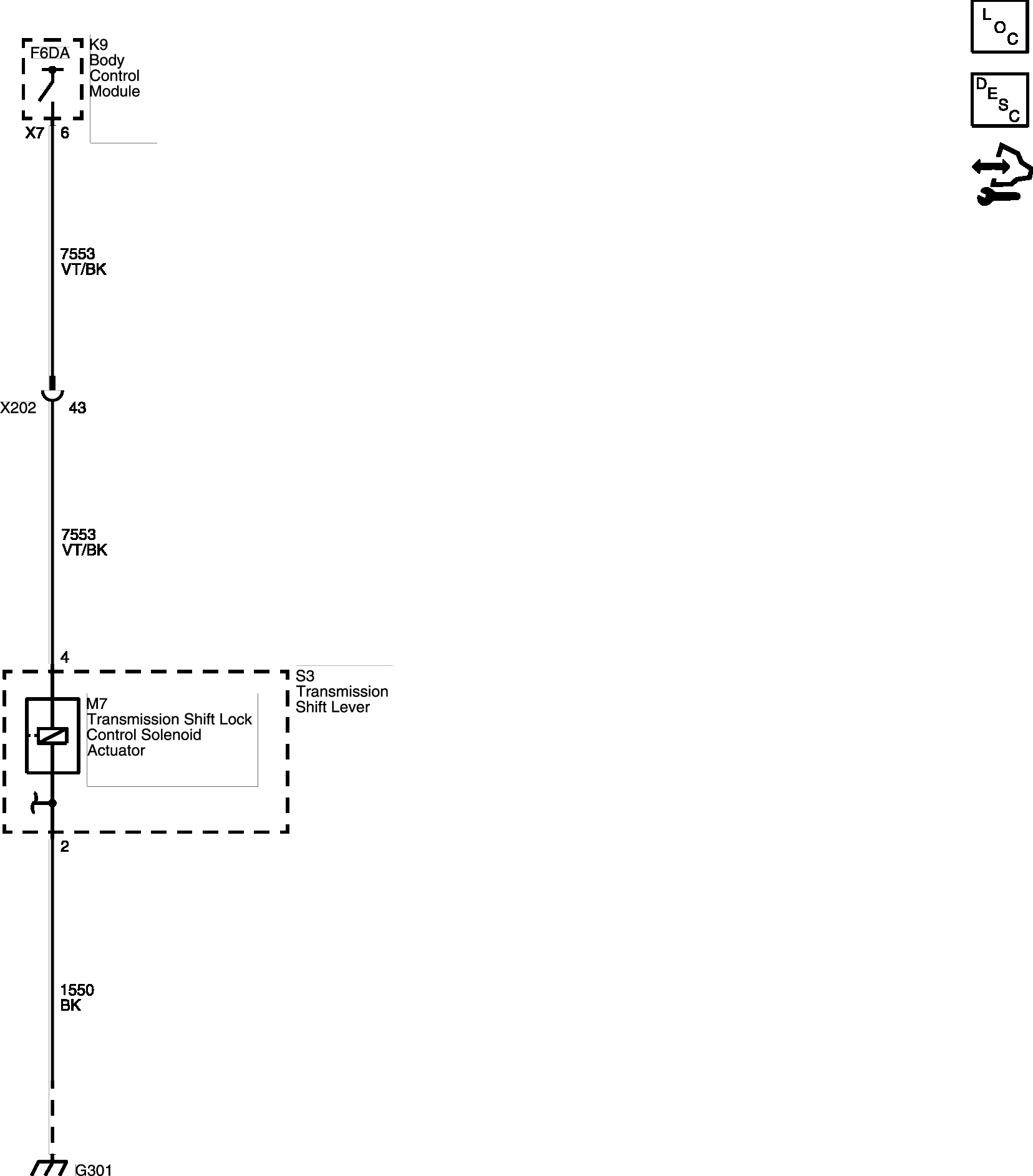

Home › Chevrolet › 2019 › Trax LS, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Schematic Wiring Diagram (Encore) › Shift Lock Control (Encore)
