Installation Procedure
Radio Control Assembly (2) - Install
- Radio Control Bolt(1) - Install and tighten[4x]2. 5 N. m (22 lb in)
- Connect the electrical connectors.

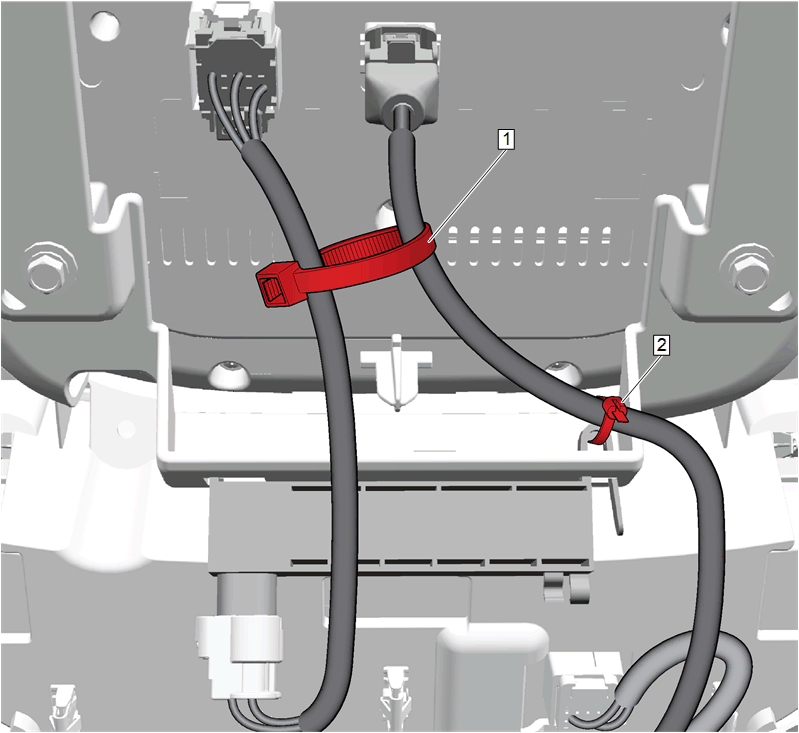

Zip tie (1) both harnesses together up towards the connectors.
- Use a small zip tie (2) to secure the low voltage differential signaling harness to a clip loop created behind the Key FOB Sensor.
- Ensure the harnesses are moved away from the WIFI antenna.
- Cut excess zip tie length and ensure the harnesses are not rubbing, kinked, or pulled tight.
Install the instrument panel center air outlet bracket (1).
Heater and Air Conditioning User Interface Control Bolt(1) - Install[2x] - Heater and Air Conditioning User Interface Control Replacement
Instrument Panel Trim Plate Applique - Right Side(2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
Instrument Panel Lower Center Trim Panel - Upper (1) - Install - Instrument Panel Lower Center Trim Panel Replacement (Upper) , or Instrument Panel Lower Center Trim Panel Replacement (Lower)

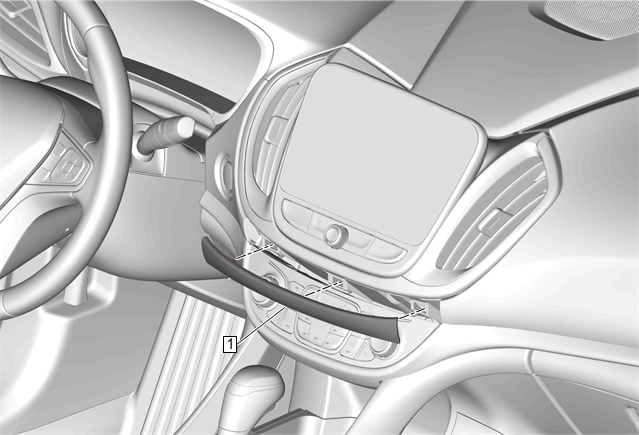

- Install the instrument panel extension (1) and center clips. Instrument Panel Extension Replacement
- Perform the necessary programming and setup procedure: Control Module References
Refer to Fastener Caution .
If the harnesses are too close to the WIFI antenna, it could cause interference and make the radio screen flicker when used.
