Removal Procedure

NOTE:

It is not necessary to remove the instrument panel extension.

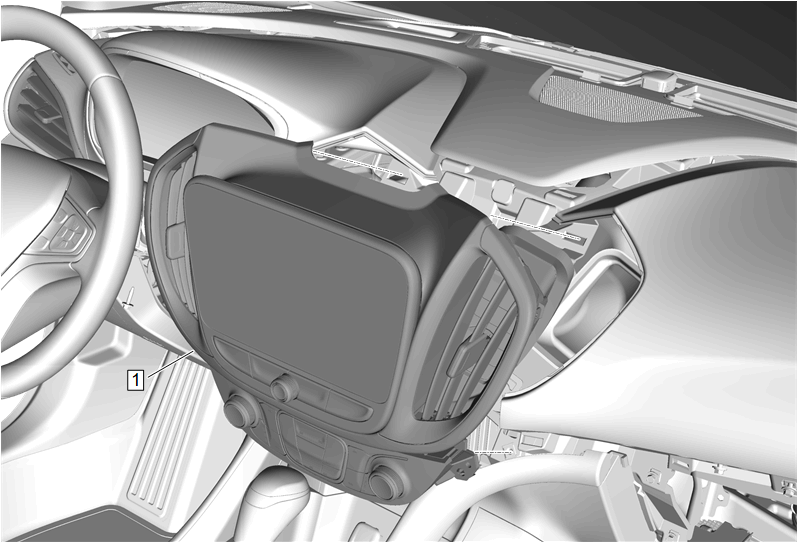

Use a plastic trim tool, only loosen the 2 front center retaining clips and lift up the front center of the instrument panel extension (1). Instrument Panel Extension Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique - Right Side(2) - Remove - Instrument Panel Trim Plate Applique Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

NOTE:
It is not necessary to remove heater and air conditioning user interface control.

Heater and Air Conditioning User Interface Control Bolt(1) - Remove[2x] - Heater and Air Conditioning User Interface Control Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Remove the heater and air conditioning user interface control with the radio control assembly as a unit.

Using a plastic trim tool, remove the instrument panel center air outlet bracket (1).
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

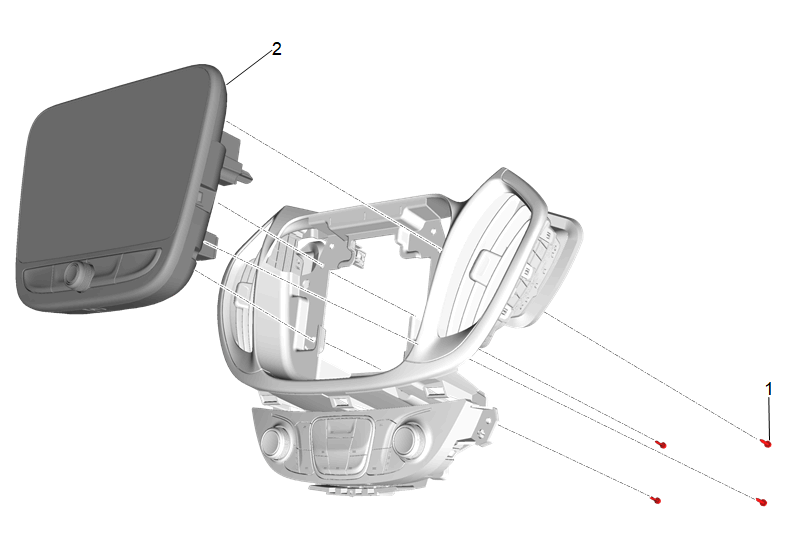

Radio Control Bolt(1) - Remove[4x]
Radio Control Assembly (2) - Remove
