UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation

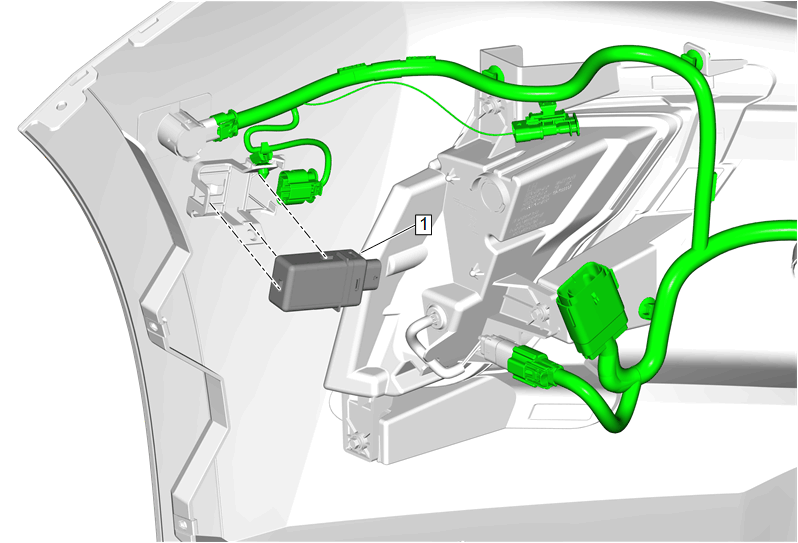

1	UHF Low Energy Remote Control Access Sensor Transceiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

UHF Low Energy Remote Control Access Sensor Transceiver

Procedure
