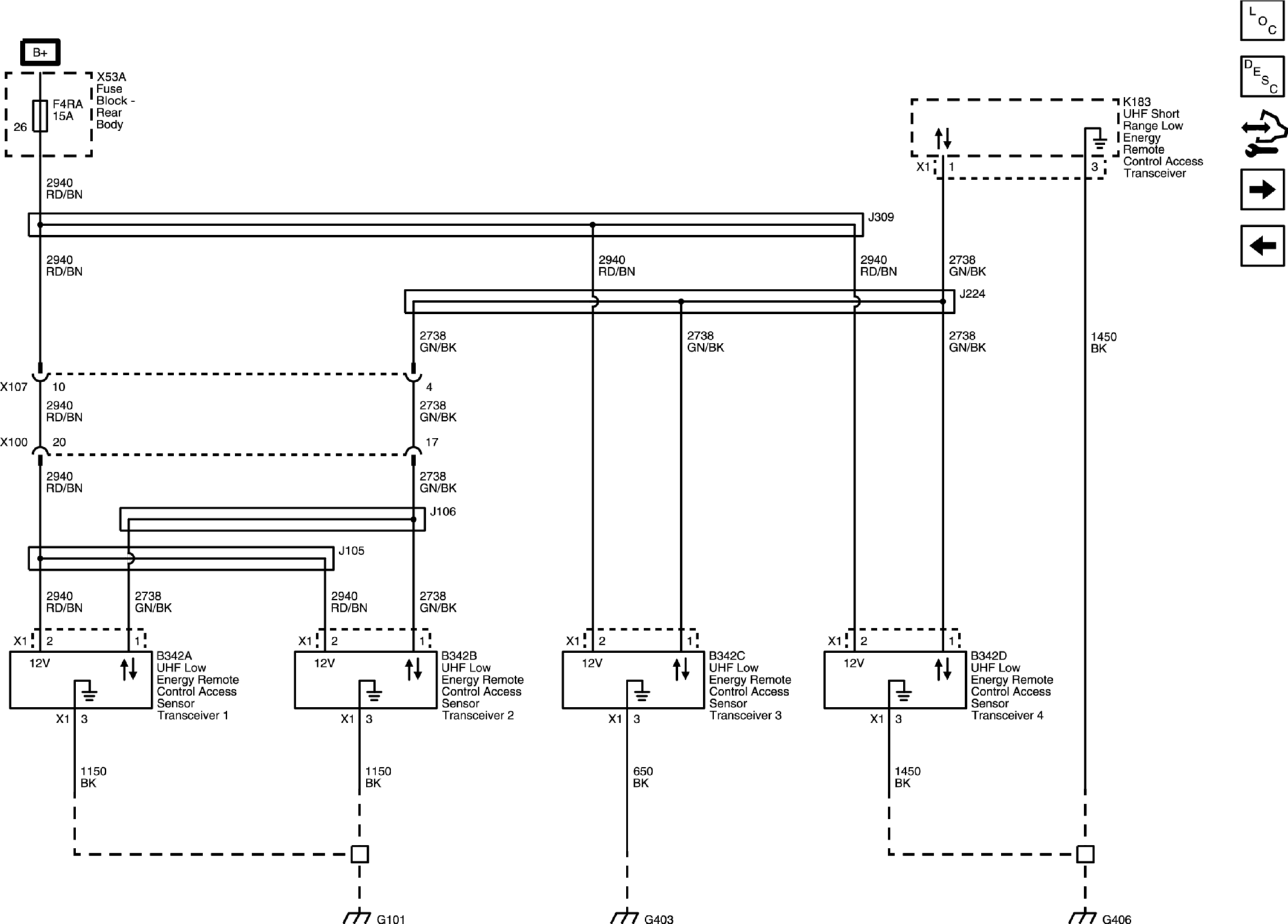

Home › Chevrolet › 2019 › Volt Premier › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry (BOP)
