Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

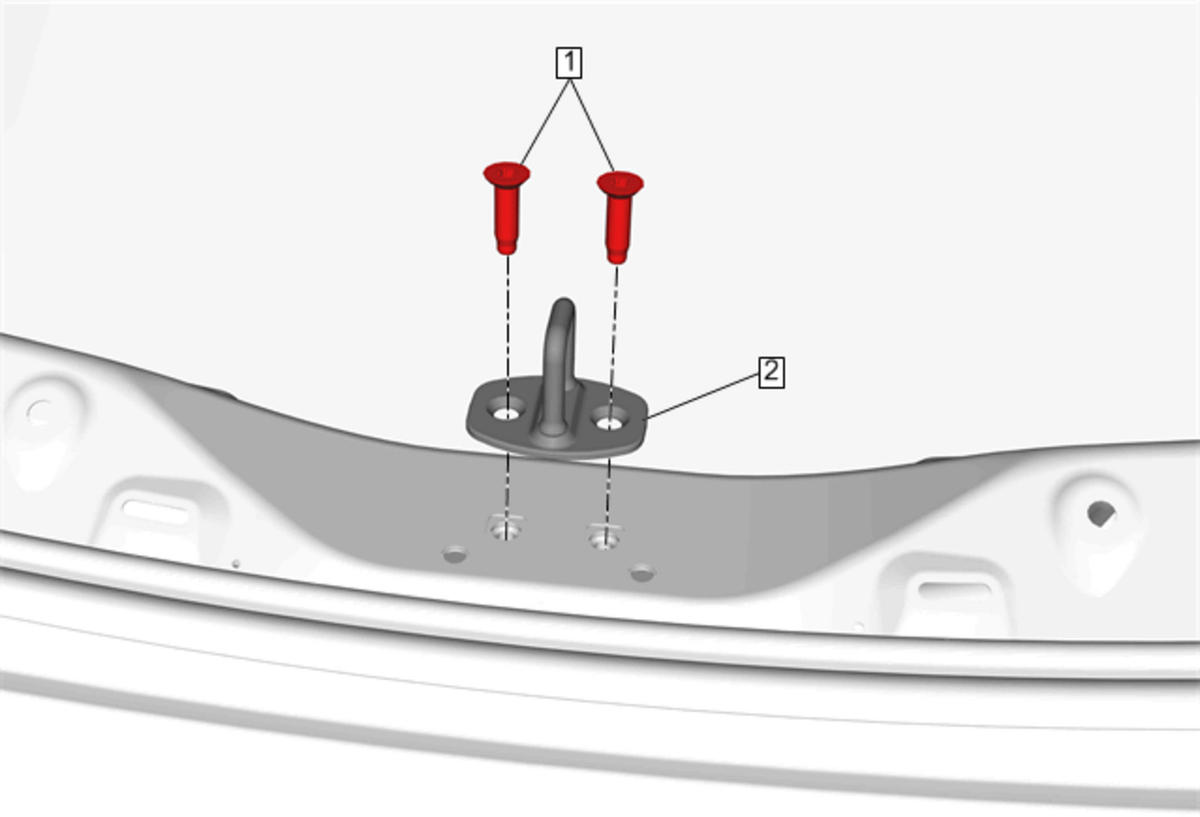

Callout	Component Name
Preliminary Procedure  Liftgate Sill Garnish Molding Replacement
1	Liftgate Latch Striker Bolt [2x] CAUTION: Fastener Caution Tighten  22 N.m (16 lb ft) Procedure  Use a grease pencil to outline the striker before removing the bolts.
2	Liftgate Latch Striker Procedure  Adjust the liftgate latch striker after replacing, if needed.
