Electronic Suspension Control Description and Operation: Notes

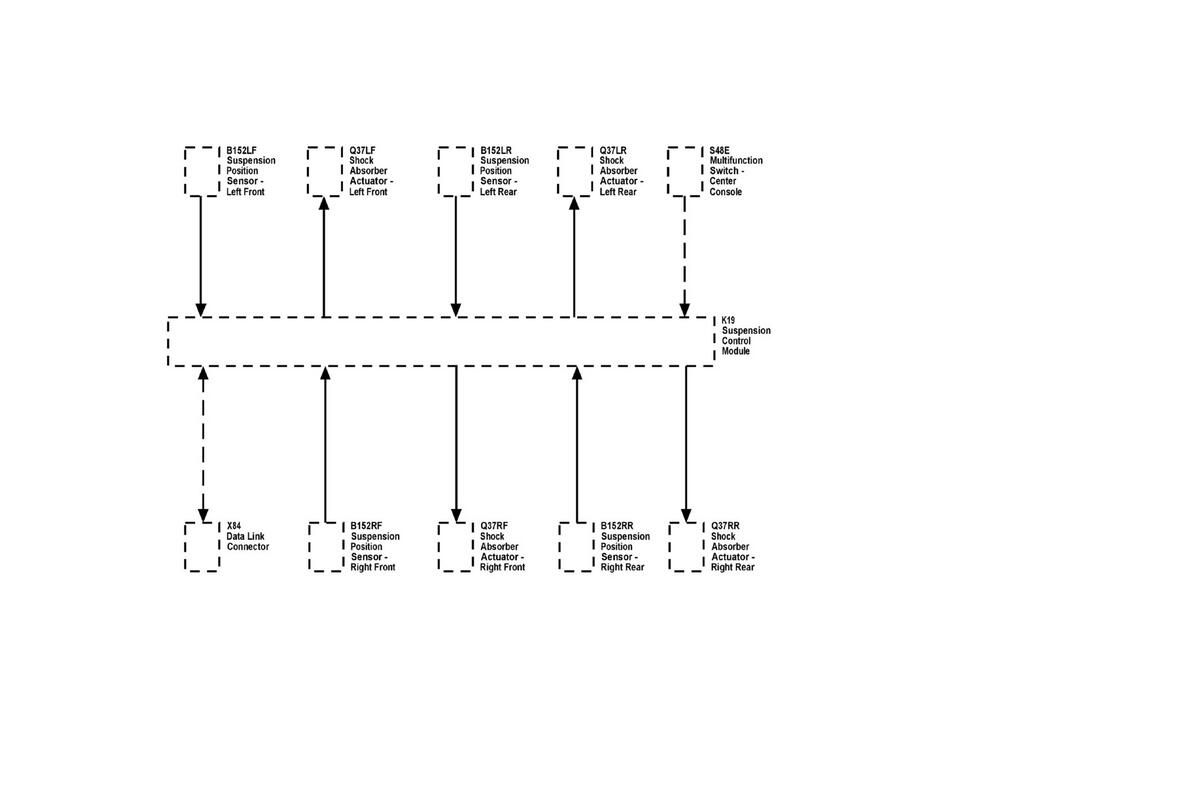

| Callout | Component Name |
|---|---|
| B152LF | B152LF Suspension Position Sensor - Left Front |
| Q37LF | Q37LF Shock Absorber Actuator - Left Front |
| B152LR | B152LR Suspension Position Sensor - Left Rear |
| Q37LR | Q37LR Shock Absorber Actuator - Left Rear |
| S48E | S48E Multifunction Switch - Center Console |
| K19 | K19 Suspension Control Module |
| X84 | X84 Data Link Connector |
| B152RF | B152RF Suspension Position Sensor - Right Front |
| Q37RF | Q37RF Shock Absorber Actuator - Right Front |
| B152RR | B152RR Suspension Position Sensor - Right Rear |
| Q37RR | Q37RR Shock Absorber Actuator - Right Rear |
The BWI electronic suspension control system, individually controls the damping force of each of the 4 shock absorbers in order to keep the vehicle's body as calm as possible. Changes of the damping forces can be accomplished within milliseconds. Suspension characteristics can be changed at any time by activating the sport mode or tour mode.
The electronic suspension control system consists of the following major components:
- The suspension control module
- Four corner height sensors
- Four shock absorber actuators, which are integrated within the shock absorbers (ZL1 only)
- Suspension Control Switch
The suspension control module controls the damping forces according to the following factors:
- Vehicle speed
- Steering wheel position
- Engine torque
- Brake pressure
The suspension control module evaluates these inputs in order to separately control the shock absorbers, providing an enhanced ride and comfort level over the widest possible range of operating conditions.
