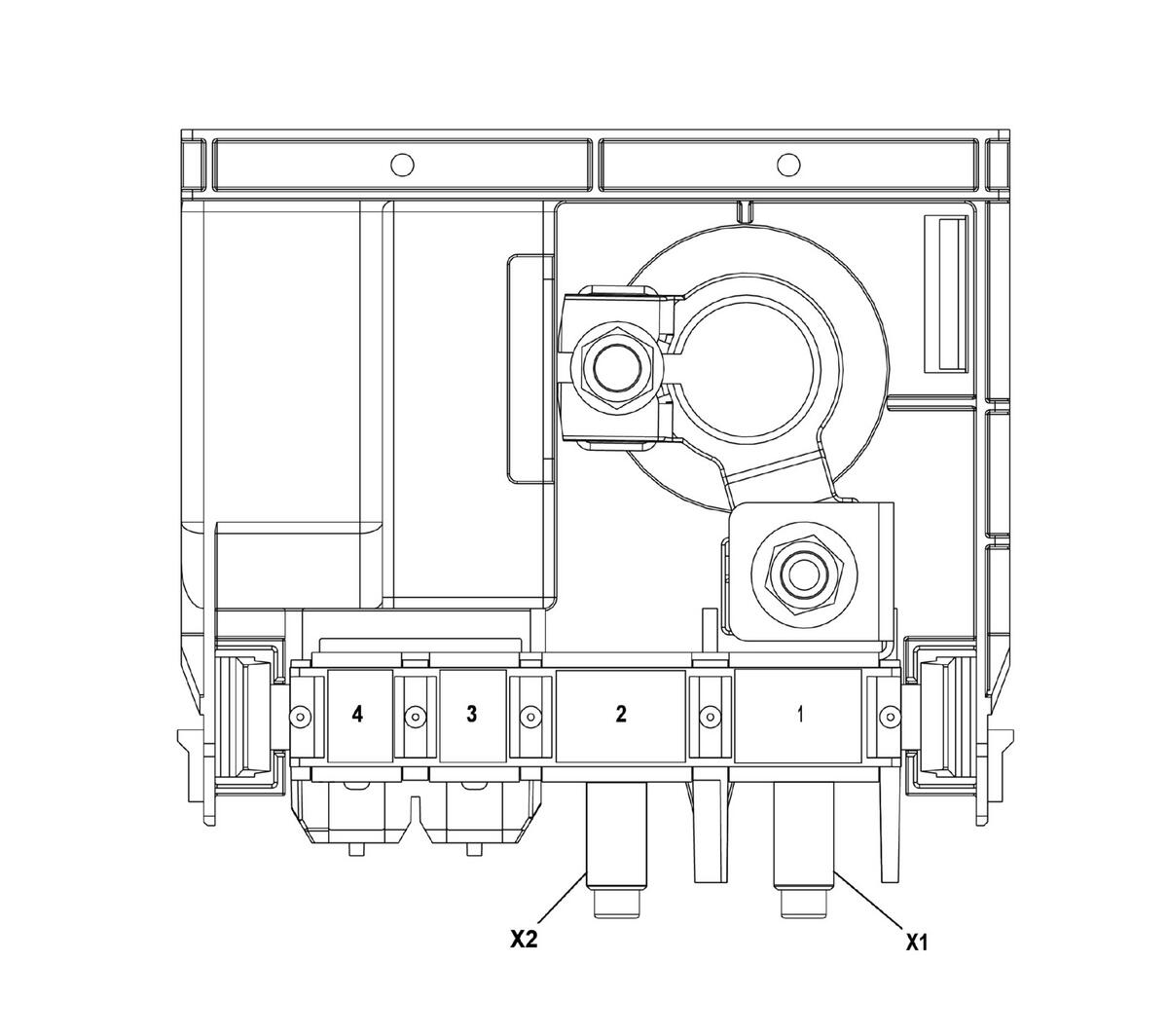

X50D Fuse Block - Battery Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1RD	350A	M64 Starter Motor X50A Fuse Block - Underhood X50B Fuse Block - Underhood Auxiliary
2	-	F2RD	200A	X53A Fuse Block - Rear Body
3	-	F3RD	100A	Not Used
4	-	F4RD	60A	KR149A Folding Top Pump Motor Relay 1 KR149B Folding Top Pump Motor Relay 2
