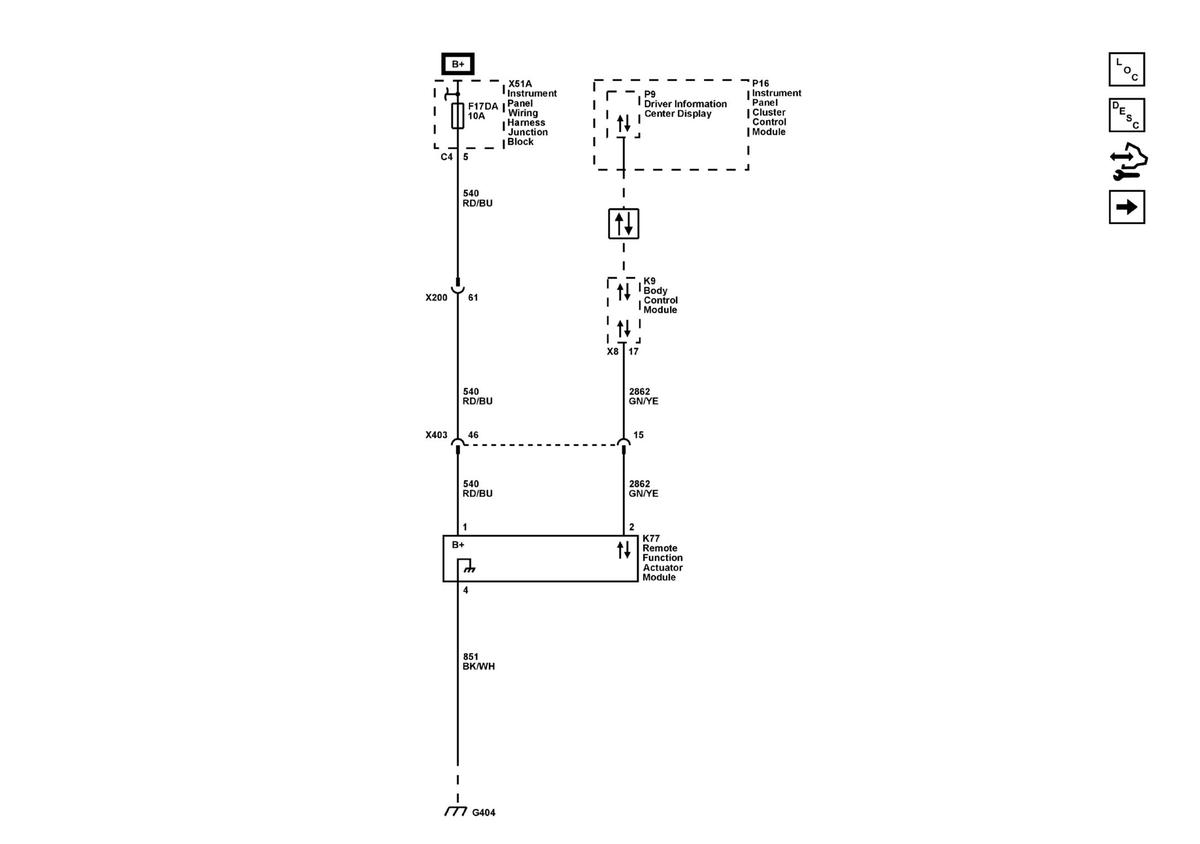

Home › Chevrolet › 2020 › Corvette 2D Convertible › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
