Installation Procedure

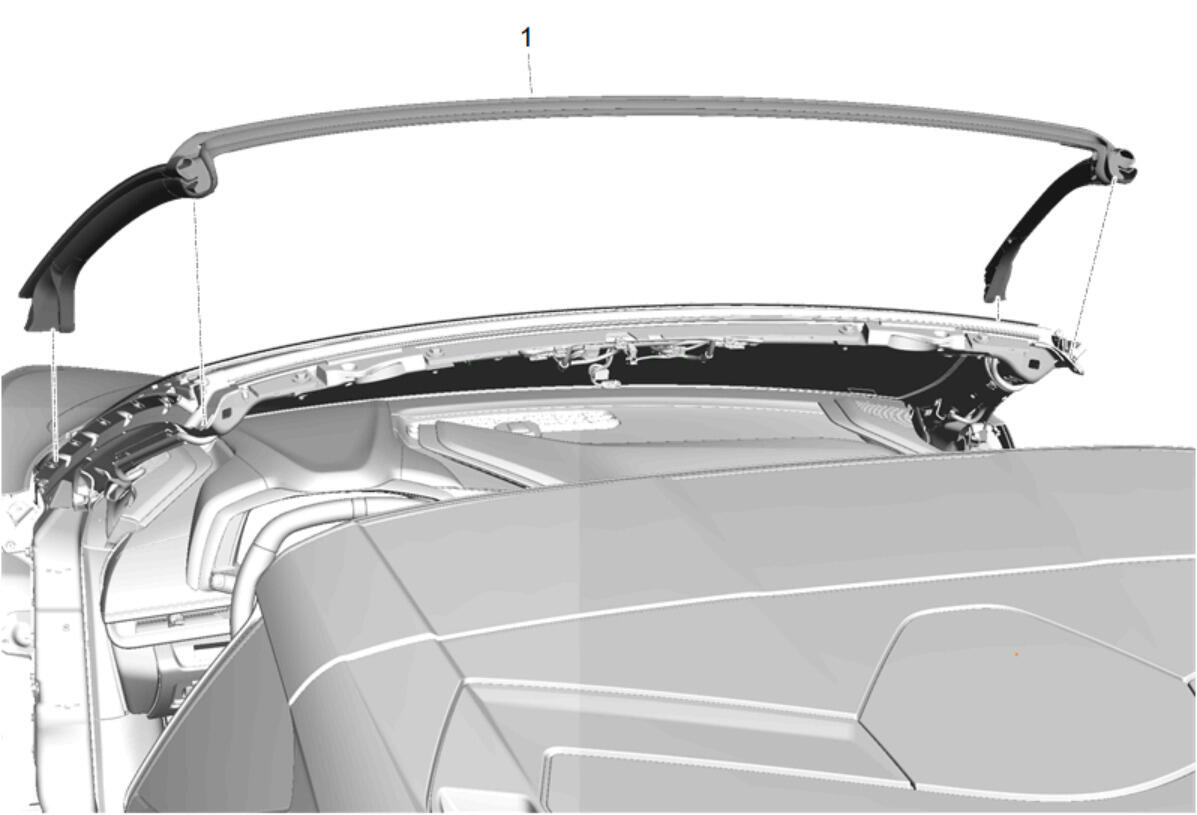

  1. GM5382906Courtesy of GENERAL MOTORS COMPANY

    Install the windshield frame weatherstrip (1).

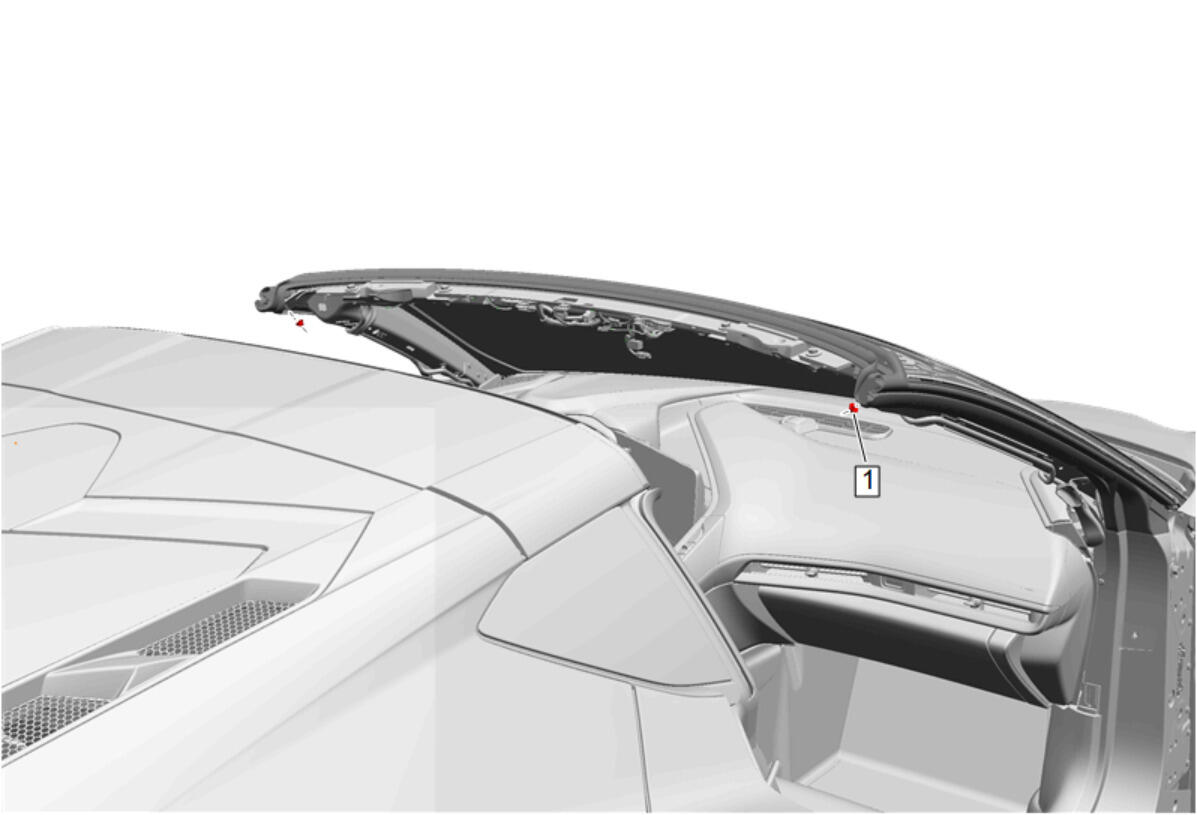

  2. GM5382904Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the windshield frame weatherstrip nut (1) and tighten to 2.5 N.m (22 lb in).

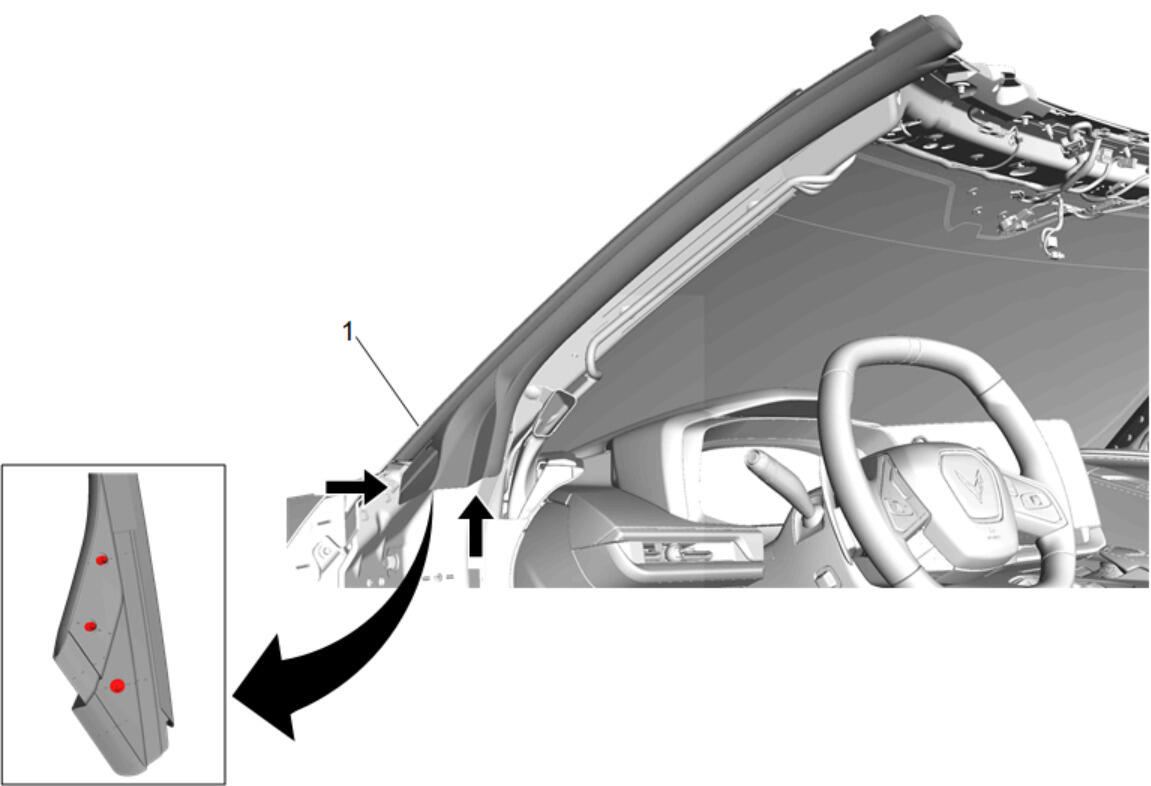

  3. GM5382902Courtesy of GENERAL MOTORS COMPANY

    Push in both bottom edges of the windshield frame weatherstrip (1) to install the 3 retainers on each side of the weatherstrip.

  4. Install windshield upper garnish molding. Windshield Upper Garnish Molding Replacement (Coupe) , or Windshield Upper Garnish Molding Replacement (Convertible)
  5. Windshield Multifunction Sensor Mount Bracket Cover - Remove - Windshield Multifunction Sensor Mount Bracket Cover Replacement

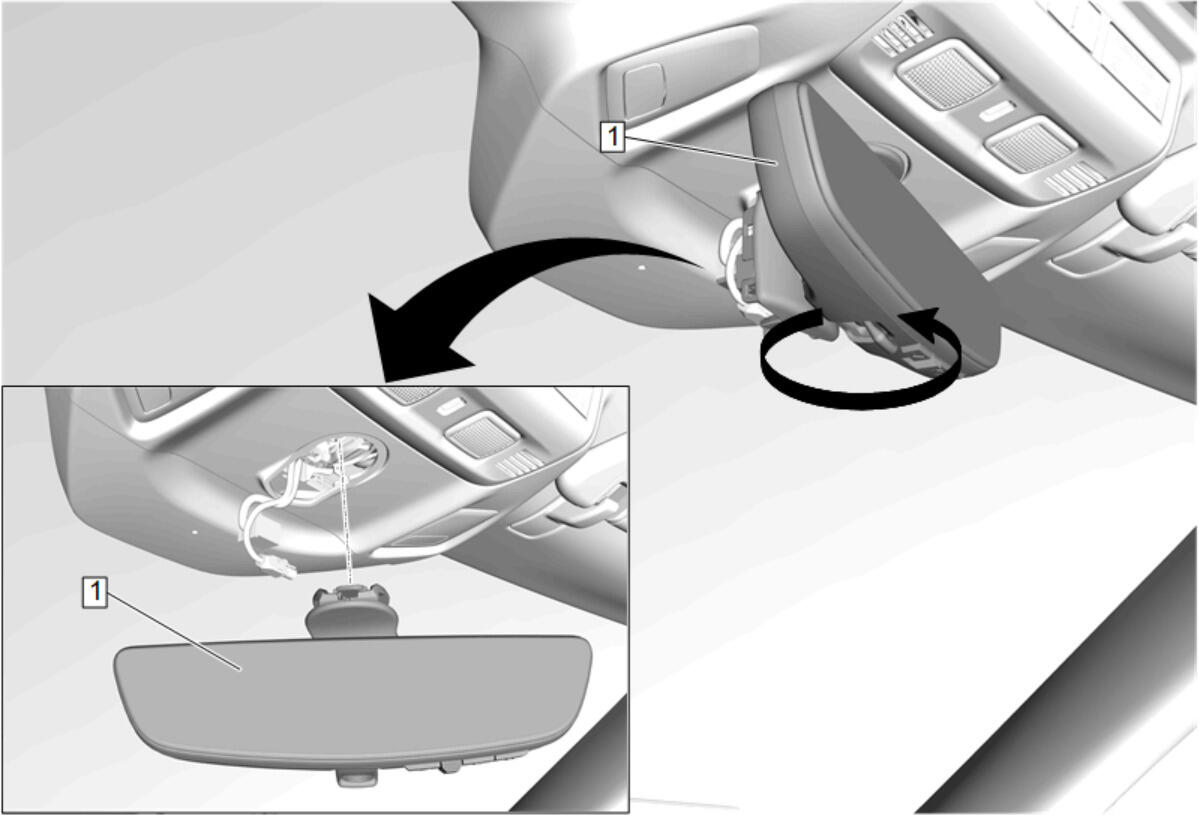

  6. GM5383539Courtesy of GENERAL MOTORS COMPANY

    Inside Rearview Mirror (1) - Install - Inside Rearview Mirror Replacement

  7. Install both sunshade supports. Sunshade Support Replacement
  8. Install both sunshades. Sunshade Replacement
  9. Install both windshield garnish moldings. Windshield Garnish Molding Replacement

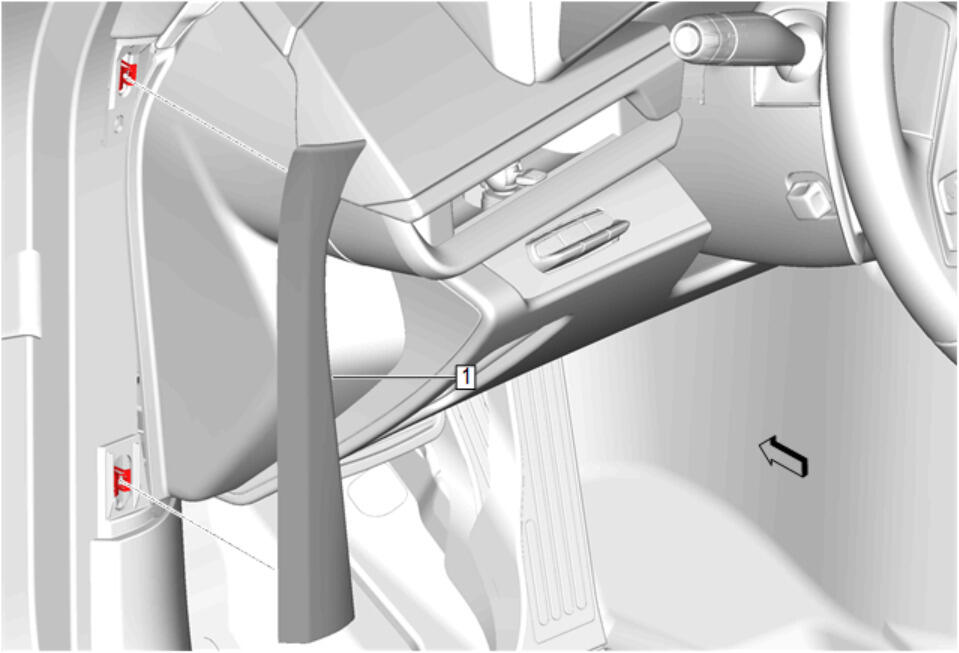

  10. GM5281824Courtesy of GENERAL MOTORS COMPANY

    Install both body hinge pillar garnish moldings (1). Body Hinge Pillar Garnish Molding Replacement

  11. Install both body side upper front appliques. Body Side Upper Front Applique Replacement
  12. Install the roof lift off panel. Roof Lift Off Panel Replacement
