Installation Procedure

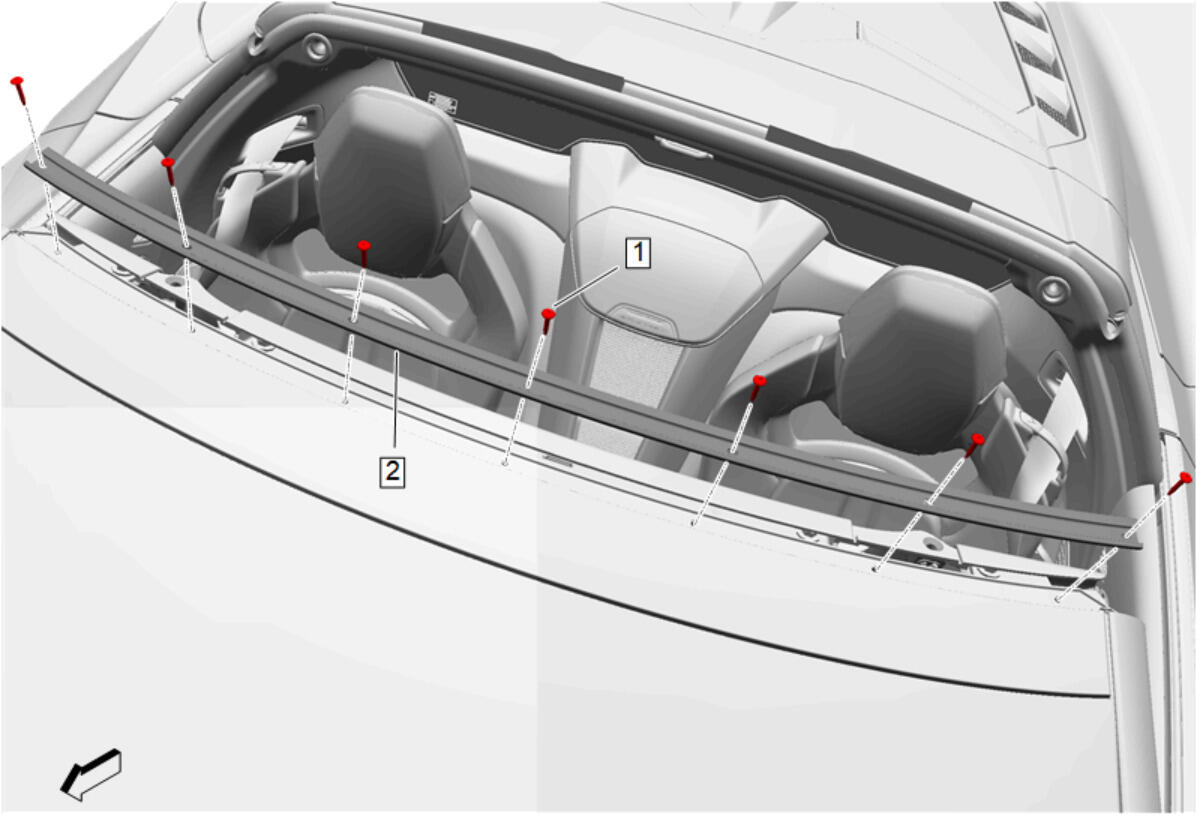

Install the windshield frame weatherstrip retainer (2).
- Install the 7 windshield frame weatherstrip retainer bolts (1) and tighten to 2.5 N.m (22 lb in).
Install the windshield frame weatherstrip (1). Windshield Frame Weatherstrip Replacement
Push in both bottom edges of the windshield frame weatherstrip (1) to install the 3 retainers on each side of the weatherstrip.
- Install windshield upper garnish molding. Windshield Upper Garnish Molding Replacement (Coupe) , or Windshield Upper Garnish Molding Replacement (Convertible)
- Windshield Multifunction Sensor Mount Bracket Cover - Remove - Windshield Multifunction Sensor Mount Bracket Cover Replacement
Inside Rearview Mirror (1) - Install - Inside Rearview Mirror Replacement
- Install both sunshade supports. Sunshade Support Replacement
- Install both sunshades. Sunshade Replacement
- Install both windshield garnish moldings. Windshield Garnish Molding Replacement
- Install both body side upper front appliques. Body Side Upper Front Applique Replacement
- Install the roof lift off panel. Roof Lift Off Panel Replacement
CAUTION:
Refer to Fastener Caution .
