Installation Procedure

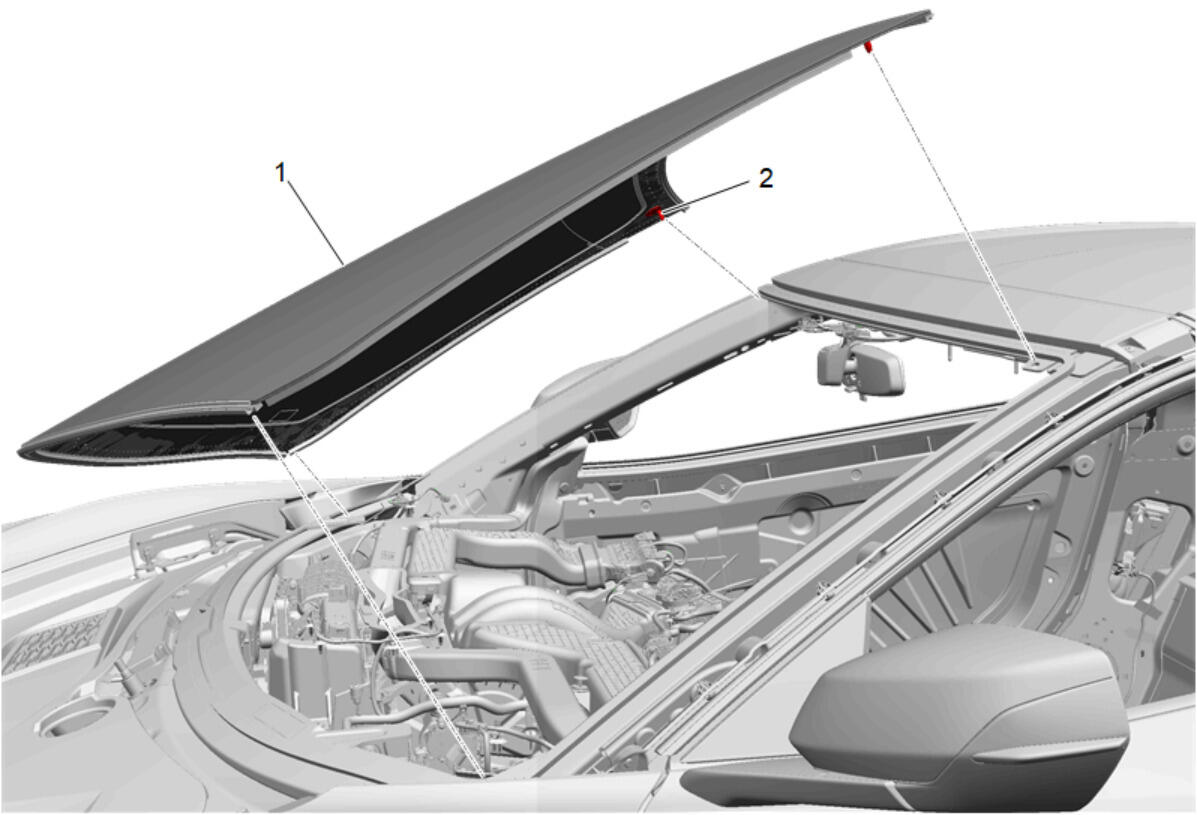

Windshield (1) - Install - Adhesive Installation of Windshields

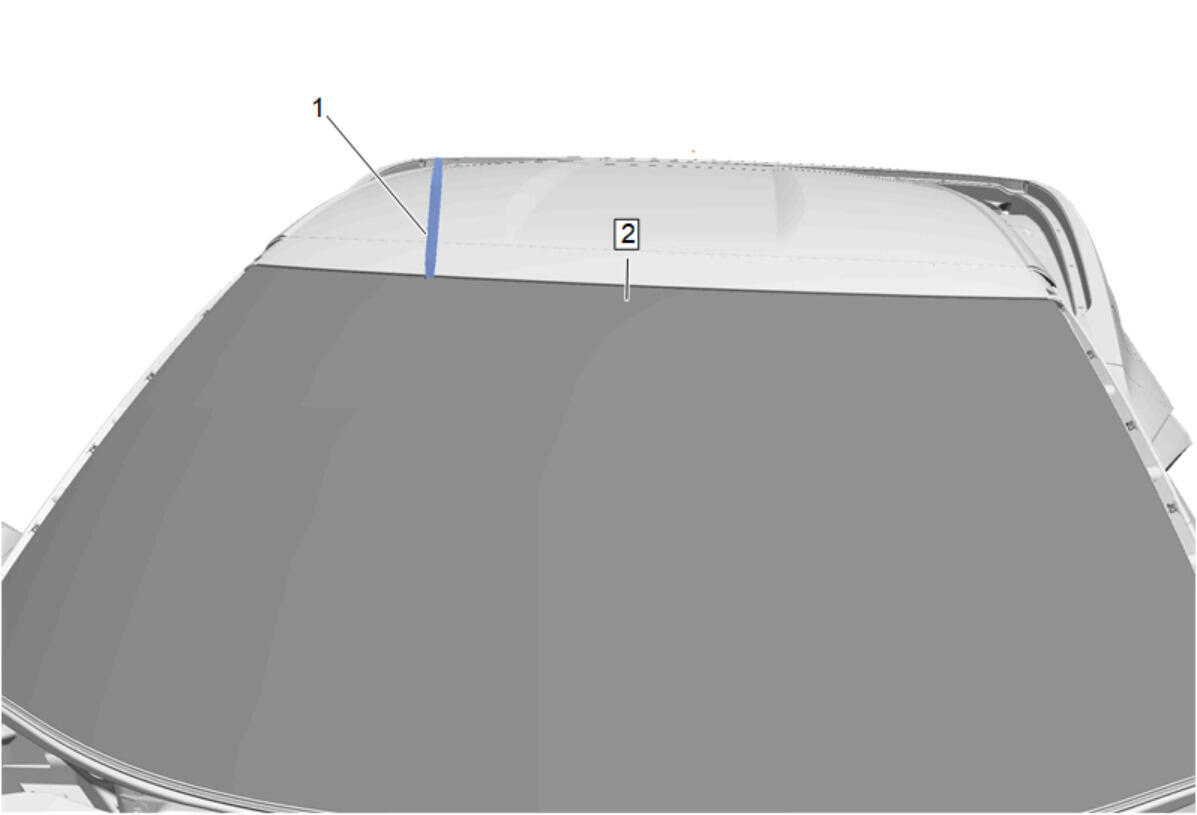

Using a plastic trim tool (1), insert along the top of the windshield (2) and tuck foam seal under the windshield.
- Install the windshield bracket to the windshield.
- Windshield Multifunction Sensor Mount Bracket Cover - Install - Windshield Multifunction Sensor Mount Bracket Cover Replacement
- Air Inlet Grille Panel - Install - Air Inlet Grille Panel Replacement
- Install both body side upper front appliques. Body Side Upper Front Applique Replacement
- Remove the double layer of masking tape around the perimeter of the painted surfaces.
- Remove any remaining adhesive residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe the surface dry with a clean lint-free towel.
