Cooling System Component Views

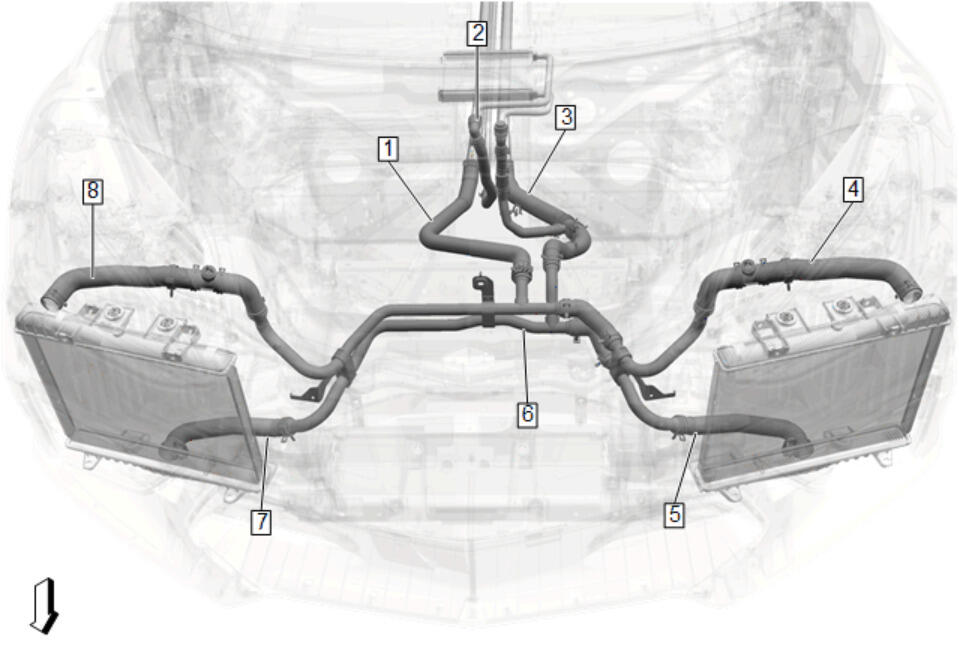

Fig 1: Identifying Front Hose Components
GM5375285Courtesy of GENERAL MOTORS COMPANY
Front Hose Locator View

Callout Component Name
1 Radiator Outlet Hose Replacement - Radiator Inlet Pipe to A/C Tube
2 Heater Outlet Hose Replacement
3 Radiator Inlet Hose Replacement - Radiator Inlet Pipe to A/C Tube
4 Auxiliary Radiator Outlet Hose Replacement - Left Side Radiator
5 Radiator Inlet Hose Replacement - Front Left Side
6 Radiator Inlet Pipe Replacement (Without E60) , or Radiator Inlet Pipe Replacement (With E60)
7 Radiator Inlet Hose Replacement - Front Right Side
8 Auxiliary Radiator Outlet Hose Replacement - Right Side Radiator

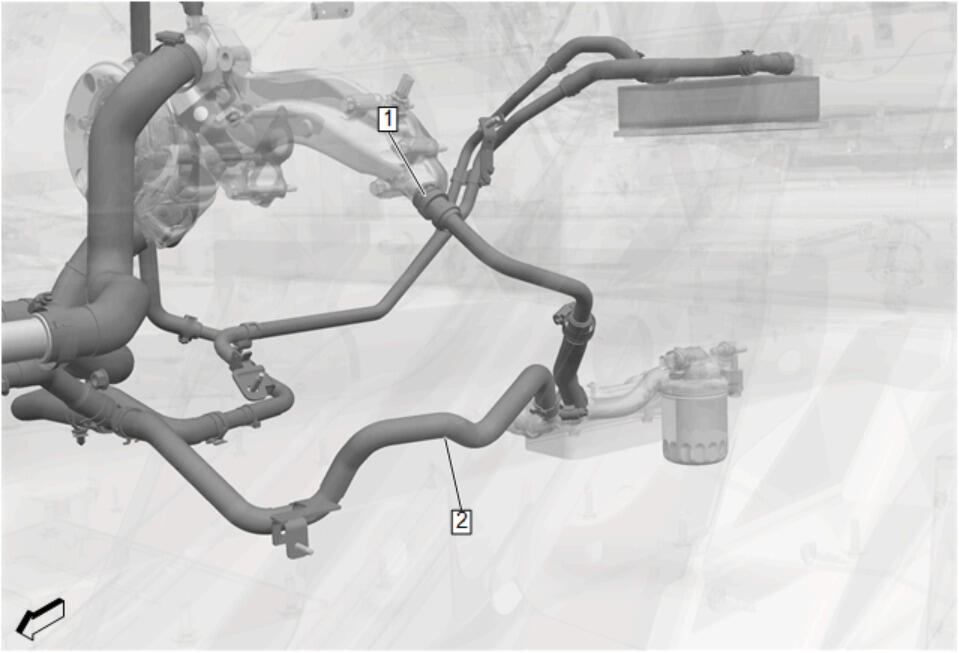

GM5375287Courtesy of GENERAL MOTORS COMPANY
Left Side Rear Hose Locator View - without V09

Callout Component Name
1 Water Pump Outlet Pipe Replacement - Engine Coolant Manifold to Engine Oil Cooler Adapter (without V09)
2 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe without V08) , or Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible)

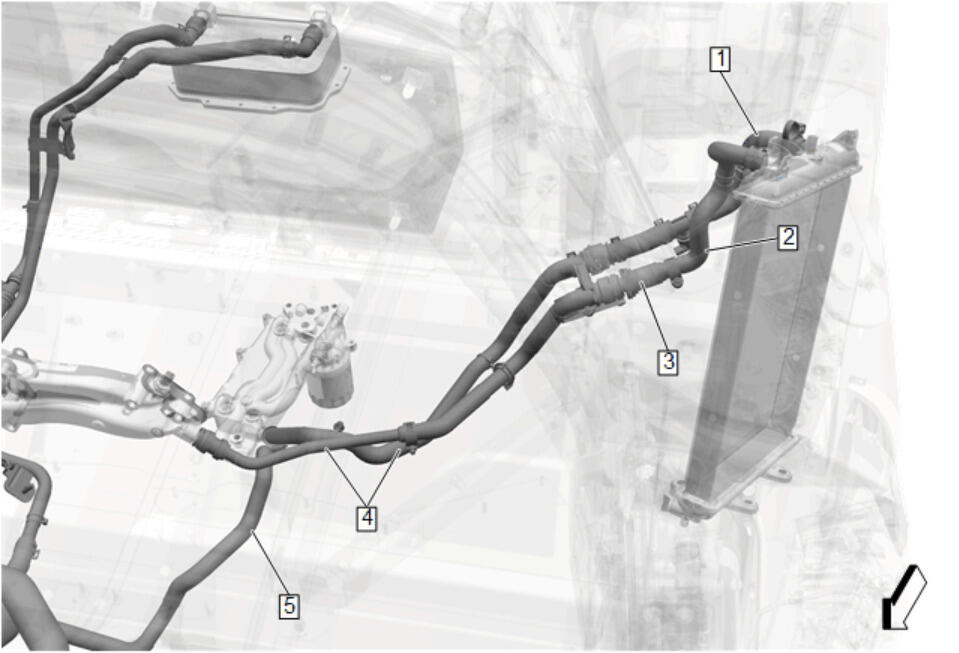

GM5375289Courtesy of GENERAL MOTORS COMPANY
Left Side Rear Hose Locator View - with V09

Callout Component Name
1 Engine Oil Cooler Coolant Outlet Hose Replacement (with V09)
2 Radiator Inlet Hose Replacement - Engine Auxiliary Radiator to Engine Coolant Thermostat (with V09)
3 Engine Coolant Thermostat Replacement - Radiator Inlet Hose to Auxiliary Radiator Inlet Pipe (with V09)
4 Auxiliary Radiator Inlet Pipe Replacement (with V09)
5 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe with V08, V09) , or Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible)

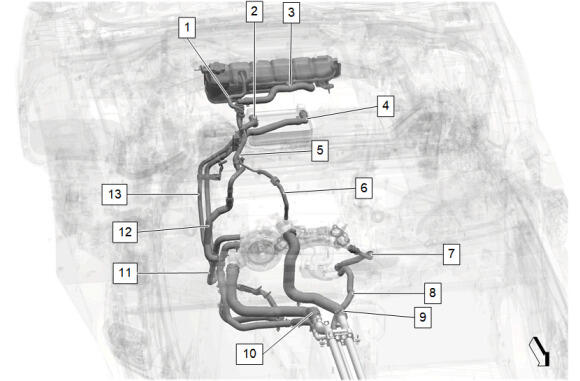

Fig 2: Identifying Right Side Rear Hose Components (Convertible Without V08 And V09)
GM5641104Courtesy of GENERAL MOTORS COMPANY
Right Side Rear Hose Locator View - Convertible without V08 and V09

Callout Component Name
1 Radiator Surge Tank Inlet Hose Replacement - Radiator Surge Tank (Convertible)
2 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Convertible)
3 Radiator Surge Tank Outlet Hose Replacement - Radiator Surge Tank (Convertible)
4 Radiator Inlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Convertible)
5 Radiator Surge Tank Outlet Pipe Replacement (Convertible)
6 Radiator Surge Tank Inlet Hose Replacement - Engine Coolant Manifold (Convertible)
7 Water Pump Outlet Pipe Replacement - Engine Coolant Manifold to Engine Oil Cooler Adapter (without V09)
8 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible)
9 Radiator Inlet Hose Replacement - A/C Tube to Engine Coolant Manifold (Convertible)
10 Radiator Outlet Hose Replacement - A/C Tube to Water Pump Inlet
11 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible without V08, V09)
12 Radiator Surge Tank Outlet Hose Replacement - Water Pump Inlet Hose Fitting (Convertible)
13 Water Pump Outlet Pipe Replacement - Radiator Outlet Hose to Radiator Outlet Hose to Radiator Outlet Hose to Radiator Inlet Hose (Convertible without V08, V09)

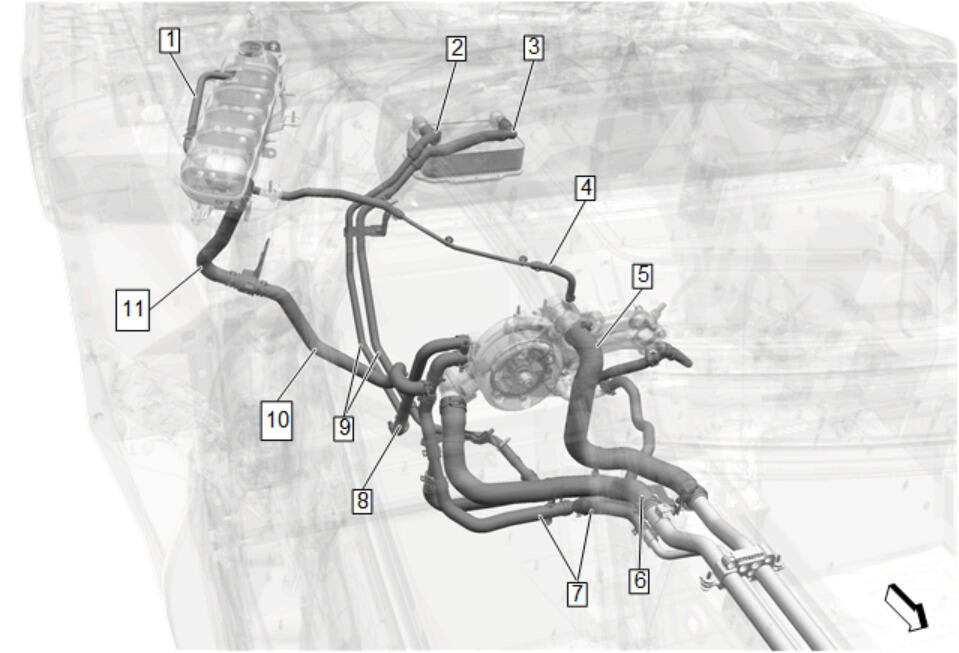

Fig 3: Identifying Right Side Rear Hose Components (Coupe Without V08 And V09)
GM5375291Courtesy of GENERAL MOTORS COMPANY
Right Side Rear Hose Locator View - Coupe without V08 and V09

Callout Component Name
1 Radiator Surge Tank Inlet Hose Replacement - Radiator Surge Tank (Coupe)
2 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Coupe)
3 Radiator Inlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Coupe)
4 Radiator Surge Tank Inlet Hose Replacement - Engine Coolant Manifold (Coupe without V08, V09)
5 Radiator Inlet Hose Replacement - A/C Tube to Engine Coolant Manifold (Coupe)
6 Radiator Outlet Hose Replacement - A/C Tube to Water Pump Inlet
7 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe without V08)
8 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe without V08, V09)
9 Water Pump Outlet Pipe Replacement - Radiator Outlet Hose to Radiator Outlet Hose to Radiator Outlet Hose to Radiator Inlet Hose (Coupe without V08, V09)
10 Water Pump Inlet Hose Replacement (without V08, V09)
11 Radiator Surge Tank Outlet Hose Replacement (Coupe without V08, V09)

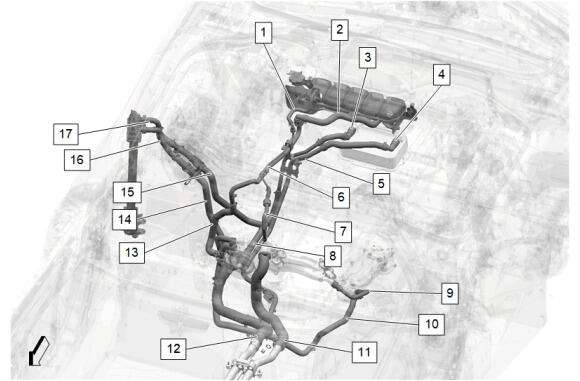

Fig 4: Identifying Right Side Rear Hose Components (Convertible With V08 And V09)
GM5641102Courtesy of GENERAL MOTORS COMPANY
Right Side Rear Hose Locator View - Convertible with V08 and V09

Callout Component Name
1 Radiator Surge Tank Inlet Hose Replacement - Radiator Surge Tank (Convertible)
2 Radiator Surge Tank Outlet Hose Replacement - Radiator Surge Tank (Convertible)
3 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Convertible)
4 Radiator Inlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Convertible)
5 Water Pump Outlet Pipe Replacement - Radiator Outlet Hose to Radiator Outlet Hose to Radiator Outlet Hose to Radiator Inlet Hose (Convertible with V08, V09)
6 Radiator Surge Tank Outlet Pipe Replacement (Convertible)
7 Radiator Surge Tank Inlet Hose Replacement - Engine Coolant Manifold (Convertible)
8 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible with V08, V09)
9 Water Pump Outlet Pipe Replacement - Engine Coolant Manifold to Engine Oil Cooler Adapter (without V09)
10 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Convertible)
11 Radiator Inlet Hose Replacement - A/C Tube to Engine Coolant Manifold (Convertible)
12 Radiator Outlet Hose Replacement - A/C Tube to Water Pump Inlet
13 Radiator Surge Tank Outlet Hose Replacement - Water Pump Inlet Hose Fitting (Convertible)
14 Auxiliary Radiator Inlet Hose Replacement - Radiator Outlet Hose to Engine Coolant Thermostat (Convertible with V08, V09)
15 Auxiliary Radiator Outlet Hose Replacement - Radiator Outlet Hose to Radiator Outlet Hose (Convertible with V08, V09)
16 Auxiliary Radiator Inlet Hose Replacement - Engine Auxiliary Radiator (Convertible with V08, V09)
17 Radiator Outlet Hose Replacement - Auxiliary Radiator to Auxiliary Radiator Outlet Hose (Convertible with V08, V09)

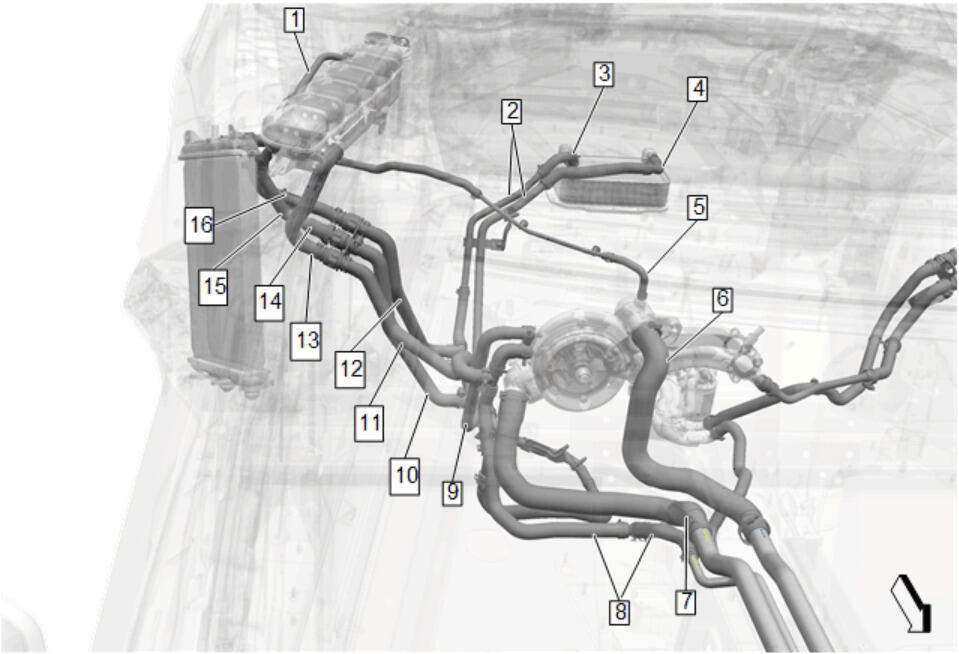

Fig 5: Identifying Right Side Rear Hose Components (Coupe With V08 And V09)
GM5375292Courtesy of GENERAL MOTORS COMPANY
Right Side Rear Hose Locator View - Coupe with V08 and V09

Callout Component Name
1 Radiator Surge Tank Inlet Hose Replacement - Radiator Surge Tank (Coupe)
2 Water Pump Outlet Pipe Replacement - Radiator Outlet Hose to Radiator Outlet Hose to Radiator Outlet Hose to Radiator Inlet Hose (Coupe with V08, V09)
3 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Coupe)
4 Radiator Inlet Hose Replacement - Water Pump Outlet Pipe to Transmission Cooler (Coupe)
5 Radiator Surge Tank Inlet Hose Replacement - Engine Coolant Manifold (Coupe with V08, V09)
6 Radiator Inlet Hose Replacement - A/C Tube to Engine Coolant Manifold (Coupe)
7 Radiator Outlet Hose Replacement - A/C Tube to Water Pump Inlet
8 Radiator Outlet Hose Replacement - A/C Tube to Engine Oil Cooler Adapter to Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe with V08, V09)
9 Radiator Outlet Hose Replacement - Water Pump Outlet Pipe to Engine Coolant Manifold (Coupe with V08, V09)
10 Auxiliary Radiator Inlet Hose Replacement - Radiator Outlet Hose to Engine Coolant Thermostat (Coupe with V08, V09)
11 Transmission Fluid Cooler Engine Coolant Hose Replacement (with V08)
12 Auxiliary Radiator Outlet Hose Replacement - Radiator Outlet Hose to Radiator Outlet Hose (Coupe with V08, V09)
13 Radiator Surge Tank Outlet Hose Replacement (Coupe with V08)
14 Engine Coolant Thermostat Replacement - Auxiliary Radiator Inlet Hose to Auxiliary Radiator Inlet Hose
15 Auxiliary Radiator Inlet Hose Replacement - Engine Auxiliary Radiator (Coupe with V08, V09)
16 Radiator Outlet Hose Replacement - Auxiliary Radiator to Auxiliary Radiator Outlet Hose (Coupe with V08, V09)
