Engine Oil Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Cradle Shear Plate Replacement

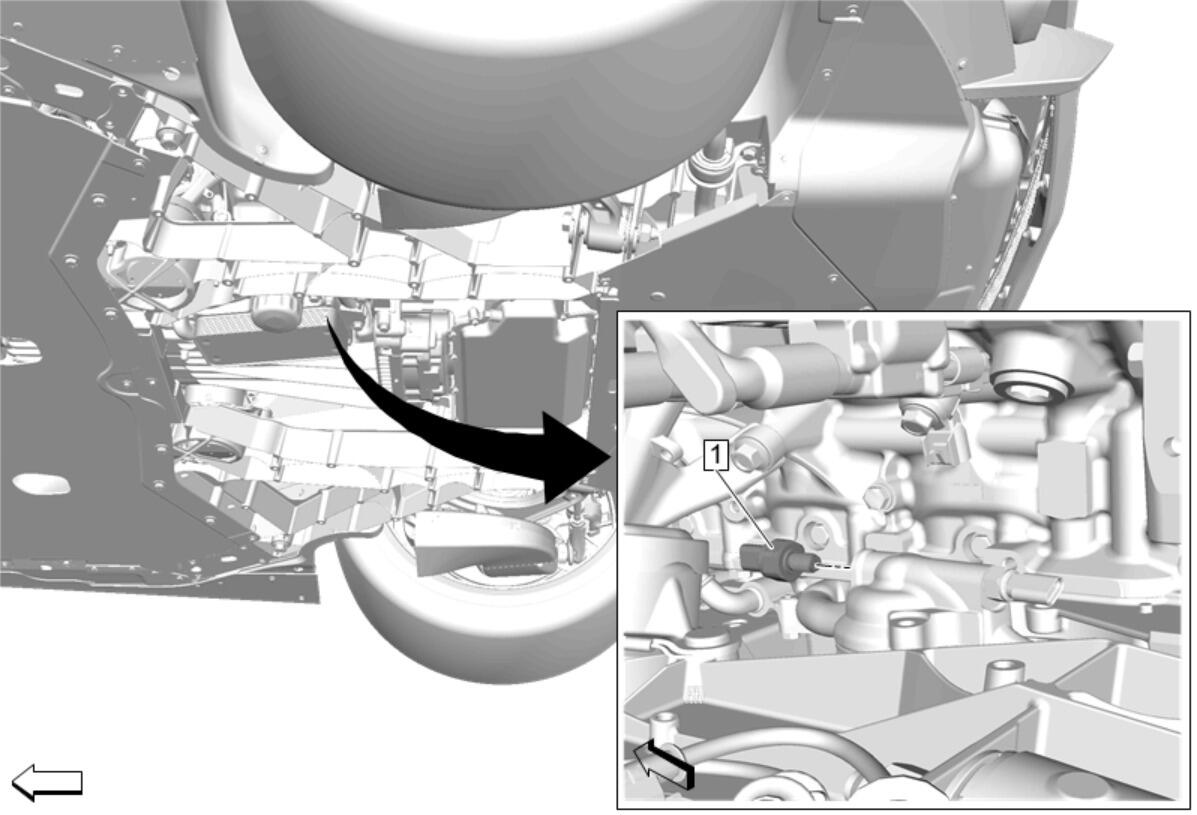

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector. Tighten  35 N.m (26 lb ft)
