Removal Procedure

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

  1. Fuel Tank-Left Side - Remove - Fuel Tank Replacement - Left Side

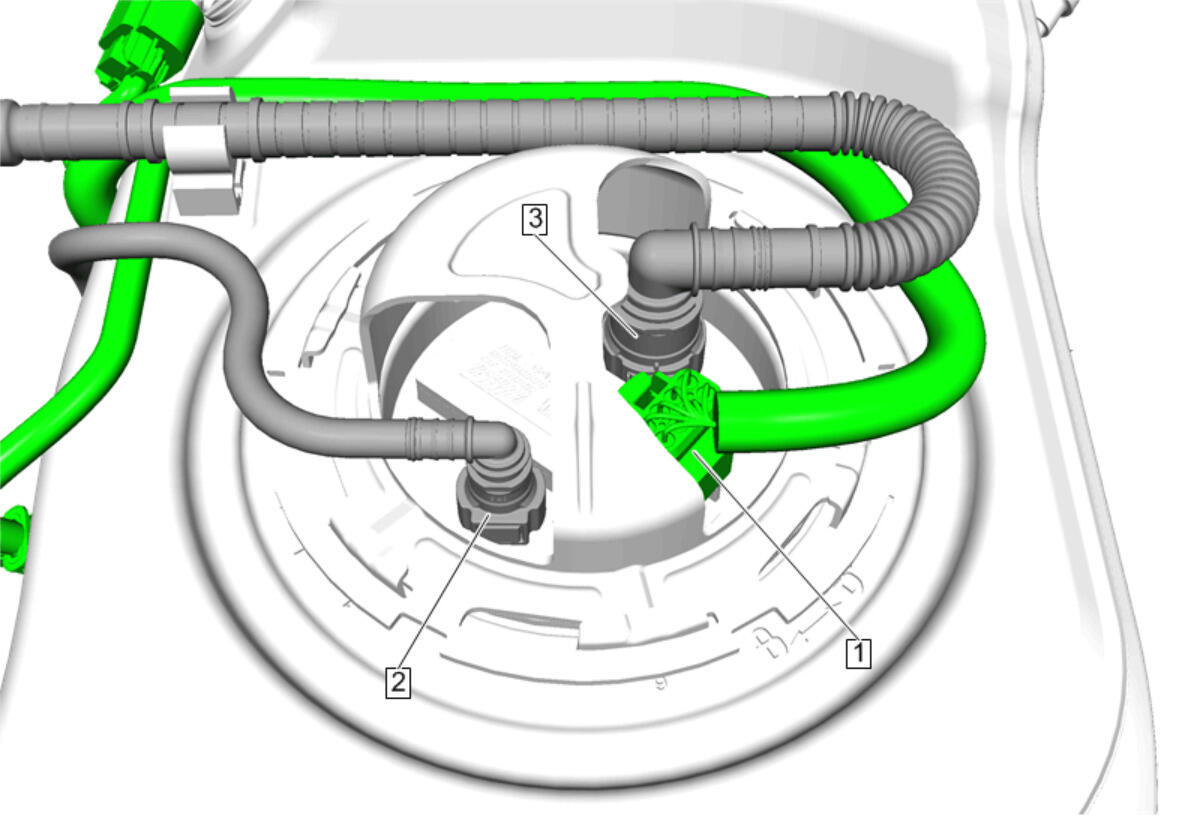

  2. GM5373041Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Wiring Harness (1) - Disconnect

  3. Fuel Feed Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Fuel Feed and Evaporative Emission Pipe (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

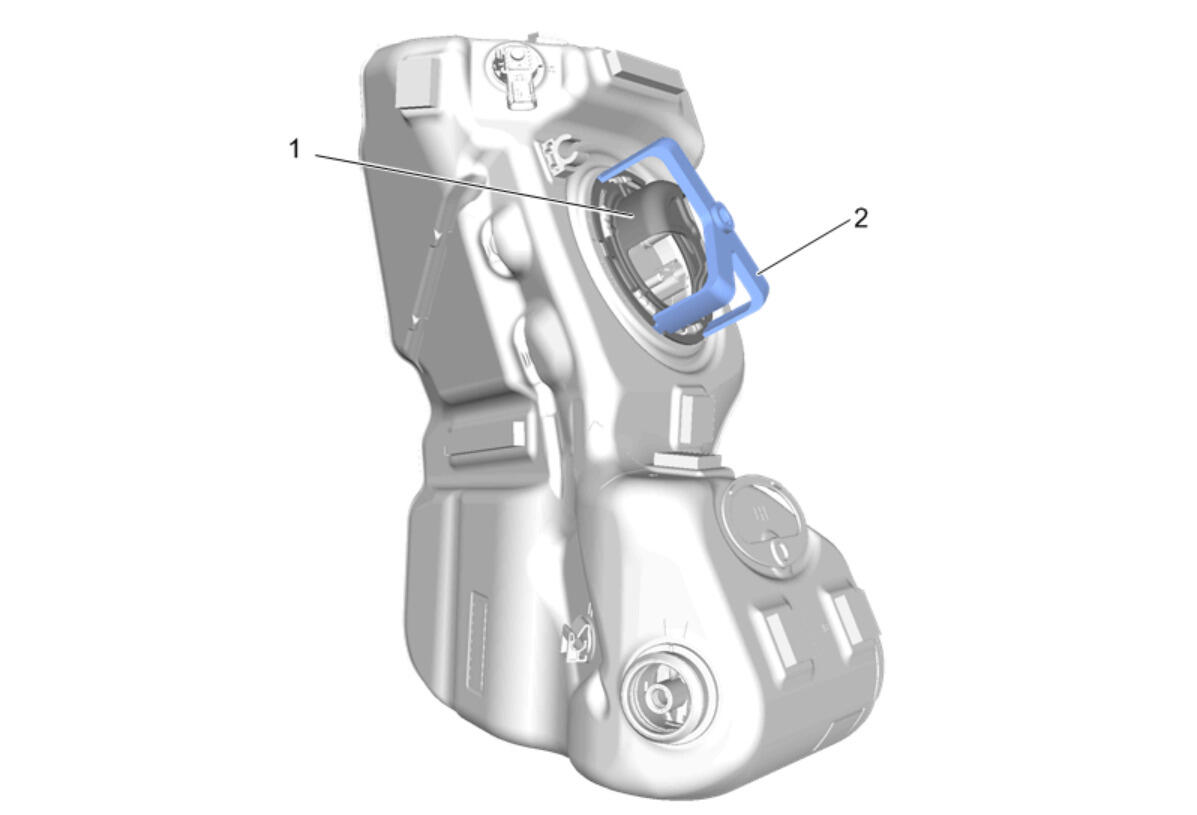

  5. GM5373047Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Lock Ring (1) - Remove - CH-52075  Fuel Pump Lock Ring Wrench (2)

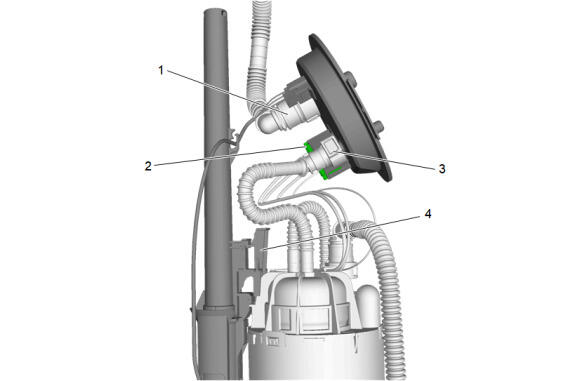

  6. GM5607258Courtesy of GENERAL MOTORS COMPANY

    Vent Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  7. Electrical Connector (2) - Disconnect
  8. Fuel Pump (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
  9. Retaining Clip (4) - Unclip

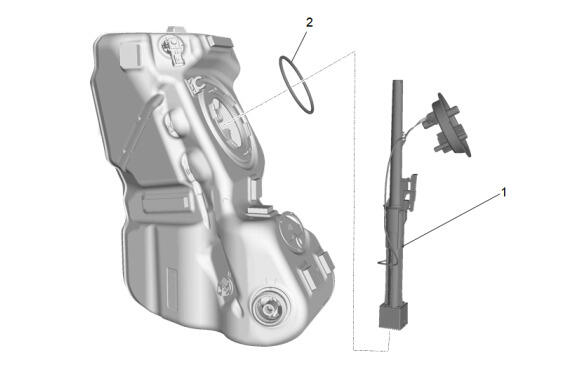

  10. GM5607260Courtesy of GENERAL MOTORS COMPANY

    Fuel Level Sensor (1) - Remove

  11. Fuel Pump Seal (2) - Remove and DISCARD

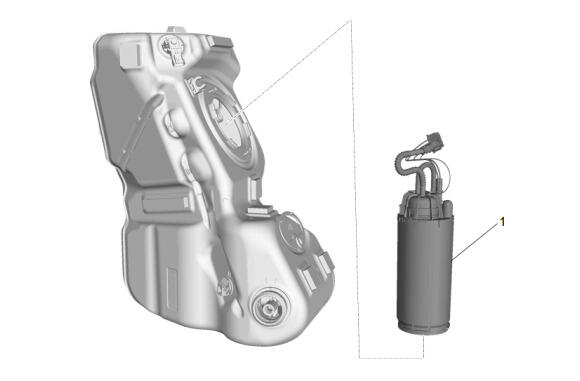

  12. GM5607264Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Rotate module counter clockwise to unlock from the base of the tank.

    Fuel Tank Fuel Pump Module (1) - Remove
