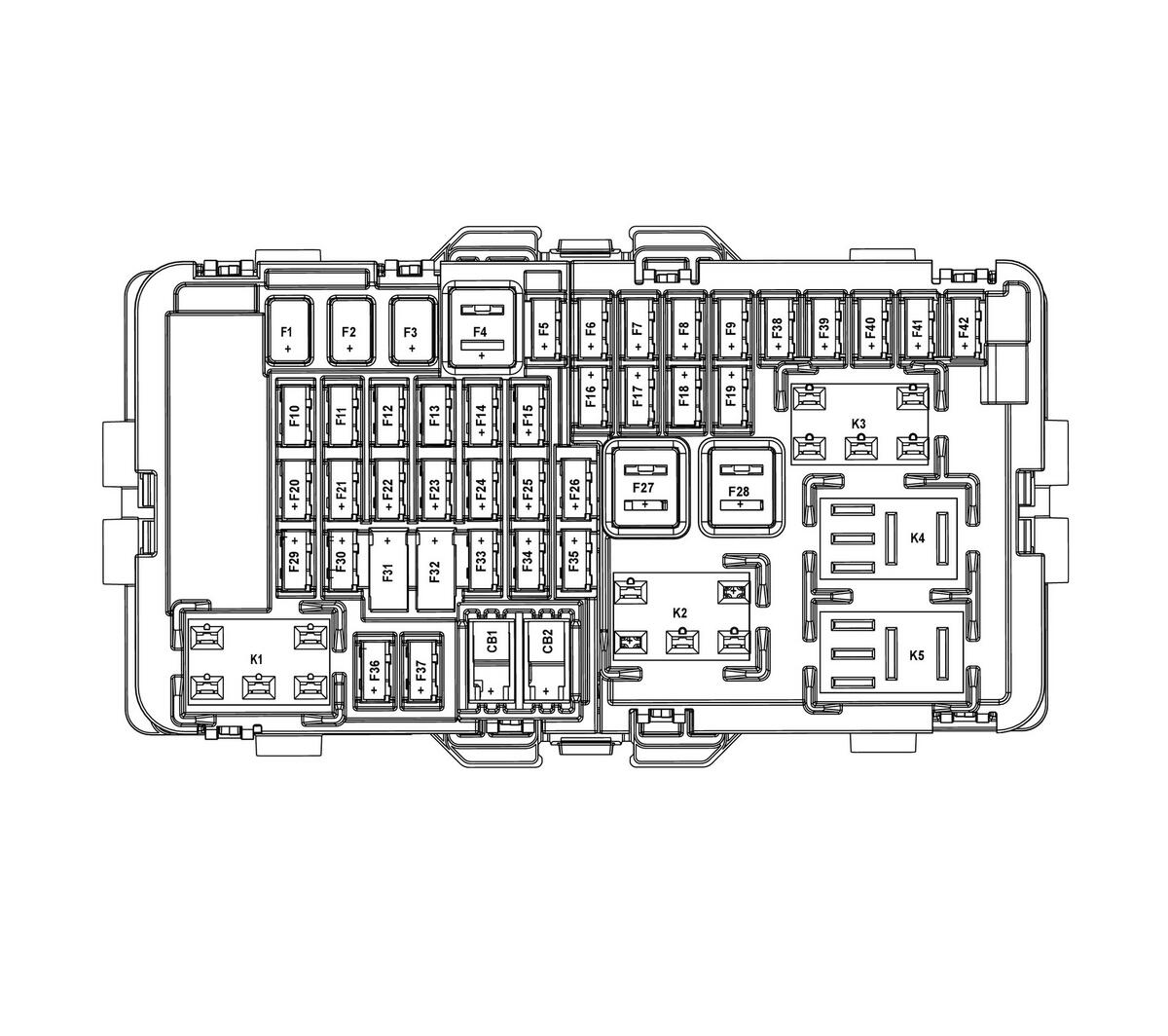

X51A Fuse Block - Instrument Panel Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
F1	DC AC INV	F1DA Fuse	20A	T1 Accessory DC/AC Power Inverter Module (KI6) T1 Accessory DC/AC Power Inverter Module (KI7)
F2	FT WDO	F2DA Fuse	30A	M35D Window Motor Module - Driver (AXG) S79P Window Switch - Passenger (AXG)
F3	TRLR BRK	F3DA Fuse	30A	W24 Blunt Cut - Trailer Brakes Provision (V92)
F4	HVAC BLWR	F4DA Fuse	40A	M8 Blower Motor
F5	BCM 2	F5DA Fuse	15A	K9 Body Control Module
F6	CYB SEC	F6DA Fuse	5A	K56 Serial Data Gateway Module
F7	SPARE	F7DA Fuse	10A	Not Used
F8	BCM 3	F8DA Fuse	20A	K9 Body Control Module
F9	AMPLIFIER	F9DA Fuse	20A	T3 Audio Amplifier
F10	SPARE	F10DA Fuse	30A	Not Used
F11	SPARE	F11DA Fuse	30A	Not Used
F12	SPARE	F12DA Fuse	30A	Not Used
F13	SPARE	F13DA Fuse	30A	Not Used
F14	E SHIFT	F14DA Fuse	5A	A97 Transmission Range Selector Controls (EPH)
F15	TCM SS	F15DA Fuse	20A	K71 Transmission Control Module (M3D/M3H/M3U) Q8?Control Solenoid Valve Assembly (MHG/MNH/MNK)
F16	F SEAT HT1	F16DA Fuse	15A	K29F Seat Heating Control Module - Front (KA1)
F17	DLC LEFT	F17DA Fuse	10A	X84 Data Link Connector
F18	BCM 7	F18DA Fuse	15A	K9 Body Control Module
F19	OSRVM	F19DA Fuse	7.5A	B177 Rain/Ambient Light Sensor Module S79D Window Switch - Driver (AXG)
F20	BCM 1	F20DA Fuse	15A	K9 Body Control Module
F21	BCM 4	F21DA Fuse	20A	K9 Body Control Module
F22	BCM 6	F22DA Fuse	20A	K9 Body Control Module
F23	ESCL	F23DA Fuse	10A	Not Used
F24	SDM	F24DA Fuse	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
F25	OCC SENS	F25DA Fuse	5A	K85 Passenger Presence Module (AL0)
F26	SPARE	F26DA Fuse	30A	Not Used
F27	PWR SEAT	F27DA Fuse	30A	K40 Seat Memory Control Module (A45/A74) S64D Seat Adjuster Switch - Driver (AG1)
F28	RR WDO	F28DA Fuse	30A	S79LR Window Switch - Left Rear (AEQ) S79RR Window Switch - Right Rear (AEQ)
F29	SPARE	F29DA Fuse	30A	Not Used
F30	FRT HT SW	F30DA Fuse	5A	S32D Seat Heating Switch - Driver (Z88+KA1) S32P Seat Heating Switch - Passenger (Z88+KA1)
F31	SWC	F31DA Fuse	2A	X85 Steering Wheel Air Bag Coil S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
F32	BCM 8	F32DA Fuse	20A	K9 Body Control Module
F33	HVAC	F33DA Fuse	10A	B10B Ambient Light/Sunload Sensor (CJ2 - UE1) K33 HVAC Control Module
F34	PEPS	F34DA Fuse	5A	K84 Keyless Entry Control Module
F35	LG LATCH	F35DA Fuse	7.5A	KR95A Liftgate Unlatch Relay
F36	SHFT CHRG	F36DA Fuse	7.5A	T22 Mobile Device Wireless Charger Module (K4C) X92 USB Receptacle (USS)
F37	CIGLTR	F37DA Fuse	20A	E32 Cigarette Lighter Receptacle (SAO/U37) X80G Accessory Power Receptacle - Instrument Panel (KC5)
F38	ONSTAR LM1	F38DA Fuse	5A	K73 Telematics Communication Interface Control Module (UE1)
F39	IPC USB LM2	F39DA Fuse	10A	P16 Instrument Cluster X83 Auxiliary Audio Input (MCZ) X92 USB Receptacle
F40	CAM LGM VPM	F40DA Fuse	10A	B174W Frontview Camera - Windshield (UEU/UHX) K39 Liftgate Control Module (TB5) K157 Video Processing Control Module (UVH) K171 Hands-Free Liftgate Sensor - Control Module (TC2)
F41	DSP HMI LM5	F41DA Fuse	10A	A26 HVAC Controls A98 Front Overhead Console Assembly K74 Human Machine Interface Control Module (IO5/IO6) K182 Parking Assist Control Module (UD5/UD7) K188 Human Machine Interface Control Module Bypass Module (IO5/IO6 +MAH/MBC) P17 Info Display Module S25 Garage Door Opener (UG1)
F42	RDO LM3	F42DA Fuse	15A	A11 Radio
Circuit Breakers
CB1	APO FRT	CB1DA	15A	Not Used
CB2	APO	CB2DA	15A	X80L Accessory Power Receptacle - Center Console Rear (KPA)
Relays
K01	DEADBOLT	-	-	Not Used
K02	RAP/ACCY	KR76 Retained Accessory Power Relay	-	CB2DA F36DA F37DA
K03	LFTGATE	KR95A Liftgate Unlatch Relay	-	M30 Liftgate Latch (TB4)
K04	FUEL DOOR	-	-	Not Used
K05	LOGISTICS	KR104A Battery Saver Relay 1	-	F38DA F39DA F40DA F41DA F42DA
