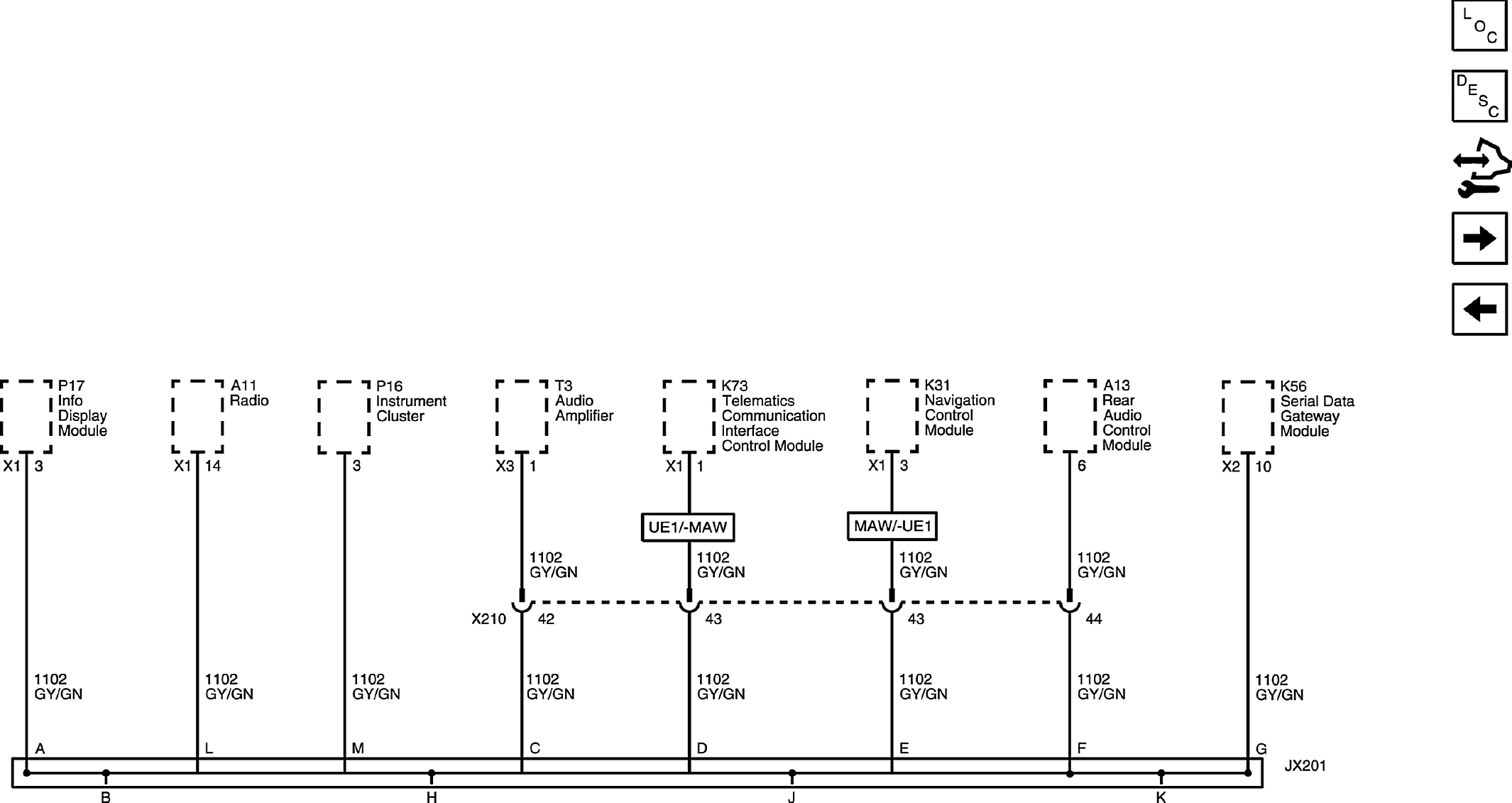

Home › Chevrolet › 2020 › Impala LT › Repair and Diagnosis › Engine Performance › System › Data Communications › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Isolated Low Speed GMLAN
