Rear Compartment Lid Latch Release Cable Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

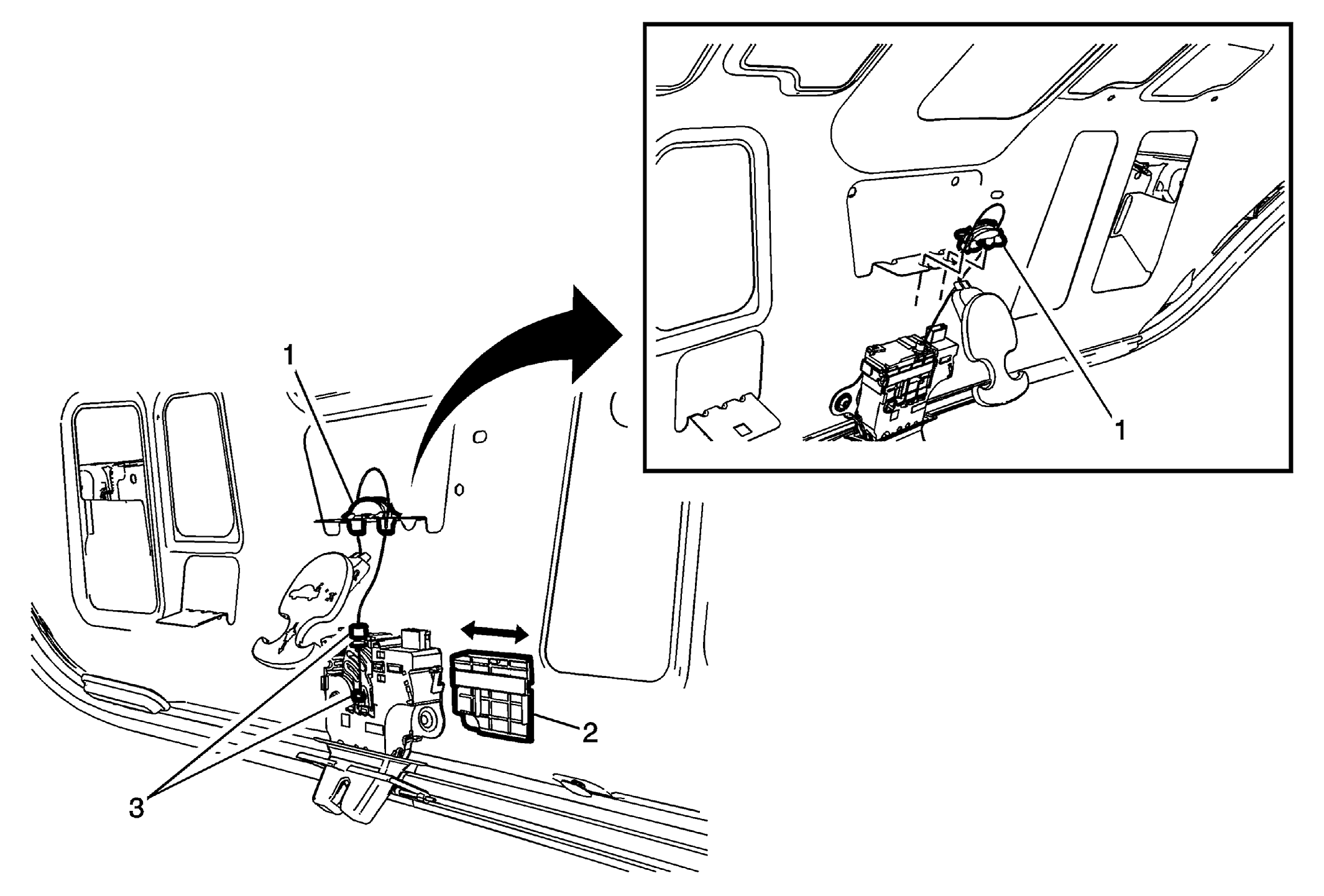

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Inside Handle Pivot Procedure  Disconnect the rear compartment lid latch inside handle pivot from the inner rear compartment lid.
2	Rear Compartment Lid Latch Access Cover Procedure  Depress the retainers and slide the rear compartment lid latch access cover to the right to access the cable.
3	Rear Compartment Lid Latch Inside Handle Procedure  Disconnect the rear compartment lid inside handle cable from the latch.
