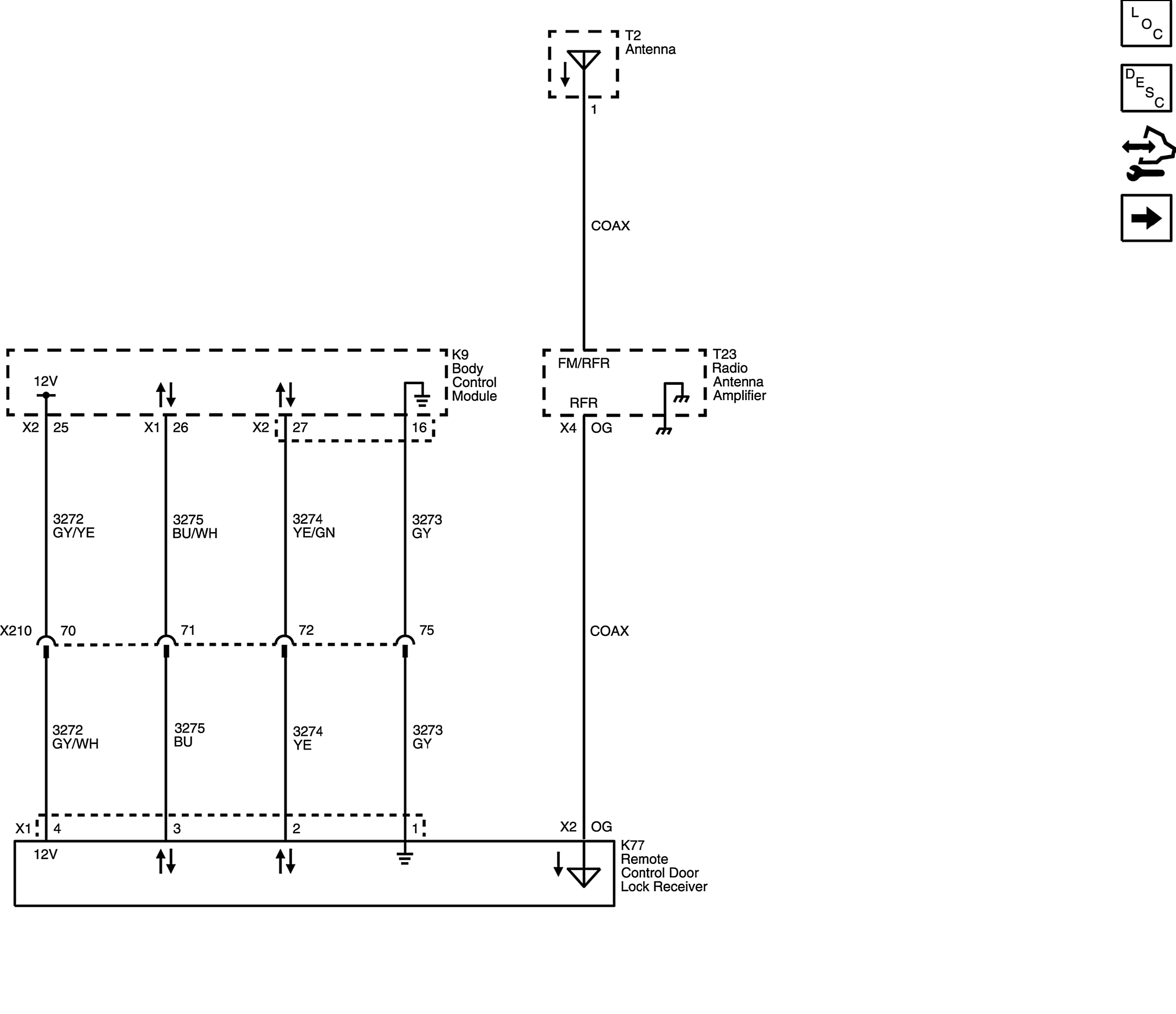

Home › Chevrolet › 2020 › Impala Premier › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Wiring Schematic Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
