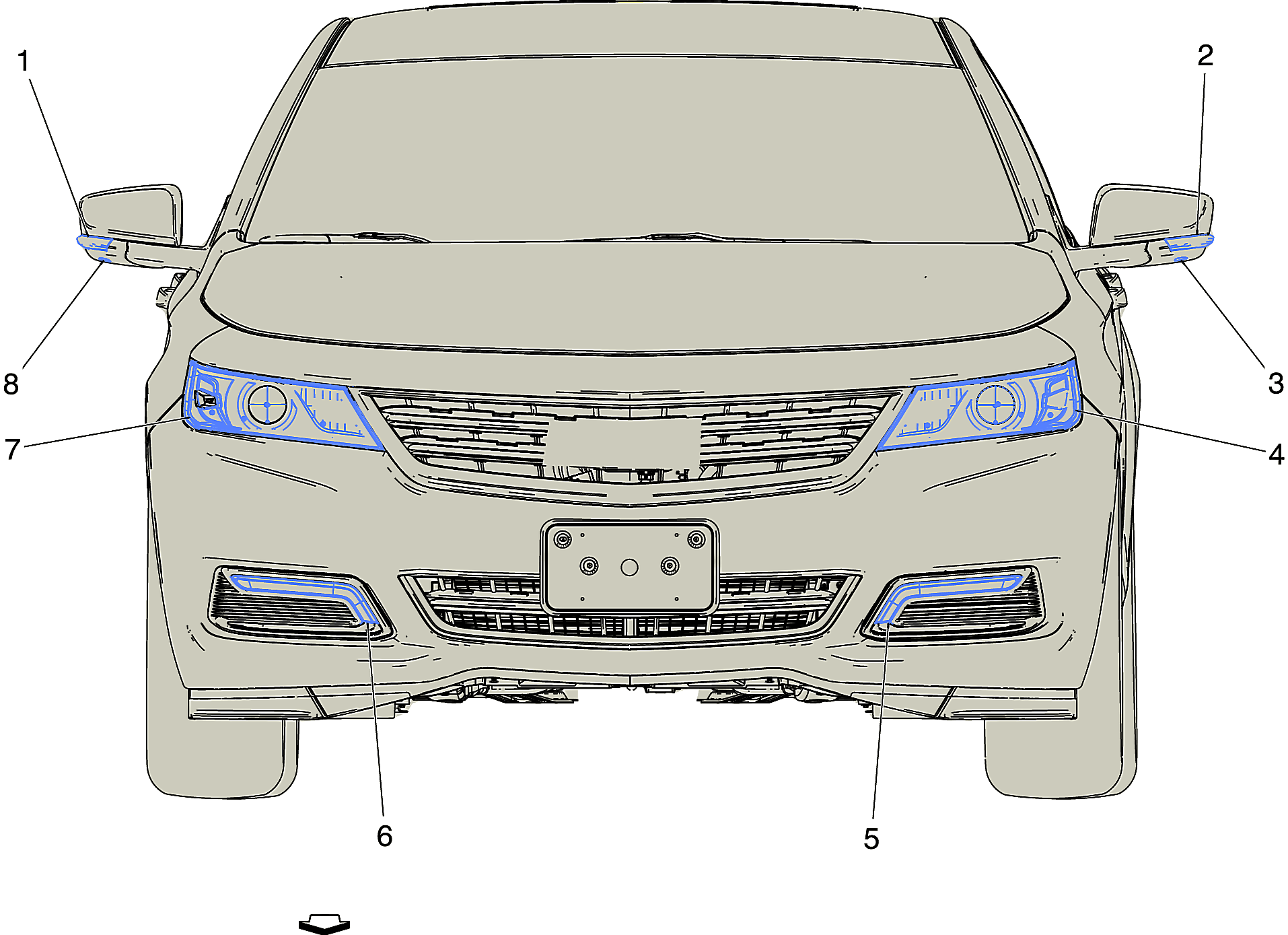

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4Z Turn Signal Repeater Lamp - Right (DLG or DLL) | 1 |
| E4Y Turn Signal Repeater Lamp - Left (DLG or DLL) | 2 |
| E66P Outside Rearview Mirror Lamps Assembly - Passenger (DLG or DLL) E66P Outside Rearview Mirror Lamps Assembly - Passenger | 3 |
| E13LA Headlamp Assembly - Left | 4 |
| E4AC Park/Daytime Running Lamp - Left (9H8) E4AC Park/Daytime Running Lamp - Left | 5 |
| E4AD Park/Daytime Running Lamp - Right (9H8) E4AD Park/Daytime Running Lamp - Right | 6 |
| E13RA Headlamp Assembly - Right | 7 |
| E66D Outside Rearview Mirror Lamps Assembly - Driver (DLG or DLL) E66D Outside Rearview Mirror Lamps Assembly - Driver | 8 |
