Radiator Assembly Components

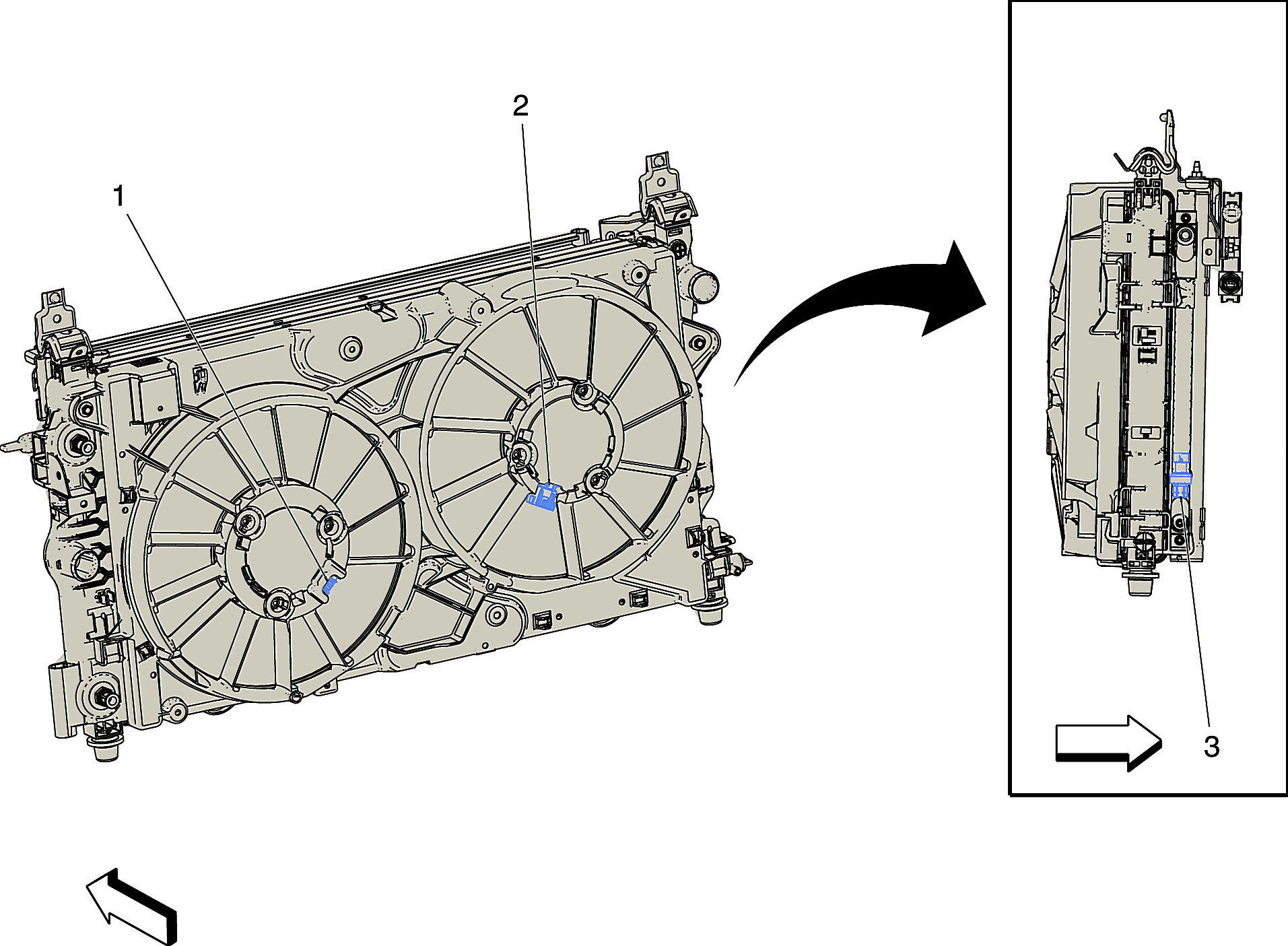

GM3952451Courtesy of GENERAL MOTORS COMPANY
Radiator Assembly Components

Component Name Callout
G10L Cooling Fan Motor - Left G10L Cooling Fan Motor - Left 1
G10R Cooling Fan Motor - Right G10R Cooling Fan Motor - Right 2
B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor 3
