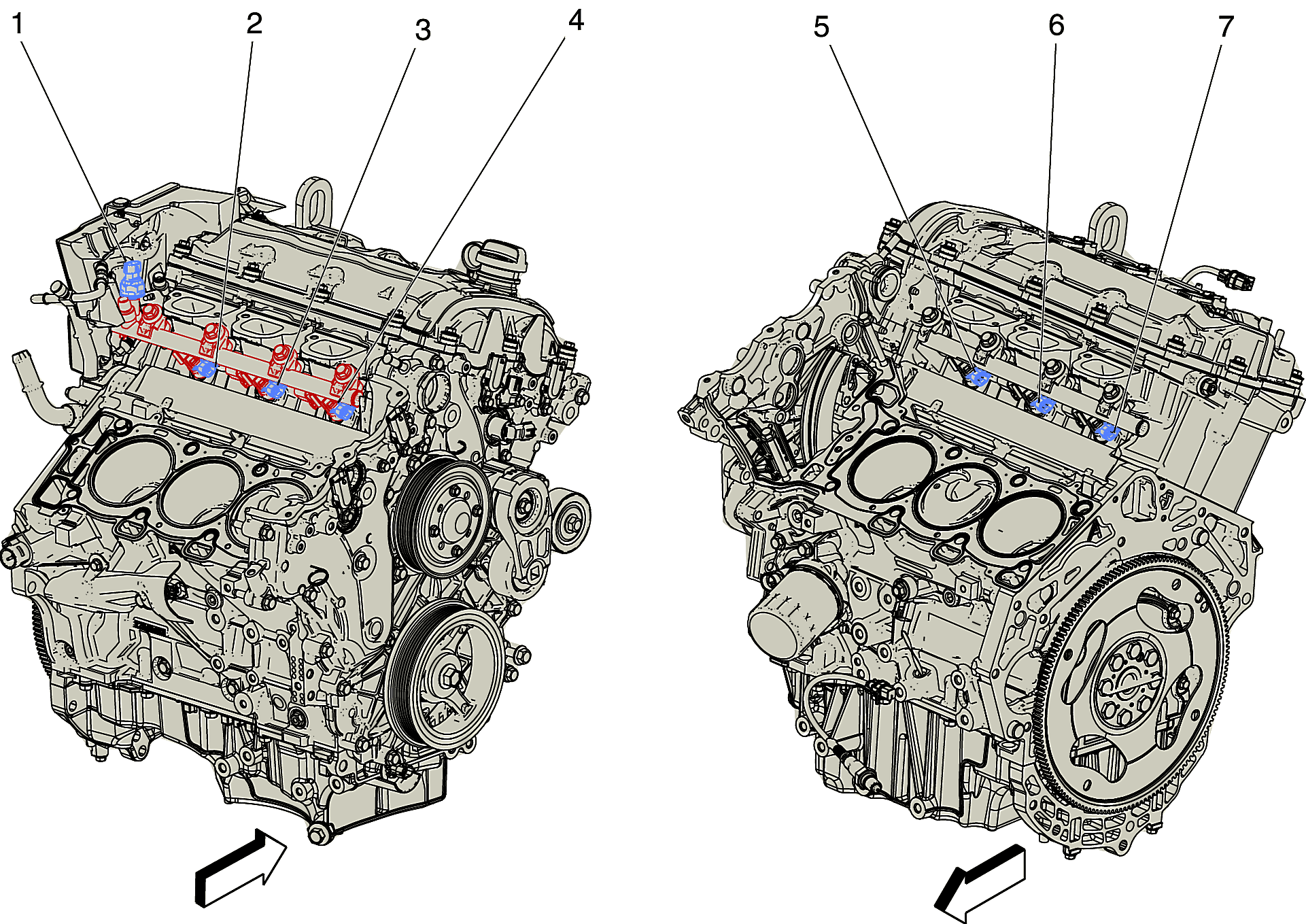

Fuel Rail Components
Fuel Rail Components
| Component Name | Callout |
|---|---|
| B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor | 1 |
| Q17F Fuel Injector 6 Q17F Fuel Injector 6 | 2 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 | 3 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 | 4 |
| Q17E Fuel Injector 5 Q17E Fuel Injector 5 | 5 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 | 6 |
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 | 7 |
