Installation Procedure

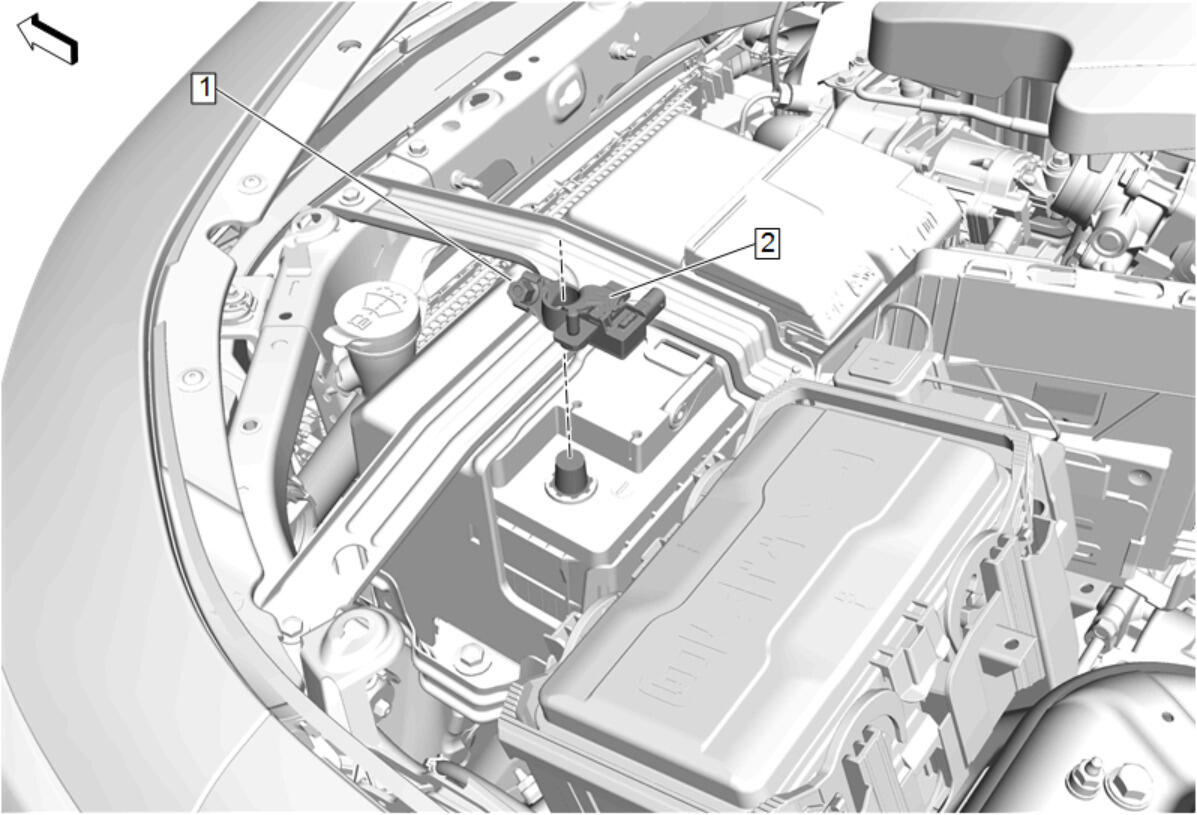

  1. GM5117374Courtesy of GENERAL MOTORS COMPANY

    Battery Sensor (2) - Install

  2. Battery Negative Post Clamp Nut (1) - Tighten - Battery Negative Cable Disconnection and Connection (With KL9)

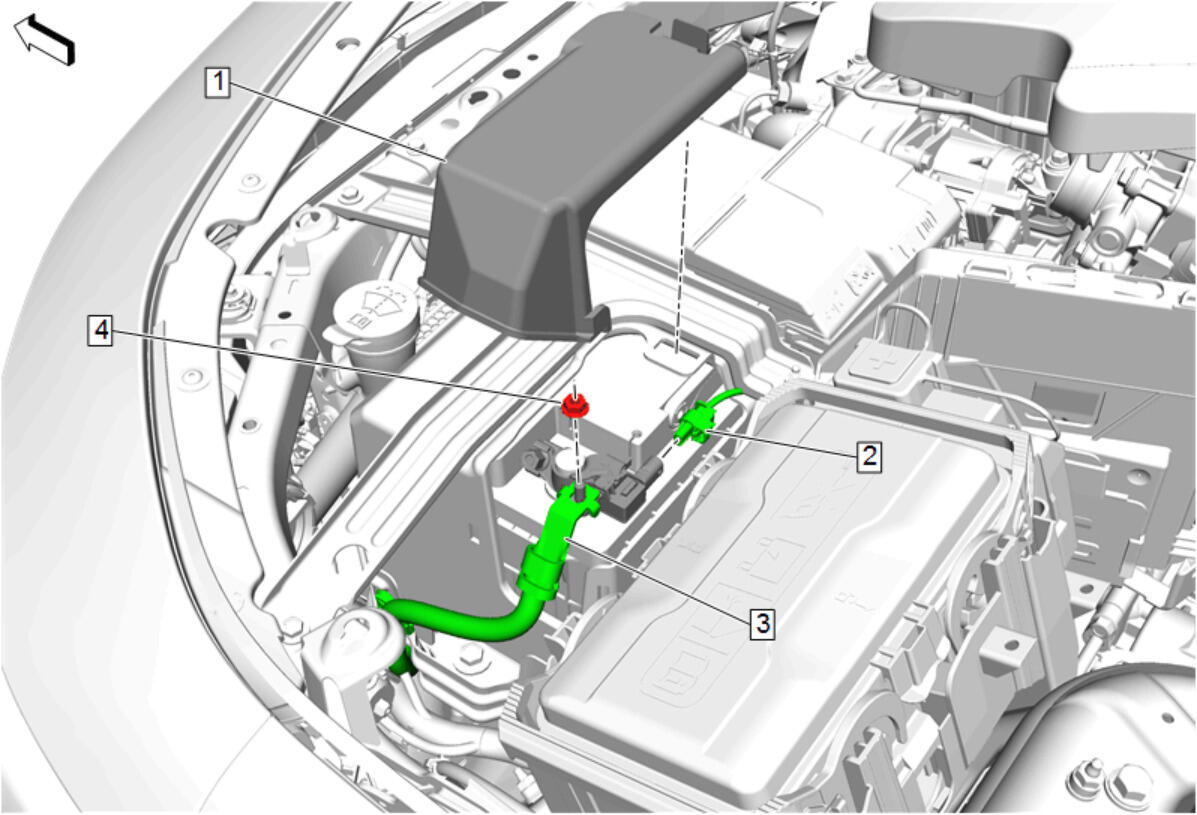

  3. GM5117361Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (3) - Install

    4. CAUTION:

    Refer to Fastener Caution

  4. Battery Negative Cable Nut (4) @ Battery Sensor - Install and tighten 9 N.m (80 lb in)
  5. Electrical Connector (2) - Connect
  6. Battery Negative Cable Terminal Cover (1) - Install
