Battery Positive Junction Block Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

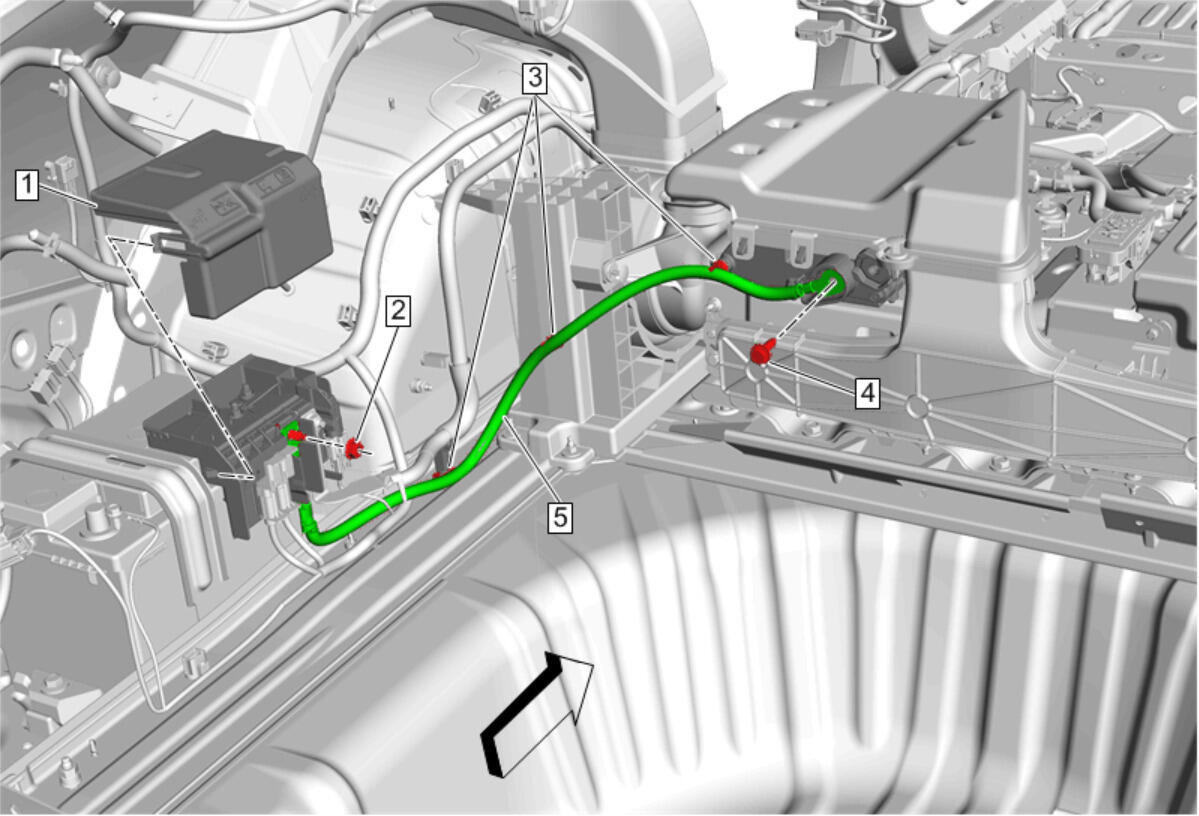

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Left Side Rear Compartment Floor Panel Trim Replacement (Carpet) , or Rear Compartment Floor Panel Trim Replacement (5 Bar Cover) Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
1	Battery Distribution Fuse Block Cover
2	Battery Positive Cable Nut CAUTION: Refer to Fastener Caution Tighten 16 N.m (12 lb ft)
3	Retainer [2X]
4	Battery Positive Cable Bolt Tighten 22 N.m (16 lb ft)
5	Battery Positive Junction Block Cable
