Battery Tray Support Replacement

Courtesy of GENERAL MOTORS COMPANY

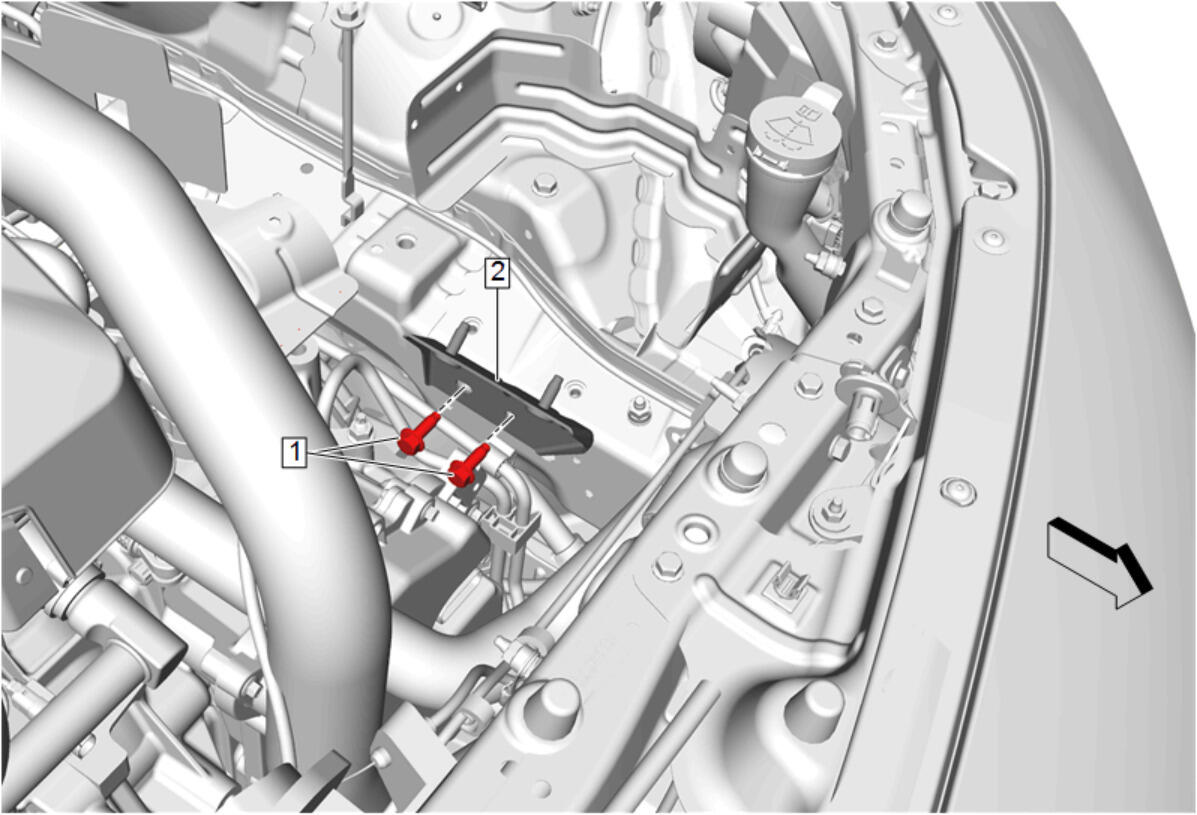

Callout	Component Name
Preliminary Procedure  Battery Tray Replacement (LFV) , or Battery Tray Replacement (LTG)
1	Battery Tray Support Bolt [2x] CAUTION: Fastener Caution Tighten  22 N.m (16 lb ft)
2	Battery Tray Support
