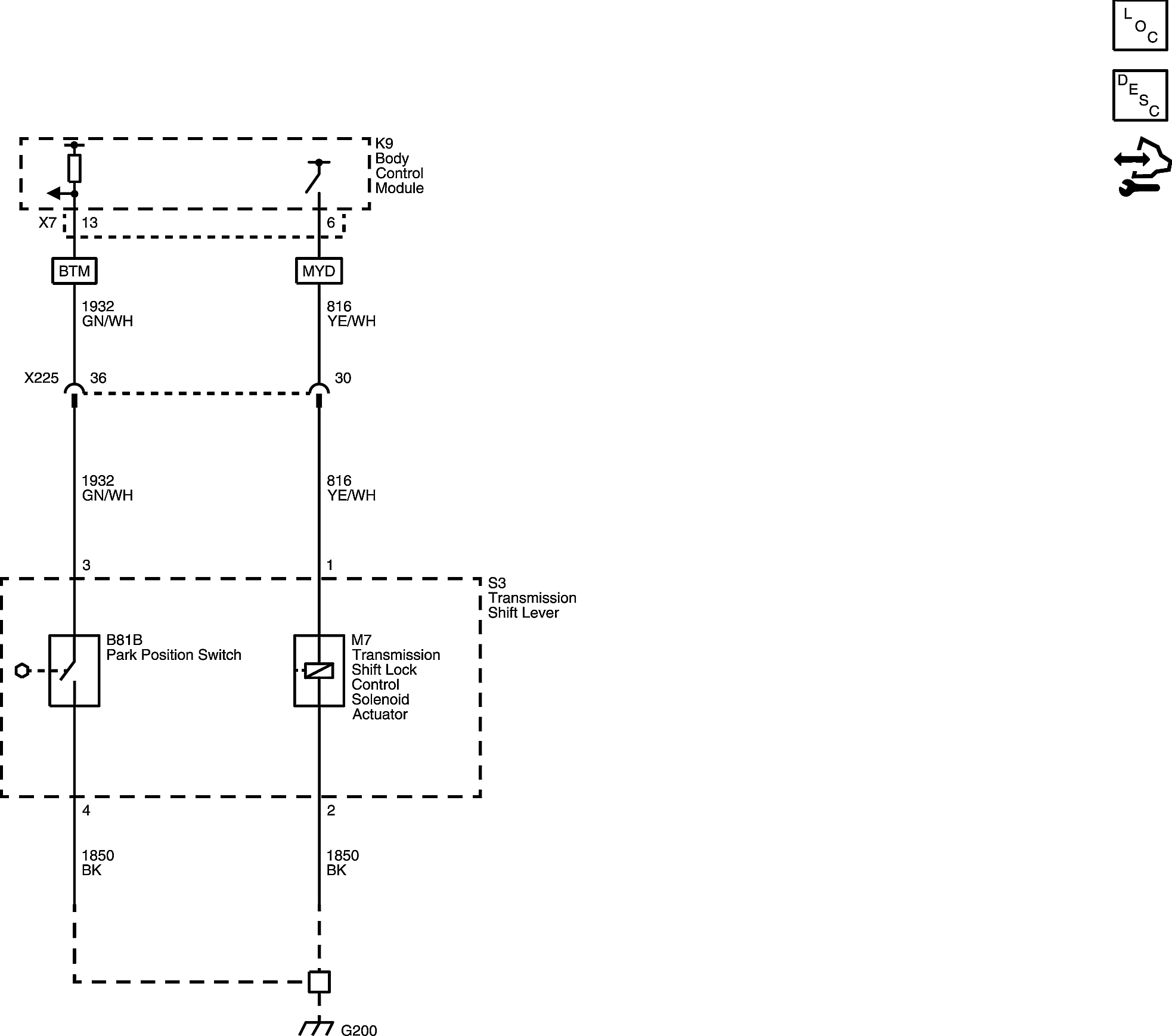

Home › Chevrolet › 2020 › Silverado 2500 HD Custom, 4D Pickup Extra Cab, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
