Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

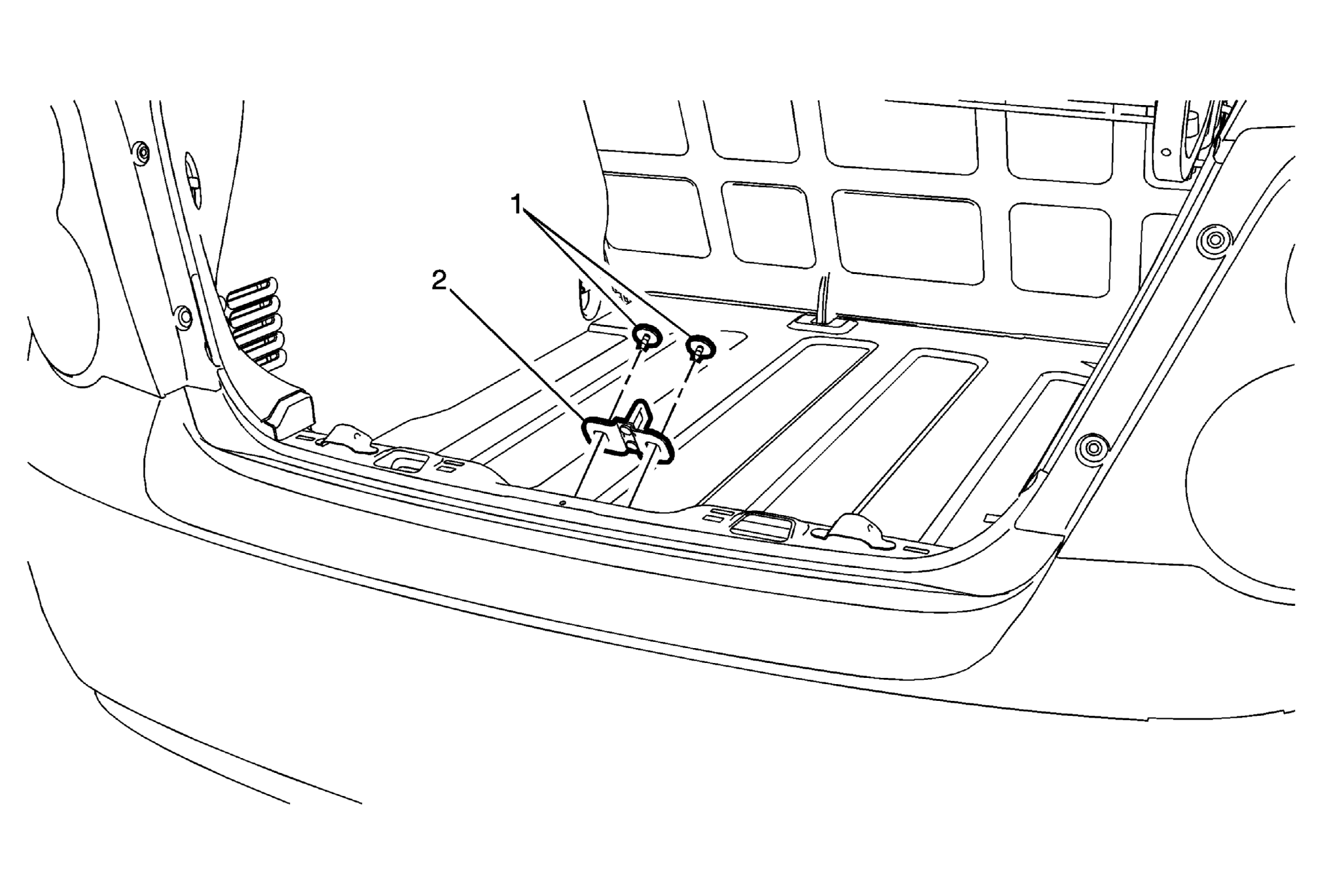

Callout	Component Name
Preliminary Procedure  Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1	Liftgate Latch Striker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Liftgate Latch Striker
