Front Seat Heater Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

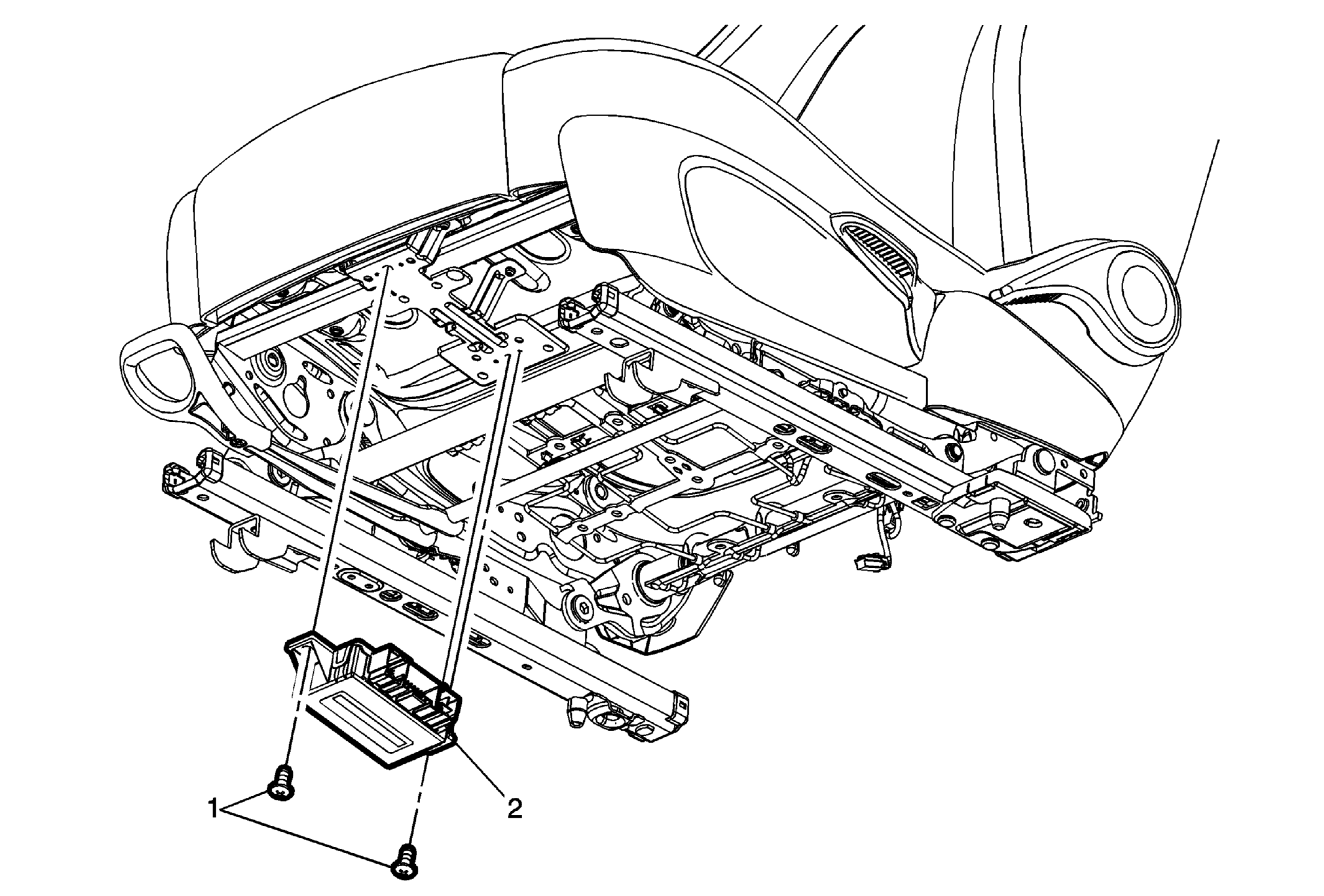

Callout	Component Name
1	Front Seat Heater Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Seat Heater Control Module Procedure Disconnect the electrical connectors. Remove the module from the heater control bracket. Refer to Control Module References for replacement and setup information.

Callout

Component Name

Front Seat Heater Control Module Fastener (Qty: 2)

CAUTION:

Front Seat Heater Control Module

Procedure
