Under Instrument Panel Components

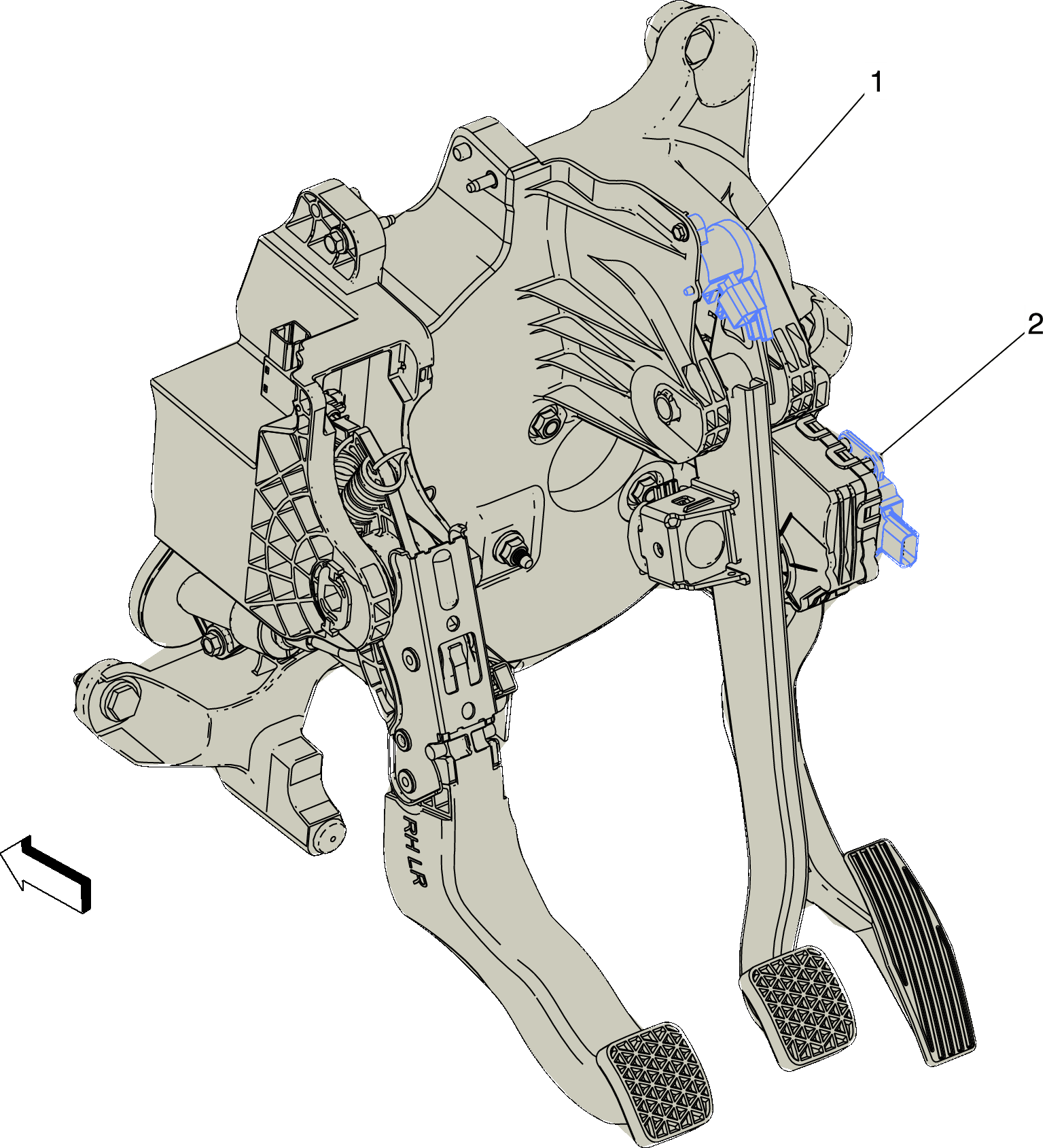

GM5366779Courtesy of GENERAL MOTORS COMPANY
Under Instrument Panel Components

Component Name Callout
B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MH8) 1
B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor 2
