Stop Bulb Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Tail Lamp Replacement (Sedan) Tail Lamp Replacement (Hatchback) .

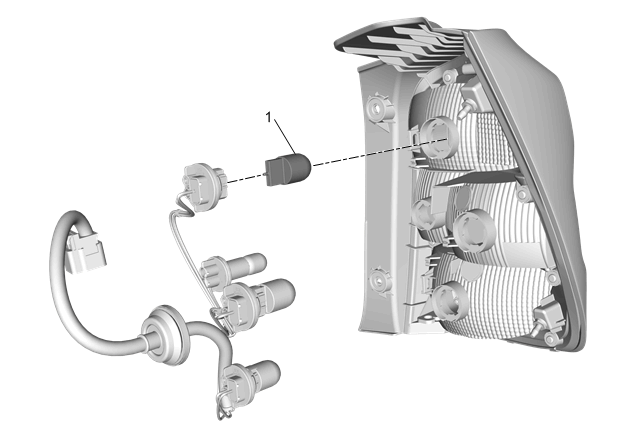

1	Stop Bulb Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. Pull the bulb straight from the lamp socket.

Callout

Component Name

Preliminary Procedure
Tail Lamp Replacement (Sedan) Tail Lamp Replacement (Hatchback) .

Stop Bulb

Procedure

Rotate the bulb socket counterclockwise to remove it from the lamp housing.
Pull the bulb straight from the lamp socket.
