Steering Column Lower Trim Cover Replacement

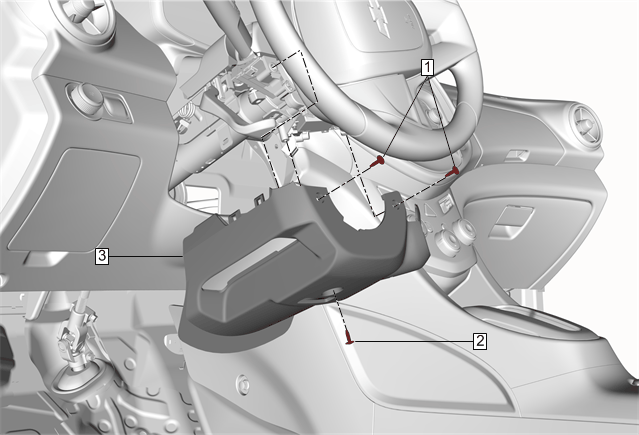

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Steering Column Lower Trim Cover Bolt [2x]
CAUTION:
Refer to Fastener Caution . Procedure Rotate the steering wheel left and right to access the fasteners securing the lower trim cover to the turn signal switch bracket. Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Steering Column Lower Trim Cover Bolt Tighten 2.5 N.m (22 lb in) |
| 3 | Instrument Panel Steering Column Lower Trim Cover |
