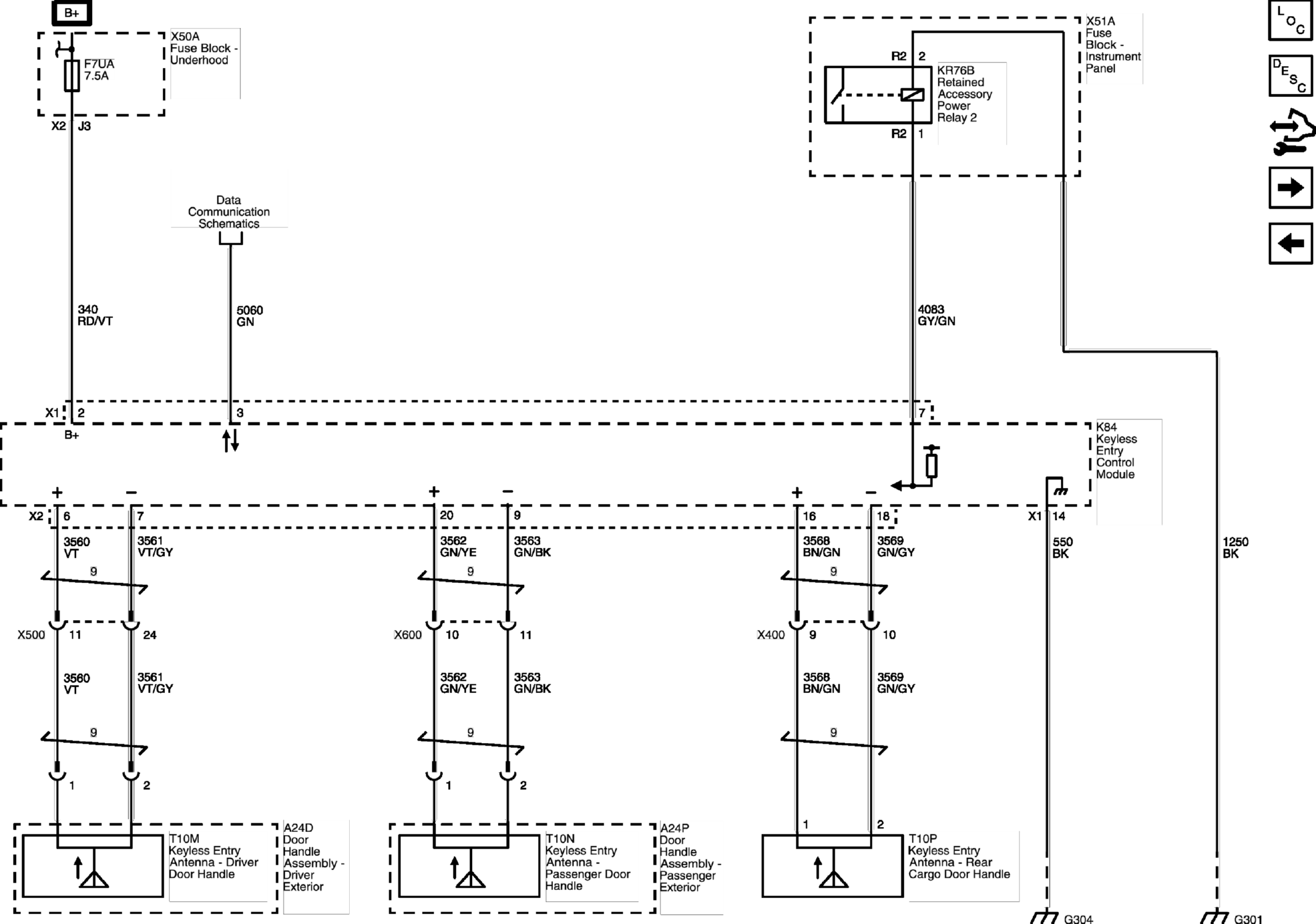

Keyless Entry - Passive Entry (AVJ)
Keyless Entry - Passive Entry (AVJ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
