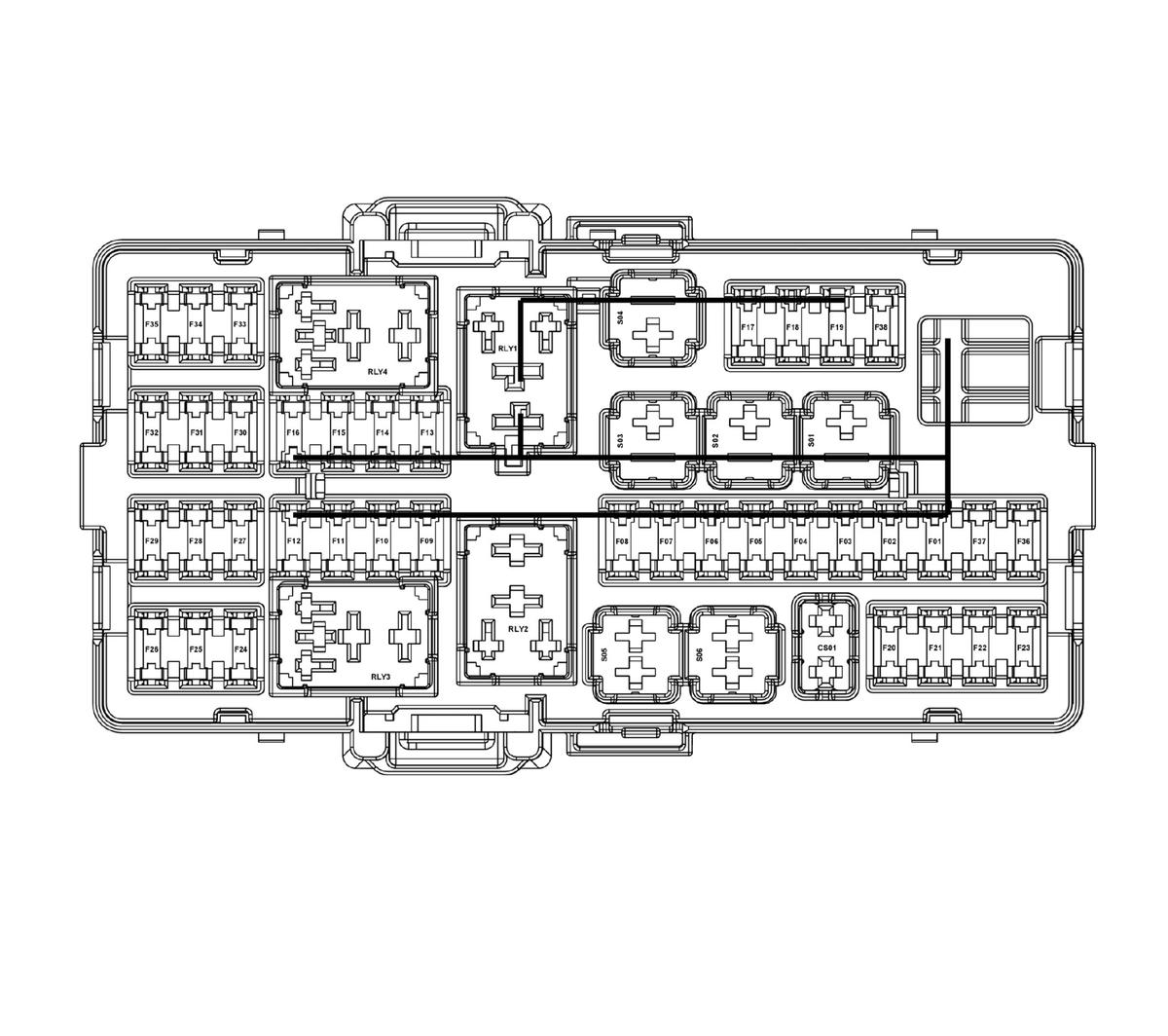

X51A Fuse Block - Instrument Panel Top View

GM5201866Courtesy of GENERAL MOTORS COMPANY
Usage Table

No. Device Label Name Device Assigned Name Rating Description
Fuses
1 BCM1 (AT S and S) F1DA 15 A
  • K9 Body Control Module: E6 Center High Mounted Stop Lamp
  • E7L License Plate Lamp - Left
  • E7R License Plate Lamp - Right
  • E8S Rear Compartment Courtesy Lamp
  • E37F Dome/Reading Lamps - Front
  • K5 Rear Defogger Relay
  • K20 Engine Control Module
  • K33 HVAC Control Module
  • K71 Transmission Control Module
  • S26 Hazard Warning Switch
  • S46 Hazard Warning Switch
  • S48A Multifunction Switch - Instrument Panel,
2 BCM2 (AT S and S) F2DA 15 A
  • K9 Body Control Module: K71 Transmission Control Module
3 BCM3 F3DA 15 A
  • K9 Body Control Module: E2RF Side Marker Lamp - Right Front (T3N)
  • E4K Park Lamp - Right Front (T3N/T7E)
4 BCM4 F4DA 15 A
  • K9 Body Control Module: E2LF Side Marker Lamp - Left Front (T3N)
  • E4J Park Lamp - Left Front (T3N/T7E)
5 BCM5 F5DA 15 A
  • K9 Body Control Module: E4Z Turn Signal Repeater Lamp - Right
  • E4LR Turn Signal Lamp - Left Rear
  • E4P Park/Turn Signal Lamp - Right
  • E4RF Turn Signal Lamp - Right Front
  • E4Y Turn Signal Repeater Lamp - Left (SBV)
  • E4Z Turn Signal Repeater Lamp - Right (SBV)
  • E5AA Tail/Stop Lamp - Left
  • KR6 Rear Window Washer Pump Relay
  • KR7 Rear Wiper Relay
  • KR11 Windshield Washer Pump Relay
  • KR76A Retained Accessory Power Relay 1
  • KR95A Liftgate Unlatch Relay
  • KR104A Battery Saver Relay 1
  • S38 Ignition Mode Switch (AVJ)
6 BCM6 F6DA 15 A
  • K9 Body Control Module: B87 Rearview Camera (UVC)
  • E4RR Turn Signal Lamp - Right Rear
  • E5A Backup Lamp - Left
  • E5B Backup Lamp - Right
  • E37F Dome/Reading Lamps - Front
7 BCM7 F7DA 15 A
  • K9 Body Control Module: E4Y Turn Signal Repeater Lamp - Left
  • E4LF Turn Signal Lamp - Left Front
  • E4LR Turn Signal Lamp - Left Rear
  • KR42L Daytime Running Lamp Relay - Left
  • KR42R Daytime Running Lamp Relay - Right
8 BCM8 F8DA 30 A
  • K9 Body Control Module: M14D Door Lock Actuator - Driver
  • M14P Door Lock Actuator - Passenger
  • M14LR Door Lock Actuator - Left Rear
  • M14RR Door Lock Actuator - Right Rear
9 SDM F9DA 10 A
  • K36 Inflatable Restraint Sensing and Diagnostic Module
10 ESCL F10DA 15 A
  • K60 Steering Column Lock Module (N06)
11 DLC F11DA 7.5 A
  • X84 Data Link Connector
12 SBSA/RPA F12DA 7.5 A
  • K182 Parking Assist Control Module (UD7)
13 FCA F13DA 10 A
  • B174W Frontview Camera - Windshield (UFL)
14 DLIS (AT S and S) F14DA 2 A
  • S39 Ignition Switch (-AVJ)
15 PEPS F15DA 7.5 A
  • K84 Keyless Entry Control Module (AVJ)
16 - F16DA -
  • Not Used
17 HTD/SEAT F17DA 15 A
  • S32 Seat Heating Switch (KA1)
18 HVAC CNTR F18DA 10 A
  • K33 HVAC Control Module
19 - F19DA -
  • Not Used
20 - F20DA -
  • Not Used
21 APO F21DA 20 A
  • E32 Cigarette Lighter Receptacle
22 S/ROOF F22DA 5 A
  • K61 Sunroof Control Module (CF5)
23 CGM F23DA 10 A
  • K56 Serial Data Gateway Module
24 IPC F24DA 5 A
  • P16 Instrument Cluster
25 HVAC CNTR/ECC F25DA 15 A
  • K33 HVAC Control Module
26 ONSTAR F26DA 10 A
  • K73 Telematics Communication Interface Control Module (UE1)
27 BCM1 F27DA 15 A
  • K9 Body Control Module
28 RDO F28DA 15 A
  • A11 Radio
  • X83 Auxiliary Audio Input
29 - F29DA -
  • Not Used
30 - F30DA -
  • Not Used
31 - F31DA 10 A
  • K183 UHF Short Range Low Energy Remote Control Access Transceiver (BOP)
32 - F32DA 5 A
  • T19 Power Supply Transformer (KL9)
33 HLLD SW F33DA 5 A
  • S30 Headlamp Switch
34 RLAD F34DA 5 A
  • P43 Collision Alert Indicators (UEU)
35 IPC F35DA 5 A
  • P16 Instrument Cluster
36 SWC BKLT F36DA 2 A
  • X85 Steering Wheel Air Bag Coil
  • S70L Steering Wheel Controls Switch - Left
  • S70R Steering Wheel Controls Switch - Right
37 - F37DA -
  • Not Used
38 - F38DA -
  • Not Used
39 EXP PWR WNDW F39DA 30 A
  • M74D Window Motor - Driver
40 TRANSD (200/400W)/LOGISTICS F40DA 30 A
  • KR104A Battery Saver Relay 1
41 - F41DA -
  • Not Used
42 BLWR F42DA 40 A
  • M8 Blower Motor
43 FRT PWR WNDW F43DA 25 A
  • S79D Window Switch - Driver (AXG/A33)
  • S79P Window Switch - Passenger (AXG/A33)
44 REAR PWR WNDW F44DA 25 A
  • S79D Window Switch - Driver (AXG/A33)
45 - F45DA -
  • Not Used
Relays
1 - KR76A Retained Accessory Power Relay 1 -
  • F21DA Fuse (-AVJ)
  • F22DA Fuse (CF5)
  • F43DA Fuse
  • F44DA Fuse
2 - KR76B Retained Accessory Power Relay 2 -
  • F21DA Fuse (AVJ)
3 - KR74 Ignition Run Relay -
  • F17DA Fuse
  • F18DA Fuse
  • F19DA Fuse
  • F42DA Fuse
4 - KR104A Battery Saver Relay 1 -
  • F24DA Fuse
  • F25DA Fuse
  • F26DA Fuse
  • F27DA Fuse
  • F28DA Fuse
  • F31DA Fuse
