Home › Chevrolet › 2020 › Spark ACTIV, Standard Trans › Repair and Diagnosis › Quick Lookups › Electrical Component Locations › Electrical Center Identification Views › Visual Identification › Electrical Center Identification Views › X50A Fuse Block - Underhood Label

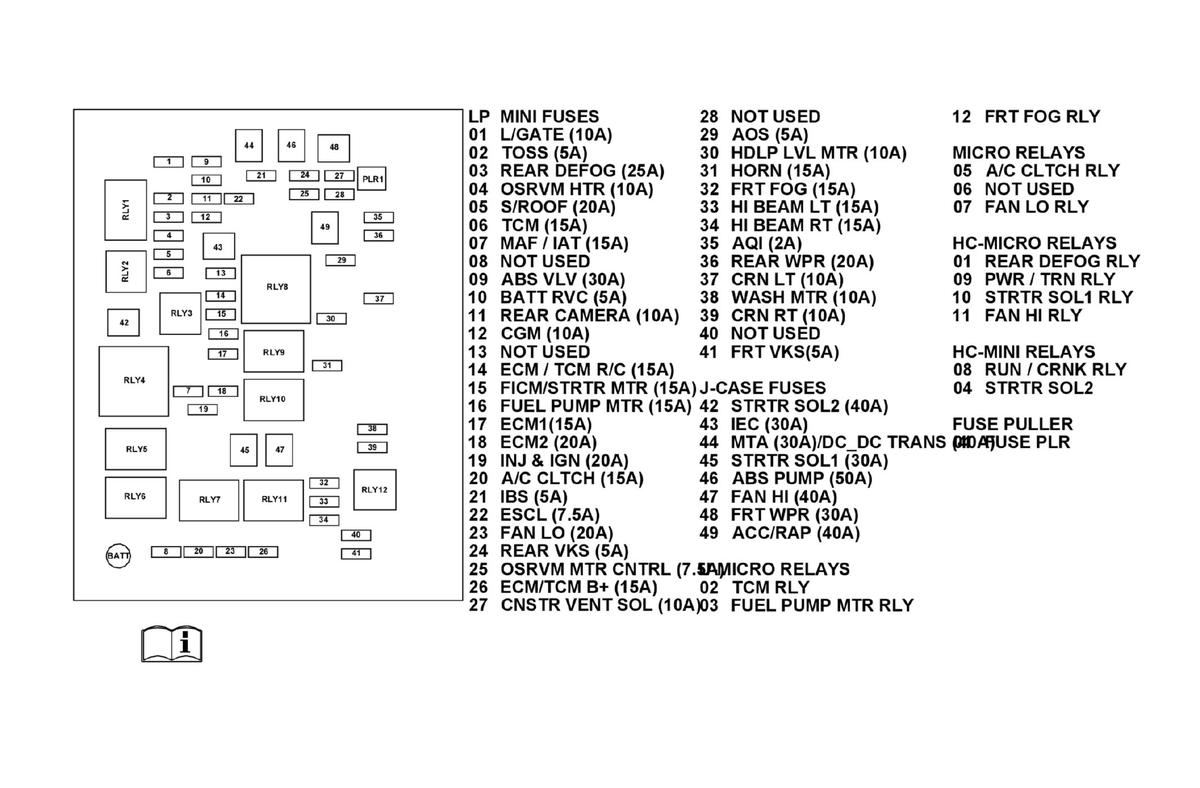

X50A Fuse Block - Underhood Label

GM5440807Courtesy of GENERAL MOTORS COMPANY
