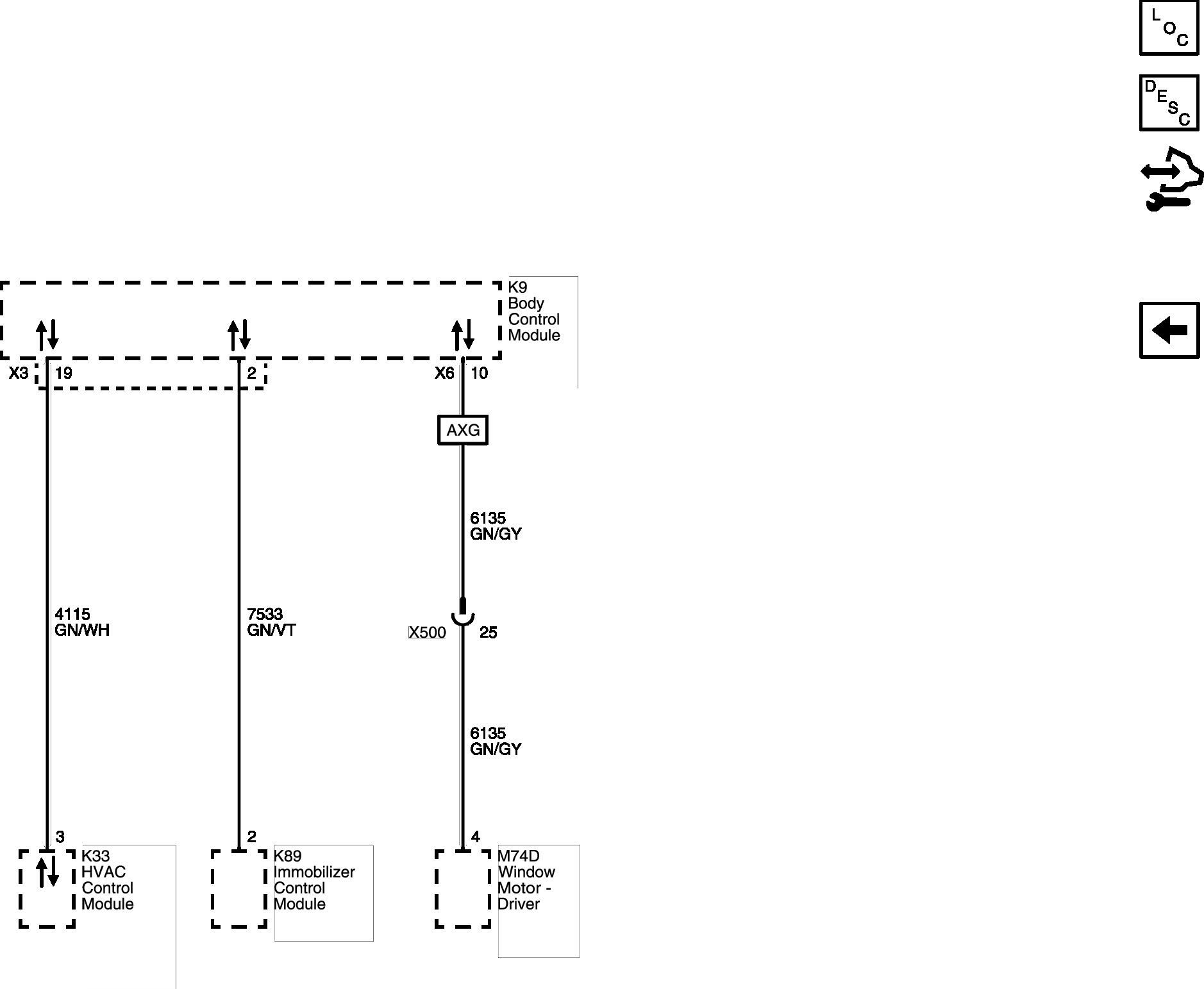

Local Interconnect Network (LIN 1 of 2)
Local Interconnect Network (LIN 1 of 2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
