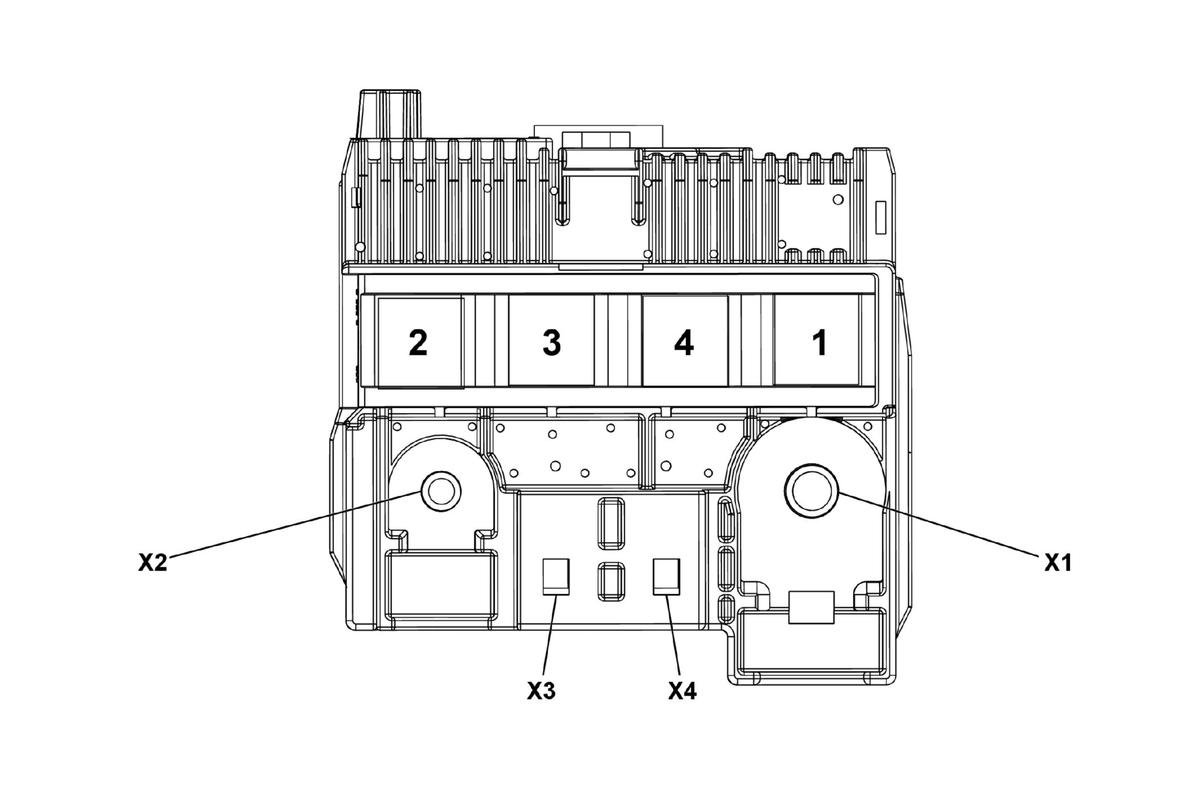

X50D Fuse Block - Battery Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1	-	F1UD	400 A	G13 Generator M64 Starter Motor
F2	-	F2UD	150 A	X50A Fuse Block - Underhood
F3	-	F3UD	100 A	X51A Fuse Block - Instrument Panel
F4	-	F4UD	80 A	K43 Power Steering Control Module
