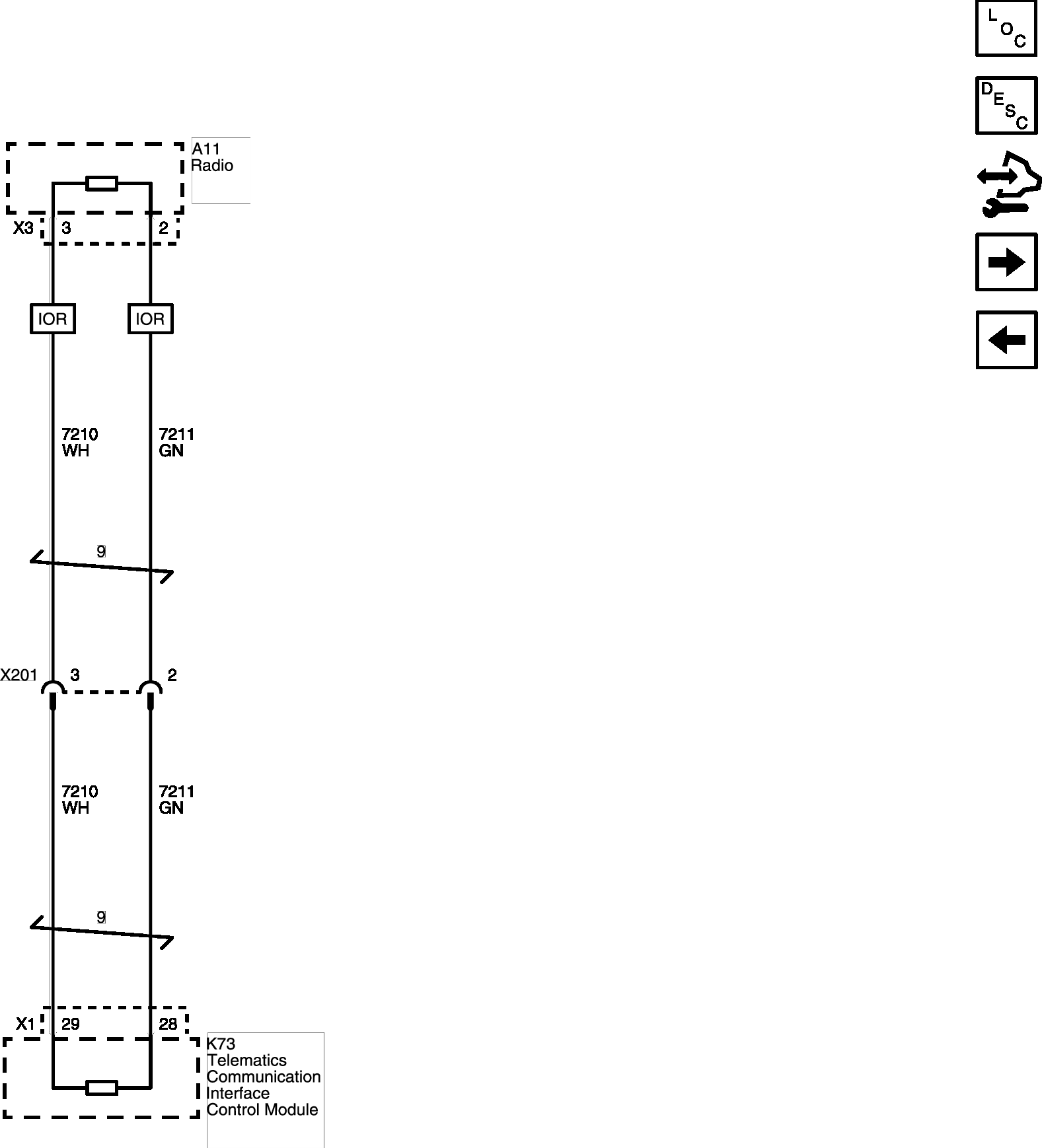

Home › Chevrolet › 2020 › Spark LS, Standard Trans › Repair and Diagnosis › Engine Performance › System › Data Communications › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Ethernet Bus
