Electrical Center Identification Views
›
Visual Identification
›
Electrical Center Identification Views
›

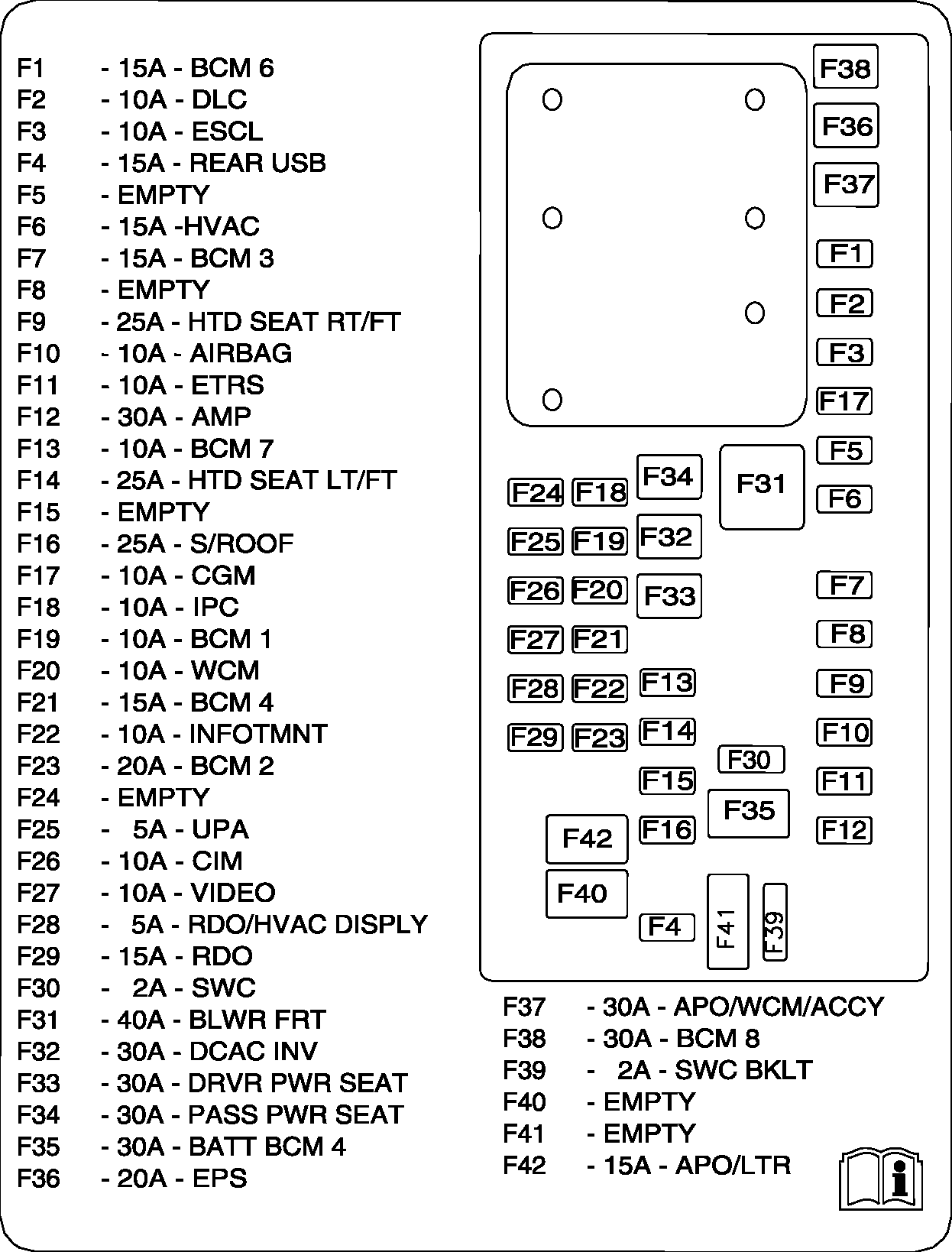

X51A Fuse Block - Instrument Panel Label
X51A Fuse Block - Instrument Panel Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
