Home › Chevrolet › 2020 › Traverse RS, FWD › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

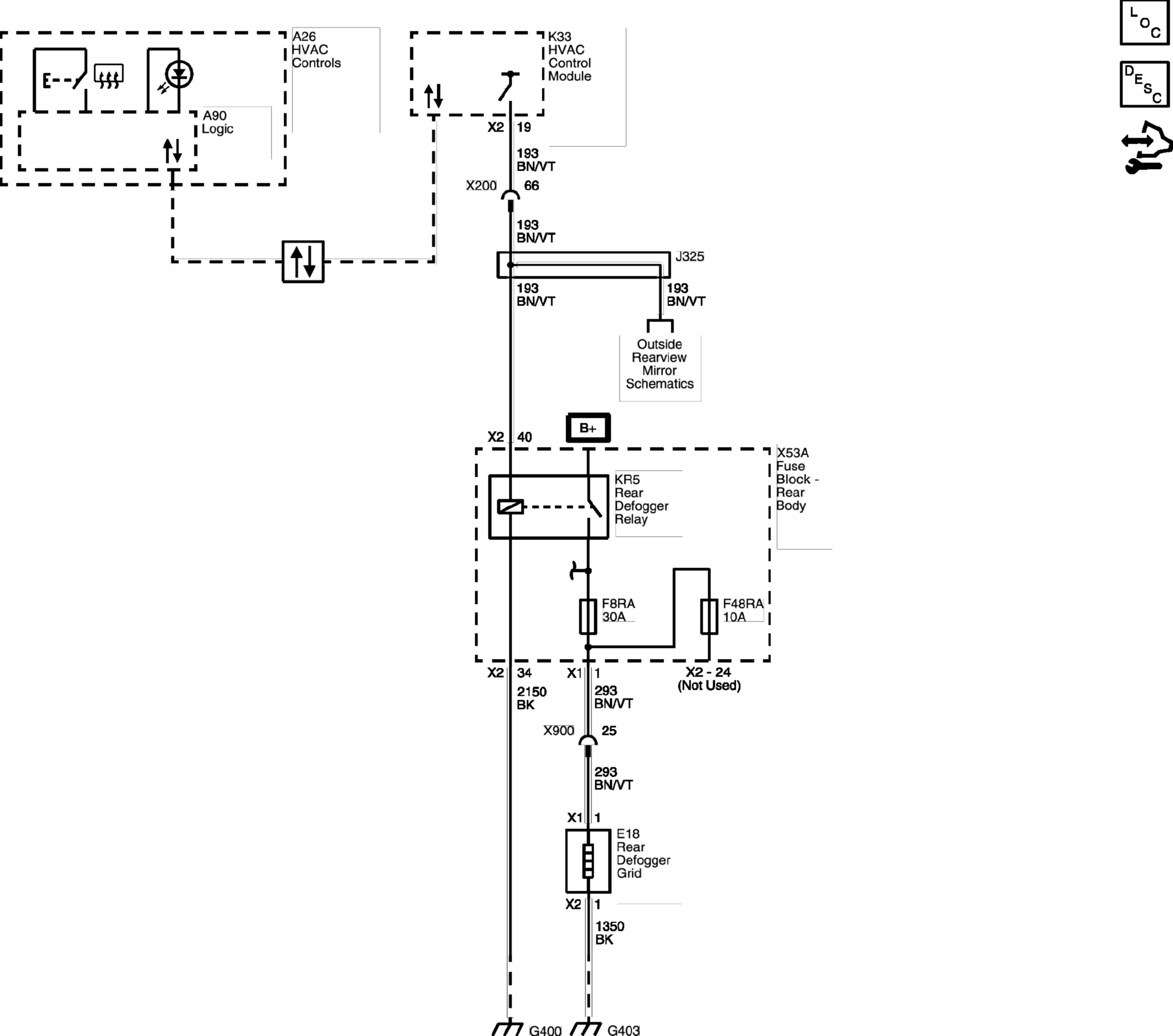

Defogger Wiring Schematics: Defogger

GM5209391Courtesy of GENERAL MOTORS COMPANY
